FLT 185420 (7800370) - Murray 42" Lawn Tractor, 18.5hp (2008) Engine Group Parts Diagram

42" Lawn Tractor, 18.5hp

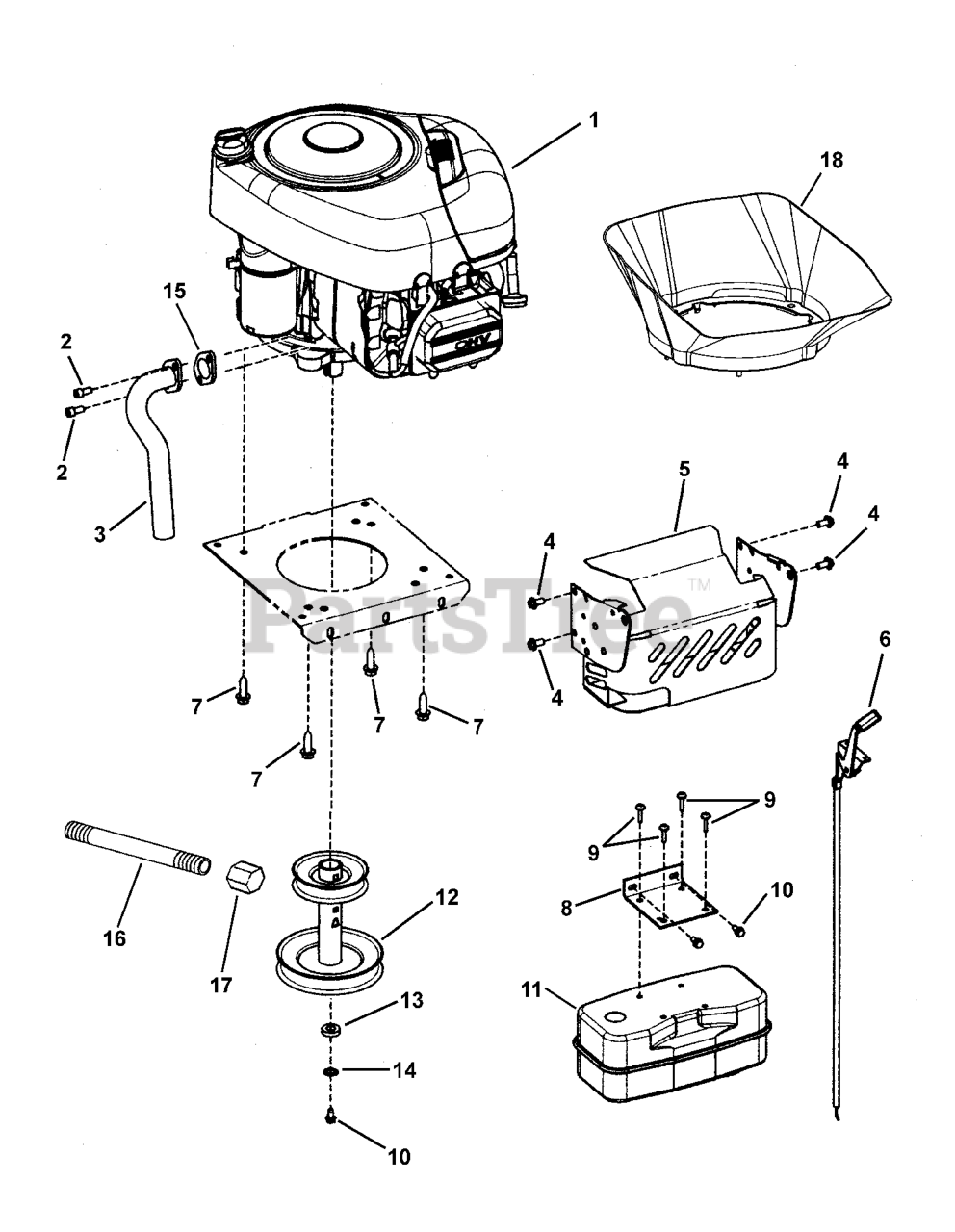

Engine Group Parts Diagram

  • Title
1

* ENGINE, 13.5 B&S OHV IC (not shown)

Note: Model/type/trim# 21B807 0126 B1 (used on LT135420C)

$

$

Not available

1

* ENGINE, 15.5 B&S OHV IC (CANADA) (not shown)

Note: Model/type/trim# 31A607 0141 B1 (used on LT155420C)

$

$

Not available

1

* ENGINE, 18.5 B&S OHV IC (shown)

Note: Model/type/trim# 31N707 0130 B1 (used on FLT185420)

$

$

Not available

2

Murray 06X103MA

SCREW - TORX HEAD

$6.49

$

Usually ships in 2-12 days

0

3

Murray 1001496MA

EXHAUST TUBE SINGLE

Note: used on 15.5 & 18.5 HP engines

$33.99

$

Usually ships in 2-12 days

0

3

Murray 1001747MA

TUBE, EXHAUST, MOD 21

Note: used on 13.5 HP engine

$34.99

$

Usually ships in 2-12 days

0

4

Murray 06X104MA

5/16-18 HER HEX HEAD

$4.49

$

Usually ships in 2-12 days

0

5

Murray 7500533ZYP

ASSY - HEAT SHIELD

$125.99

$

Usually ships in 2-12 days

0

6

Murray 092371MA

THROTTLE CONTROL

$37.99

$

Usually ships in 2-12 days

0

7

Murray 0025X7MA

HHST, 3/8-16X1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

8

Murray 690538E701MA

BRKT - MUFFLER

$11.99

$

Usually ships in 2-12 days

0

9

Murray 26X253MA

SCREW - THREAD FORMING, 0.88 X 3/16-15

$4.49

$

In Stock, only 1 left!

0

10

Murray 26X263MA

SCREW .25-20 X0.59 HEX

$4.99

$

In Stock, only 1 left!

0

11

Murray 094654MA

MUFFLER - SINGLE

$

$

Not available

12

Murray 690439MA

ASSY, STACK PULLEY

$64.99

$

In Stock, Qty 5

0

13

Murray 17X170MA

HER .470- 1.00.25 FLT

$

$

Not available

14

Murray 019X35MA

HER .43-.074 X .04 STAR

$4.99

$

In Stock, Qty 11

0

15

Murray 1731214SM

GASKET-EXHAUST B&S REG (NO CHRE) 273485

$4.99

$

Usually ships in 2-12 days

0

16

Murray 092279MA

PIPE NIPPLE .38X4.0

$8.49

$

Usually ships in 2-12 days

0

17

Murray 021651ZMA

PIPE CAP,.38 ZINC

$7.49

$

Usually ships in 2-12 days

0

18

Murray 7101960YP

PLENUM, MURRAY

$47.99

$

Usually ships in 2-12 days

0
