FL - Weed Eater Featherlite String Trimmer, Type 4 Engine Assembly Type 4 Parts Diagram

Featherlite String Trimmer, Type 4

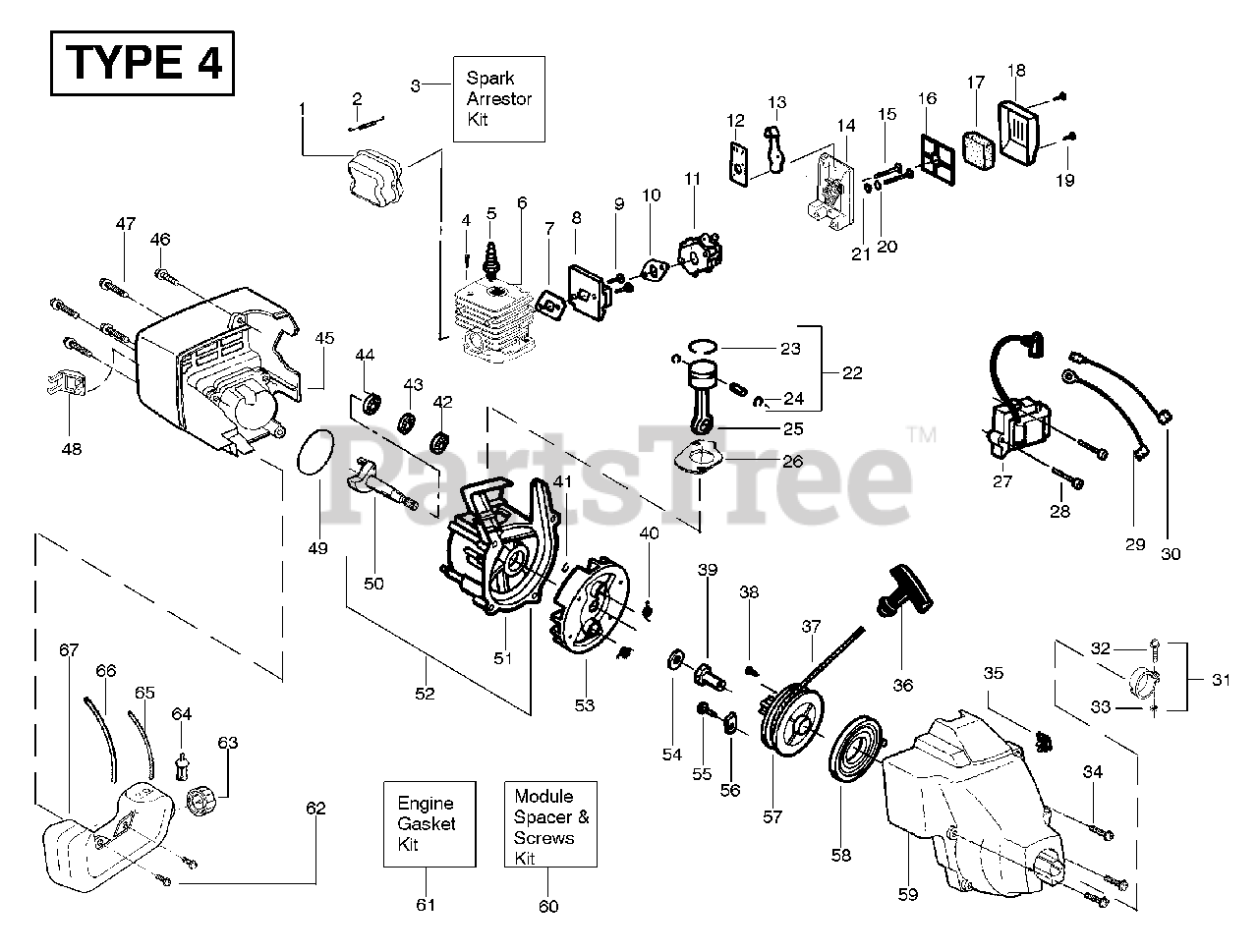

Engine Assembly Type 4 Parts Diagram

  • Title

1

Poulan 530071694

Kit - Muffler S.A.

Note: (incl. 2,3)

$14.99

$

Usually ships in 3-10 days

0

2

Poulan 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530071391

Kit-Spark Arrestor

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.49

$

In Stock, Qty 20+

0

6

Poulan 530071689

Cylinder

$

$

Not available

7

Poulan 530069616

Gasket-Cyl./Carb.(kit)

$9.99

$

Usually ships in 3-10 days

0

8

Poulan 530047659

Carb. Adaptor

$

$

Not available

9

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

10

Poulan 530069616

Gasket-Carb.(kit)

$9.99

$

Usually ships in 3-10 days

0

11

Poulan 530069754

Kit - Carb. (WA-226)

$68.99

$

Usually ships in 3-10 days

0

11

Poulan 530069971

Kit - Carb. (C1U-W7)

$68.99

$

Usually ships in 3-10 days

0

11

Poulan 530071630

Kit - Carb. (C1U-W7D)

$

$

Not available

12

Poulan 530038747

Choke Plate Mounting

$3.99

$

In Stock, only 3 left!

0

13

Poulan 530038686

Choke Shutter

$3.99

$

In Stock, Qty 7

0

14

Poulan 530052431

Air Box

$

$

Not available

15

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

16

Poulan 530036569

Plate - Filter Support

$

$

Not available

17

Poulan 530036575

Air Filter Foam

$5.99

$

In Stock, only 2 left!

0

18

Poulan 530036568

Air Filter Cover

$

$

Not available

19

Poulan 530016349

Screw

$6.49

$

In Stock, only 2 left!

0

20

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

21

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

22

Poulan 530069613

Kit - Piston

Note: (Incl. 23, 24 & Pin)p

$

$

Not available

23

Poulan 530029924

Piston Ring

$

$

Not available

24

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

25

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

26

Poulan 530069616

Gasket-Cylinder(kit)

$9.99

$

Usually ships in 3-10 days

0

27

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

28

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

29

Poulan 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

31

Poulan 530056365

Nose Cone Clamp Ass'y.

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530016381

Screw-Nose Cone

$3.49

$

Usually ships in 3-10 days

0

33

Poulan 530016382

Nut-Nose Cone

$6.99

$

Usually ships in 3-10 days

0

34

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

35

Poulan 530071356

Kit-On/Off Switch

$8.99

$

In Stock, only 1 left!

0

36

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 19

0

38

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 530038604

Drive Coupling

$5.99

$

Usually ships in 3-10 days

0

40

Poulan 530023817

Starter Dog Spring

$6.49

$

In Stock, Qty 5

0

41

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

43

Poulan 530071615

Kit-C'case Seal

$7.49

$

Usually ships in 3-10 days

0

44

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 530056547

Shroud

$10.99

$

Usually ships in 3-10 days

0

46

Poulan 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

47

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

48

Poulan 530054536

Guard-Muffler

$

$

Not available

49

Poulan 530069616

O-Ring-C'case(kit)

$9.99

$

Usually ships in 3-10 days

0

50

Poulan 530054753

Assy-Crankshaft

$36.99

$

Usually ships in 3-10 days

0

51

Poulan 530071627

Kit-Crankcase Ass'y.

Note: (Incl. 42-44)

$

$

Not available

52

Poulan 530071624

C'case & C'shaft Assy.

Note: (Incl. 41,50,51)

$

$

Not available

53

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

54

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

56

Poulan 530027523

Retainer-Can

$7.49

$

In Stock, only 2 left!

0

57

Poulan 530069400

Starter Pulley Kit
(Superseded to 530071786)

Note: (Incl. 38)

$11.99

$

In Stock, Qty 7

0

58

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

59

Poulan 530071667

Kit-Fan Hsg/Shroud

$

$

Not available

60

Poulan 530071731

Kit-Module Spacer & Screws

$7.49

$

In Stock, only 1 left!

0

61

Poulan 530069616

Kit-Engine Gasket

Note: (Incl. 7,10,26,49)

$9.99

$

Usually ships in 3-10 days

0

62

Poulan 530016379

Retainer

$4.99

$

Usually ships in 3-10 days

0

63

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

64

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 19

0

65

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

66

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

67

Poulan 530049379

Assy-Fuel Tank
(Superseded to 545103802)

Note: (Incl. cap, fuel lines, filter)

$18.99

$

Usually ships in 3-10 days

0
