FL - Weed Eater Featherlite String Trimmer, Type 3 Engine Assembly Type 1 - 3 Parts Diagram

Featherlite String Trimmer, Type 3

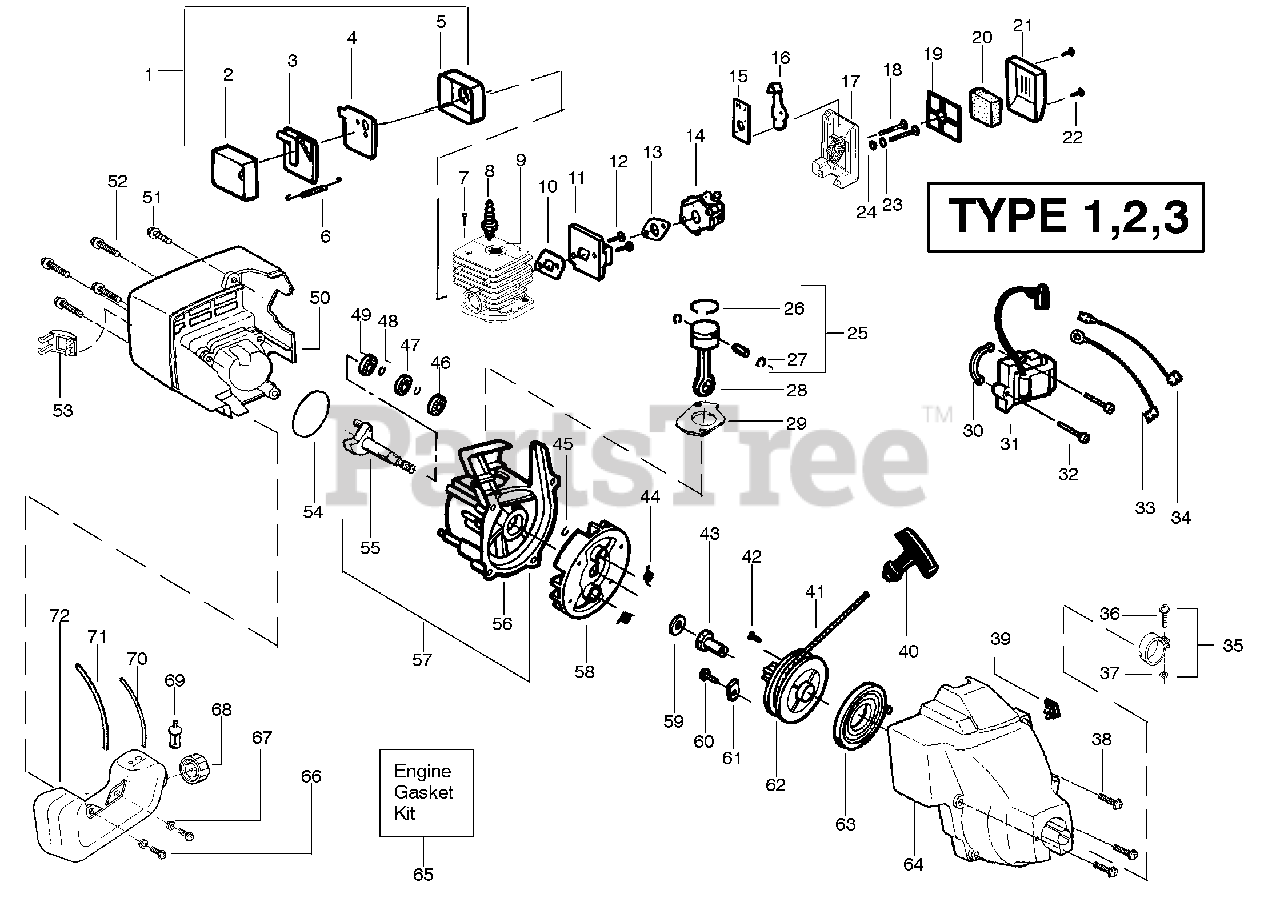

Engine Assembly Type 1 - 3 Parts Diagram

  • Title

1

Poulan 530069389

Kit - Muffler S.A.
(Superseded to 530069660)

Note: (incl. 2-6)

$15.99

$

Usually ships in 3-10 days

0

2

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

3

Poulan 530038602

Muffler Baffle

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 530036579

Muffle Baffle-First

$2.99

$

Usually ships in 3-10 days

0

5

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530016197

Muffler Spring

$4.99

$

In Stock, Qty 5

0

7

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

8

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

9

Poulan 530069687

Kit - Cylinder

$

$

Not available

10

Poulan 530069616

Gasket-Cyl./Carb.(kit)

$9.99

$

Usually ships in 3-10 days

0

11

Poulan 530036646

Carb. Adaptor Type 1

$2.49

$

In Stock, only 1 left!

0

11

Poulan 530047659

Carb. Adaptor Type 2

$

$

Not available

12

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

13

Poulan 530069616

Gasket-Carb.(kit)

$9.99

$

Usually ships in 3-10 days

0

14

Poulan 530069754

Kit - Carburetor Ass'y (Wa-226)

Note: (Incl. Limiter Cap)

$68.99

$

Usually ships in 3-10 days

0

14

Poulan 530069971

Kit - Carburetor Ass'y (C1U-W7)

Note: (Incl. Limiter Cap)

$68.99

$

Usually ships in 3-10 days

0

15

Poulan 530038747

Choke Plate Mounting

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530038686

Choke Shutter

$3.99

$

In Stock, Qty 7

0

17

Poulan 530052431

Air Box

$

$

Not available

18

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

19

Poulan 530036569

Plate - Filter Support

$

$

Not available

20

Poulan 530036575

Air Filter Foam

$5.99

$

In Stock, only 2 left!

0

21

Poulan 530036568

Air Filter Cover

$

$

Not available

22

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

23

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

24

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

25

Poulan 530069613

Kit - Piston

Note: (Incl. 26, 27 & Pin)

$

$

Not available

26

Poulan 530029924

Piston Ring

$

$

Not available

27

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

28

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

29

Poulan 530069616

Gasket-Cylinder(kit)

$9.99

$

Usually ships in 3-10 days

0

30

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

31

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

32

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

34

Poulan 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

35

Poulan 530056365

Nose Cone Clamp Ass'y.

Note: (Incls. 36 & 37)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530016381

Screw-Nose Cone

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 530016382

Nut-Nose Cone

$6.99

$

Usually ships in 3-10 days

0

38

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

39

Poulan 530071356

Kit-On/Off Switch

$8.99

$

In Stock, only 1 left!

0

40

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 17

0

42

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 530038604

Drive Coupling

$5.99

$

Usually ships in 3-10 days

0

44

Poulan 530016191

Starter Dog Spring

$

$

Not available

45

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

46

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

47

Poulan 530019179

Seal-C'case

$

$

Not available

48

Poulan 530015945

Ring-C'case Ret.

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

50

Poulan 530069685

Assy.-Fan Hsg/Shroud

$

$

Not available

51

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

52

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

53

Poulan 530054536

Guard-Muffler

$

$

Not available

54

O-Ring-C'case(kit)

Note: Service Reference

$

$

Not available

55

Poulan 530014532

Assy-Crankshaft

$

$

Not available

56

Poulan 530014861

Crankcase Ass'y.

Note: (Incl. 46-49)

$

$

Not available

57

Poulan 530014729

C'case & C'shaft Assy.

Note: (Incl. 45,55,56)

$

$

Not available

58

Poulan 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

59

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

61

Poulan 530027523

Retainer-Can

$7.49

$

In Stock, only 2 left!

0

62

Poulan 530069400

Starter Pulley Kit
(Superseded to 530071786)

Note: (Incl. 42)

$11.99

$

In Stock, Qty 7

0

63

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

64

Poulan 530069685

Kit-Fan Hsg/Shroud

$

$

Not available

65

Poulan 530069616

Kit-Engine Gasket

Note: (Incl. 10,13,29,54)

$9.99

$

Usually ships in 3-10 days

0

66

Poulan 530015882

Screw

$

$

Not available

67

Poulan 530016131

Washer

$3.99

$

In Stock, only 1 left!

0

68

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

69

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

70

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

71

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

72

Poulan 530049296

Assy-Fuel Tank
(Superseded to 545103802)

Note: (Incl. cap, fuel lines, filter)

$18.99

$

Usually ships in 3-10 days

0
