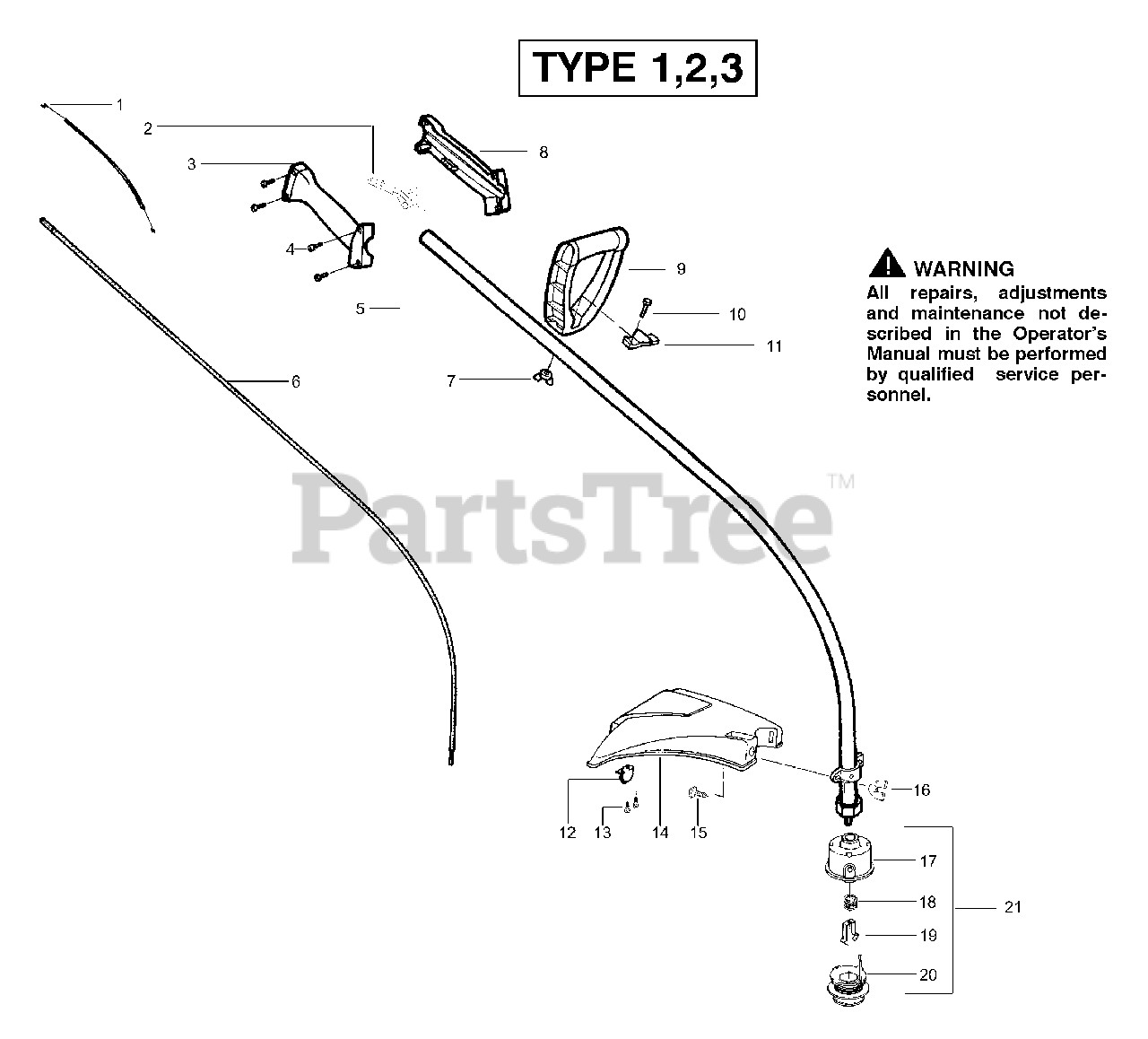

FL LE - Weed Eater Featherlite String Trimmer, Type 1 Handle & Shaft Assembly Parts Diagram

Featherlite String Trimmer, Type 1

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530071548

Assy-Throttle Cable

$

$

Not available

2

Poulan 530038682

Trigger - Throttle

$3.49

$

In Stock, Qty 5

0

3

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

In Stock, only 1 left!

0

4

Poulan 530016349

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530071311

Drive Shaft Hsg. Ass'y

$

$

Not available

6

Poulan 530095242

Drive Shaft - Flex

$

$

Not available

7

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

8

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530038708

Assist Handle

$

$

Not available

10

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530094742

Clamp-Handle Assist

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530052287

Line Limiter

$4.99

$

In Stock, only 2 left!

0

13

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530069686

Shield Kit Ass'y.

Note: (Incl. 12 & 13)

$

$

Not available

15

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

16

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

17

Poulan 530095770

Assy-Hub

$20.99

$

Usually ships in 3-10 days

0

18

Poulan 530401958

Spring-Return

$4.99

$

In Stock, Qty 6

0

19

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

20

Poulan 952711594

Accy-Wound Spool

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 952711593

Accy-Cutting Head

$

$

Not available

Poulan 530163364

Operator's Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530054864

Decal-Starting Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
