FL 26 - Weed Eater Featherlite String Trimmer, Type 1 (2009-03) Handle & Controls - Type 1 Parts Diagram

Featherlite String Trimmer, Type 1

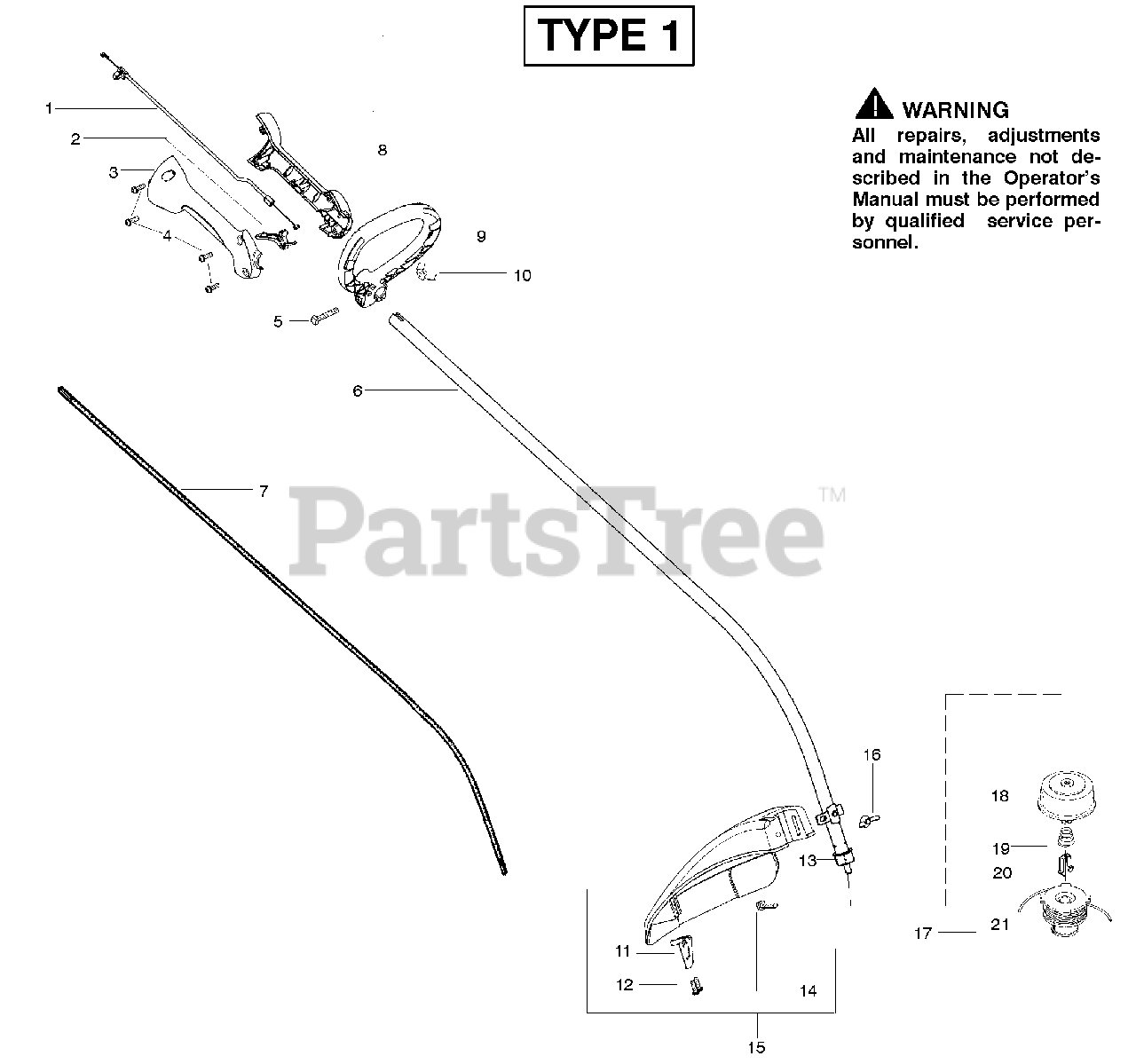

Handle & Controls - Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530057991

Assy-Throttle Cable

$11.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 530058000

Trigger

$6.49

$

In Stock, Qty 10

0

3

Electrolux/AYP 530057582

Throttle Hsg. (Right)

$10.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530015880

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

5

Electrolux/AYP 530015821

Bolt-Handle/Shield

$5.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530071769

Assy-Drive Shaft Hsg.
(Superseded to 581494909)

$

$

Not available

7

Electrolux/AYP 530095803

Shaft- Flex

$9.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 530057581

Throttle Hsg. (Left)

$11.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530057587

Handle-Assist
(Superseded to 530071747)

$

$

Not available

10

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530052286

Line Limiter

$

$

Not available

12

Electrolux/AYP 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530095563

Dust Cup

$14.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 530071795

Kit-Shield Assy

Note: (Incl. 11,12,14,16)

$18.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 952711621

Accy-TNG VI Cutting Head

Note: (Incl. 18-21)

$

$

Not available

18

Electrolux/AYP 530095776

Assy-Hub
(Superseded to 530071306)

$

$

Not available

19

Electrolux/AYP 530053241

Spring-Compression

$

$

Not available

20

Electrolux/AYP 530401957

Clip-Retainer-Head

$4.99

$

In Stock, only 4 left!

0

21

Electrolux/AYP 952711616

Accy- Spool w/Line

$

$

Not available

21

Electrolux/AYP 545186736

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
