FL 25 - Weed Eater Featherlite String Trimmer, Type 2 Handle & Shaft Assembly Parts Diagram

Featherlite String Trimmer, Type 2

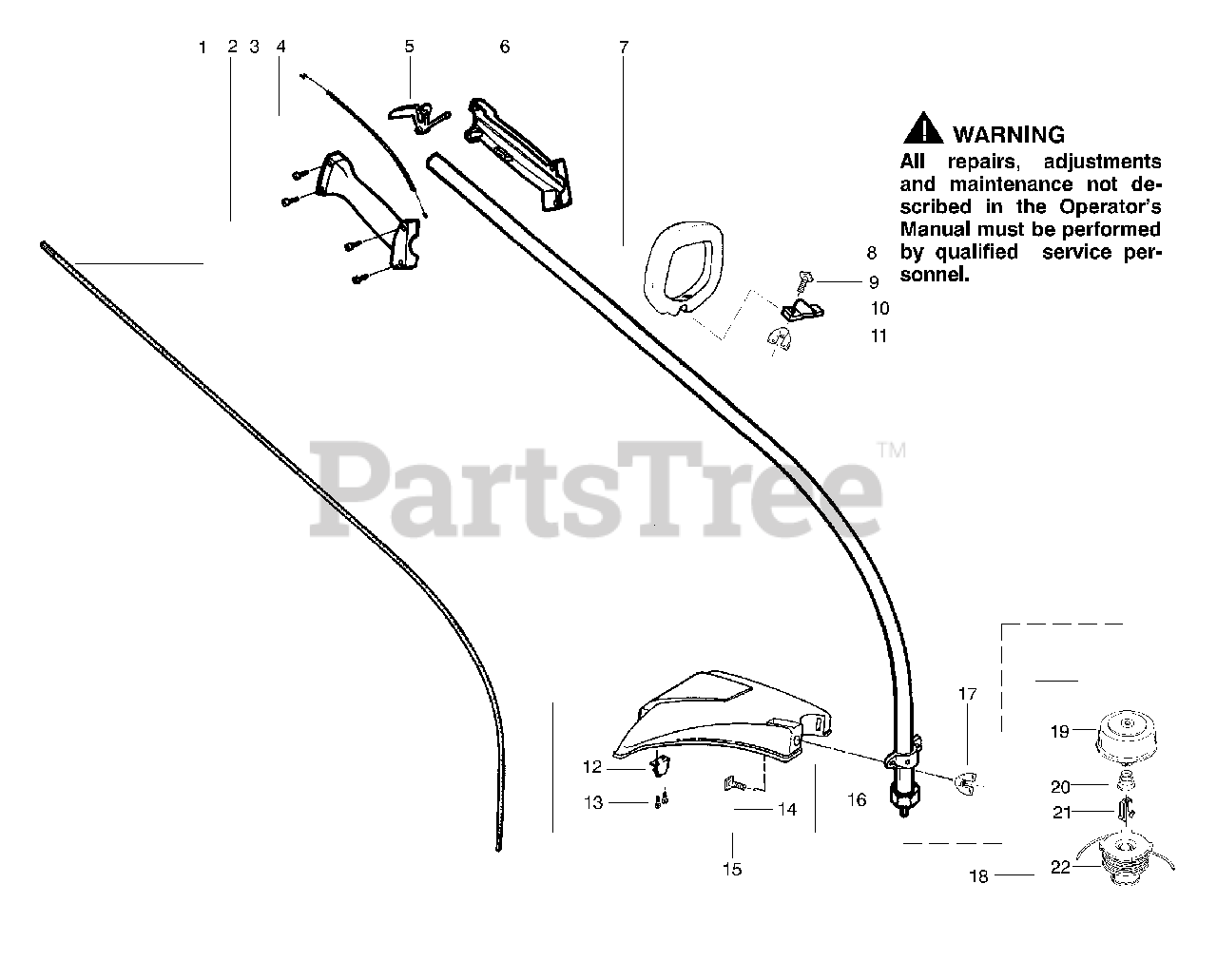

Handle & Shaft Assembly Parts Diagram

  • Title
1

Poulan 530095803

Shaft-Flex

$9.99

$

In Stock, only 1 left!

0

2

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

In Stock, only 1 left!

0

3

Poulan 530016349

Screw-Throttle Hsg.

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530071548

Assy-Throttle Cable

$

$

Not available

5

$3.49

$

In Stock, Qty 5

0

6

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530071315

Assy-Drive Shaft Hsg.

$

$

Not available

8

Poulan 530038584

Handle-Assist

$

$

Not available

9

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530038599

Clamp-Handle

$2.49

$

In Stock, only 1 left!

0

11

Poulan 530016118

Wingnut-Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

12

Poulan 530052287

Line Limiter

$4.99

$

In Stock, only 2 left!

0

13

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530069686

Kit-Shield Assy

Note: (Incl. 12,13,14,17)

$

$

Not available

16

Poulan 530095563

Dust Cup

$14.99

$

Usually ships in 3-10 days

0

17

Poulan 530016118

Wingnut-Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

18

Poulan 952711621

Accy-TNG VI Cutting Head

Note: (Incl. 19-22)

$

$

Not available

19

Poulan 530095776

Assy-Hub
(Superseded to 530071306)

$

$

Not available

20

Poulan 530053241

Spring-Compression

$

$

Not available

21

Poulan 530401957

Clip-Retainer- Head

$4.99

$

In Stock, only 4 left!

0

22

Poulan 952711616

Accy-Spool w/Line

$

$

Not available

Poulan 530163512

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530054864

Decal-Start Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
