FL 25 LE - Weed Eater Featherlite String Trimmer, Type 1 Handle & Shaft Assembly Parts Diagram

Featherlite String Trimmer, Type 1

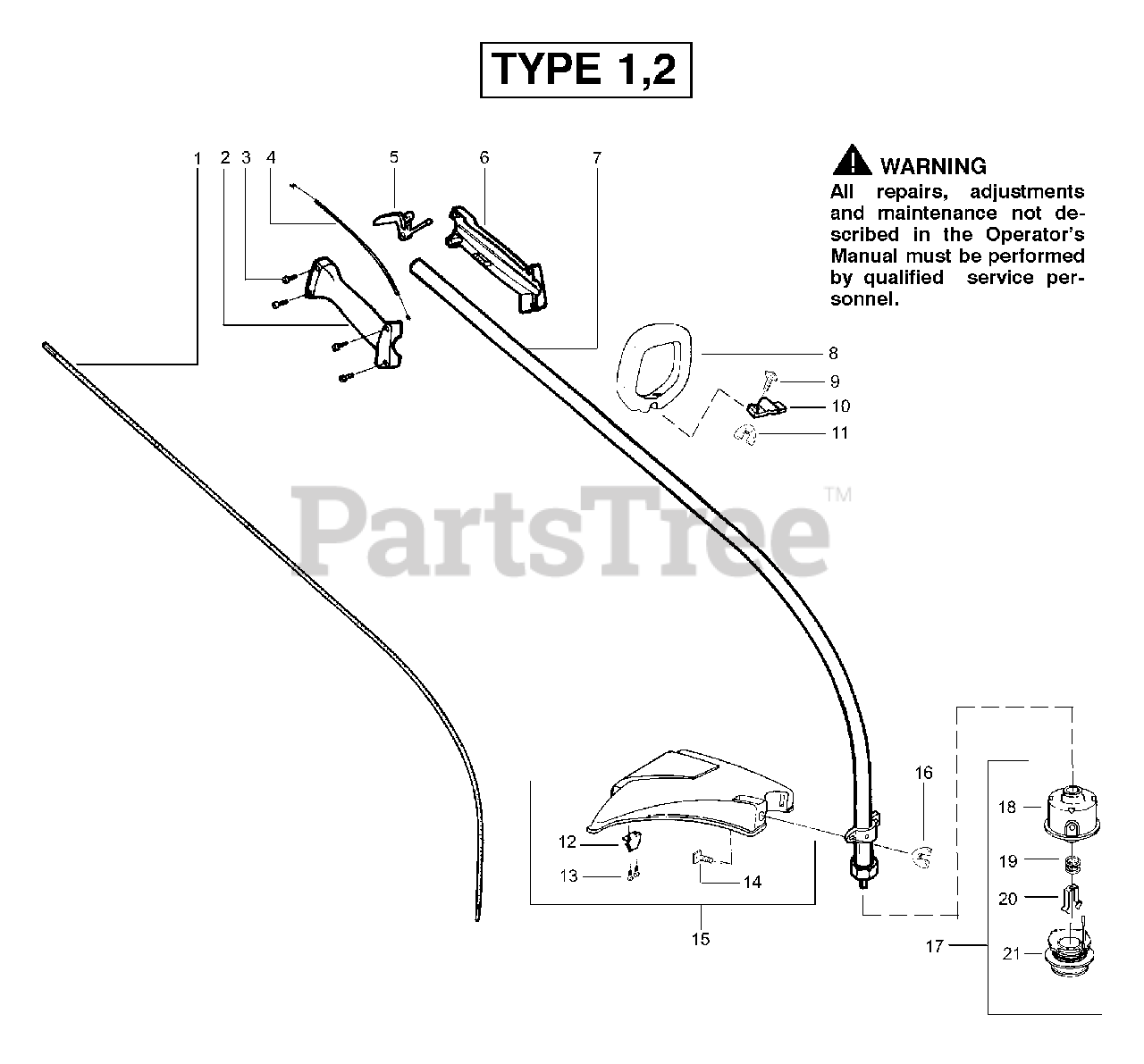

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530095803

Shaft-Flex

$9.99

$

In Stock, only 1 left!

0

2

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

In Stock, only 1 left!

0

3

Poulan 530016349

Screw-Throttle Hsg.

$6.49

$

In Stock, only 1 left!

0

4

Poulan 530071548

Assy-Throttle Cable

$

$

Not available

5

Poulan 530038682

Trigger

$3.49

$

In Stock, Qty 5

0

6

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530071315

Assy-Drive Shaft Hsg.

$

$

Not available

8

Poulan 530038584

Handle-Assist

$

$

Not available

9

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530038599

Clamp-Handle

$2.49

$

In Stock, only 2 left!

0

11

Poulan 530016118

Wingnut-Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015886

Screw-Line Limiter

$6.49

$

In Stock, only 3 left!

0

14

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530069759

Kit-Shield Assy

Note: (Incl. 12,13,14,16)

$21.99

$

Usually ships in 3-10 days

0

16

Poulan 530016118

Wingnut- Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

17

Poulan 952711593

Accy-W/E TNG 5 Cutting Head

Note: (Incl. 18-21)

$

$

Not available

18

Poulan 530095770

Assy-Hub

$20.99

$

Usually ships in 3-10 days

0

19

Poulan 530401958

Spring- Compression

$4.99

$

In Stock, Qty 6

0

20

Poulan 530401957

Clip-Retainer- Head

$4.99

$

In Stock, only 4 left!

0

21

Poulan 952711594

Accy- W/E Spool w/Line

$6.49

$

Usually ships in 3-10 days

0

Poulan 530163513

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530054864

Decal-Start Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530055350

Decal- Shaft Warning

Note: Not Shown

$

$

Not available
