FL 25 (952715669) - Weed Eater Featherlite String Trimmer (2010-03) SHAFT HANDLE Parts Diagram

Featherlite String Trimmer

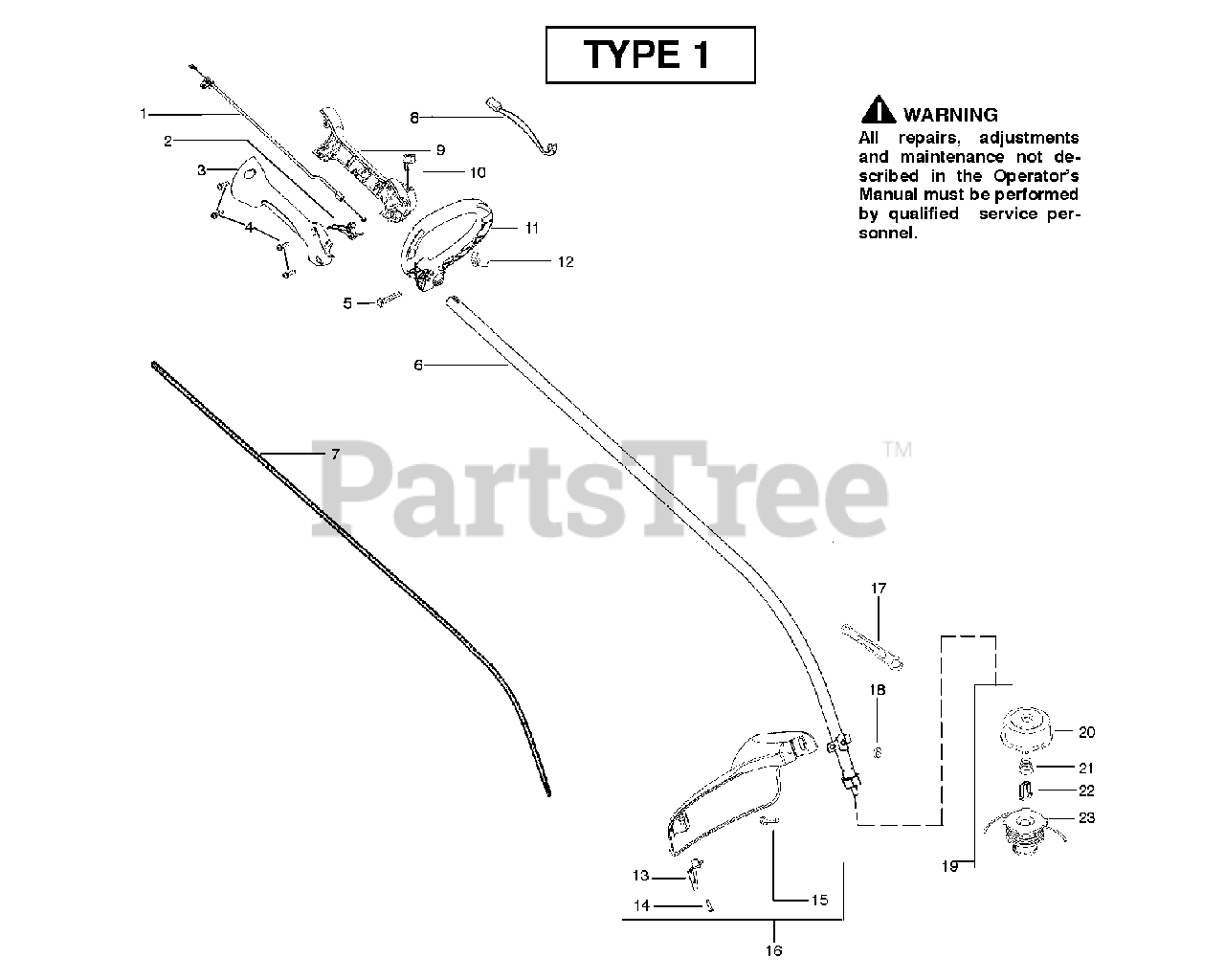

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 530057991

ASSY THROTTLE CABLE

$11.99

$

In Stock, only 2 left!

0

2

Poulan 530058000

TRIGGER

$6.49

$

In Stock, Qty 9

0

3

Poulan 530057582

HSG THROTTLE RH

$10.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

BOLT\-1/4-20X1-1/2

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 530071961

DRIVE SHAFT ASSY
(Superseded to 581494909)

$

$

Not available

7

Poulan 530096275

DRIVE SHAFT

$14.99

$

Usually ships in 3-10 days

0

8

Poulan 530054183

WIRE ASSY

$8.99

$

In Stock, only 1 left!

0

9

Poulan 530059952

HANDLE

$

$

Not available

10

Poulan 530069572

SWITCH

$9.49

$

In Stock, only 3 left!

0

11

Poulan 530058580

ASSY ASSIST HANDLE
(Superseded to 530071747)

$

$

Not available

12

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

13

Poulan 530052287

CUTTER

$4.99

$

In Stock, only 2 left!

0

14

Poulan 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

16

Poulan 530071972

KIT

$27.99

$

Usually ships in 3-10 days

0

17

Poulan 530056401

WRENCH

$13.99

$

Usually ships in 3-10 days

0

18

Poulan 530015197

NUT

$6.49

$

In Stock, only 4 left!

0

19

Poulan 530095846

C/HEAD

$25.99

$

Usually ships in 3-10 days

0

20

Poulan 530095776

TNG VI HUB ASSY 5/16" RH
(Superseded to 530071306)

$

$

Not available

21

Poulan 530053241

SPRING

$

$

Not available

22

Poulan 530401957

RETAINER

$4.99

$

In Stock, only 4 left!

0

23

Poulan 530095845

WOUND SPOOL ASSY .080 x 2

$

$

Not available

Poulan 545140977

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

Poulan 530150312

DECAL DECAL---SHAFT WARNING

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
