FL 25 (952715669) - Weed Eater Featherlite String Trimmer (2010-03) ENGINE Parts Diagram

Featherlite String Trimmer

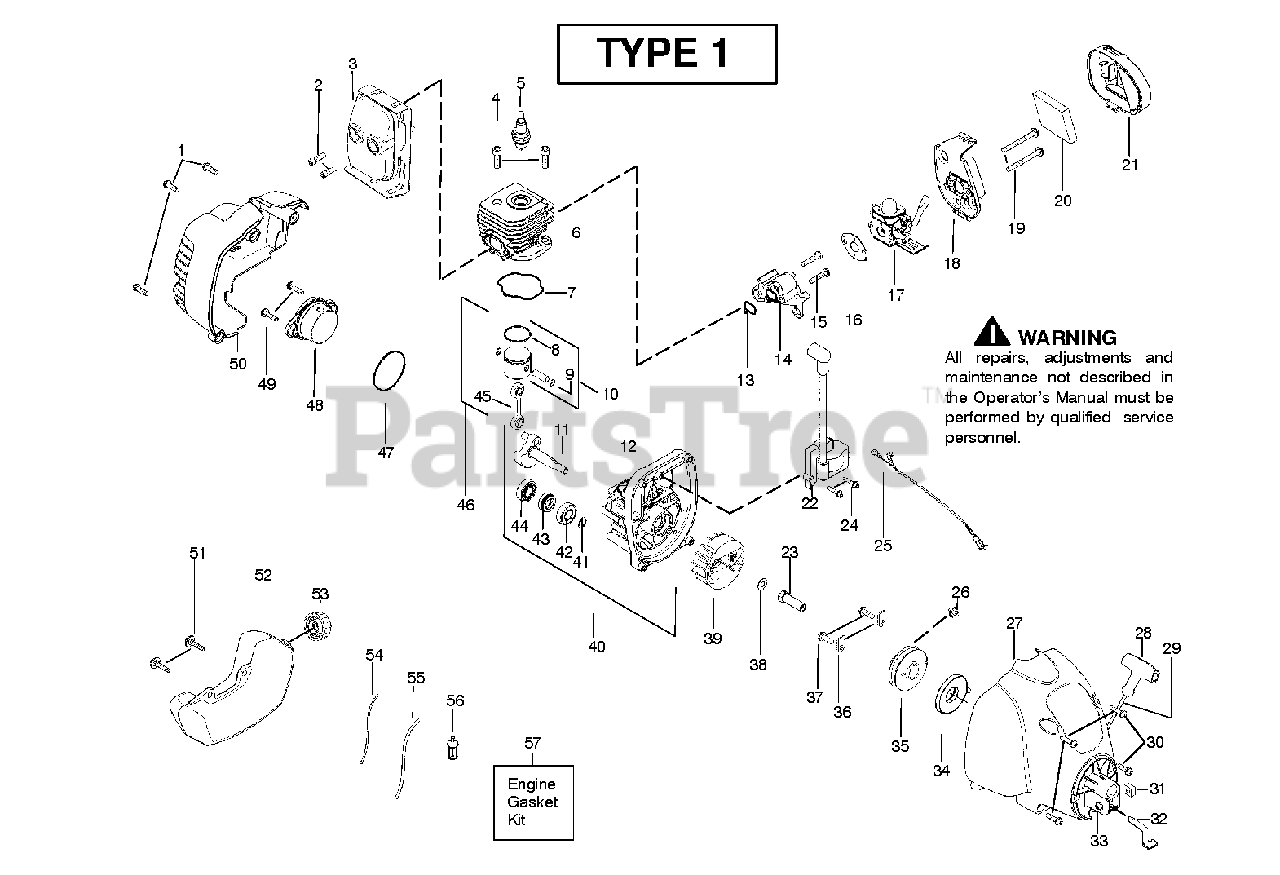

ENGINE Parts Diagram

  • Title

1

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

2

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 7

0

3

Poulan 530059825

ASSEMBLY

$

$

Not available

4

Poulan 530015953

SCREW

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

6

Poulan 530012541

CYLINDER MACHINED 25CC LO

$31.99

$

In Stock, only 1 left!

0

7

Poulan 530071750

KIT GASKET 25CC

$

$

Not available

8

Poulan 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530071833

PISTON KIT

$37.99

$

In Stock, only 1 left!

0

11

Poulan 530057829

ASSY CRANKSHAFT

$43.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

ASSY CRANKCASE

$37.99

$

Usually ships in 3-10 days

0

13

Poulan 530071750

KIT GASKET 25CC

$

$

Not available

14

Poulan 530057547

ADAPTOR CARBURETOR

$10.99

$

Usually ships in 3-10 days

0

15

Poulan 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530071750

KIT GASKET 25CC

$

$

Not available

17

Poulan TBD

$

$

Not available

17

Poulan 530071752

KIT CARB ASSY #C1U-W18
(Superseded to 530071822)

$43.99

$

In Stock, only 1 left!

0

17

Poulan 545081808

KIT CARB ASSY WT 669
(Superseded to 530071822)

$43.99

$

In Stock, only 1 left!

0

18

Poulan 530057585

BASE AIRBOX
(Superseded to 580731001)

$3.99

$

In Stock, only 1 left!

0

19

Poulan 530016429

SCREW

$6.49

$

In Stock, only 4 left!

0

20

Poulan 530057781

FOAM AIR FILTER

$5.99

$

In Stock, only 1 left!

0

21

Poulan 530057584

COVER AIR BOX

$

$

Not available

22

Poulan 545024901

(Superseded to 578287001)

$31.99

$

In Stock, only 2 left!

0

23

Poulan 530038604

DRIVE-COUPLING

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 530016357

SCREW

$6.49

$

In Stock, only 4 left!

0

25

Poulan 530049018

CABLE ASSY

$9.99

$

Usually ships in 3-10 days

0

26

Poulan 530016392

SCREW SEMS TOOTHED WASHER

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 545010608

COVER

$20.99

$

Usually ships in 3-10 days

0

28

Poulan 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530071767

KIT ROPE

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

31

Poulan 530016124

NUT SQUARE

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530057588

CLIP

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530016430

SCREW

$4.99

$

Usually ships in 3-10 days

0

34

Poulan 530042085

STARTER SPRING
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

35

Poulan 530071786

STARTER PULLEY KIT

$11.99

$

In Stock, Qty 7

0

36

Poulan 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

37

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

38

Poulan 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 545005101

ASSY FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

40

Poulan 530071768

ASSEMBLY

$24.99

$

In Stock, only 1 left!

0

41

Poulan 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

43

Poulan 530019264

SEAL

$7.49

$

In Stock, only 1 left!

0

44

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

45

Poulan 530069945

KIT-CONN ROD ASSY
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

46

Poulan 530071785

PISTON KIT

$47.99

$

In Stock, only 1 left!

0

47

Poulan 530071750

KIT GASKET 25CC

$

$

Not available

48

Poulan 530057954

ASSY REAR PLUG

$5.99

$

Usually ships in 3-10 days

0

49

Poulan 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

50

Poulan 545011004

CYLINDER COVER

$4.99

$

In Stock, only 4 left!

0

51

Poulan 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 530058712

ASSY FUEL TANK
(Superseded to 545103702)

$24.99

$

Usually ships in 3-10 days

0

53

Poulan 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 15

0

54

Poulan 530069247

KIT-LINE

$7.99

$

In Stock, Qty 20+

0

55

Poulan 530069216

LINE KIT

$11.99

$

In Stock, Qty 20+

0

56

Poulan 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 19

0

57

Poulan 530071750

KIT GASKET 25CC

$

$

Not available

Poulan 530058709

PURGE BULB ZAMA

Note: NOT SHOWN

$7.99

$

In Stock, only 1 left!

0

Poulan 530057827

LEVER CHOKE

Note: NOT SHOWN

$9.99

$

In Stock, only 3 left!

0

Poulan 530058662

CHOKE LEVER

Note: NOT SHOWN

$6.49

$

Usually ships in 3-10 days

0
