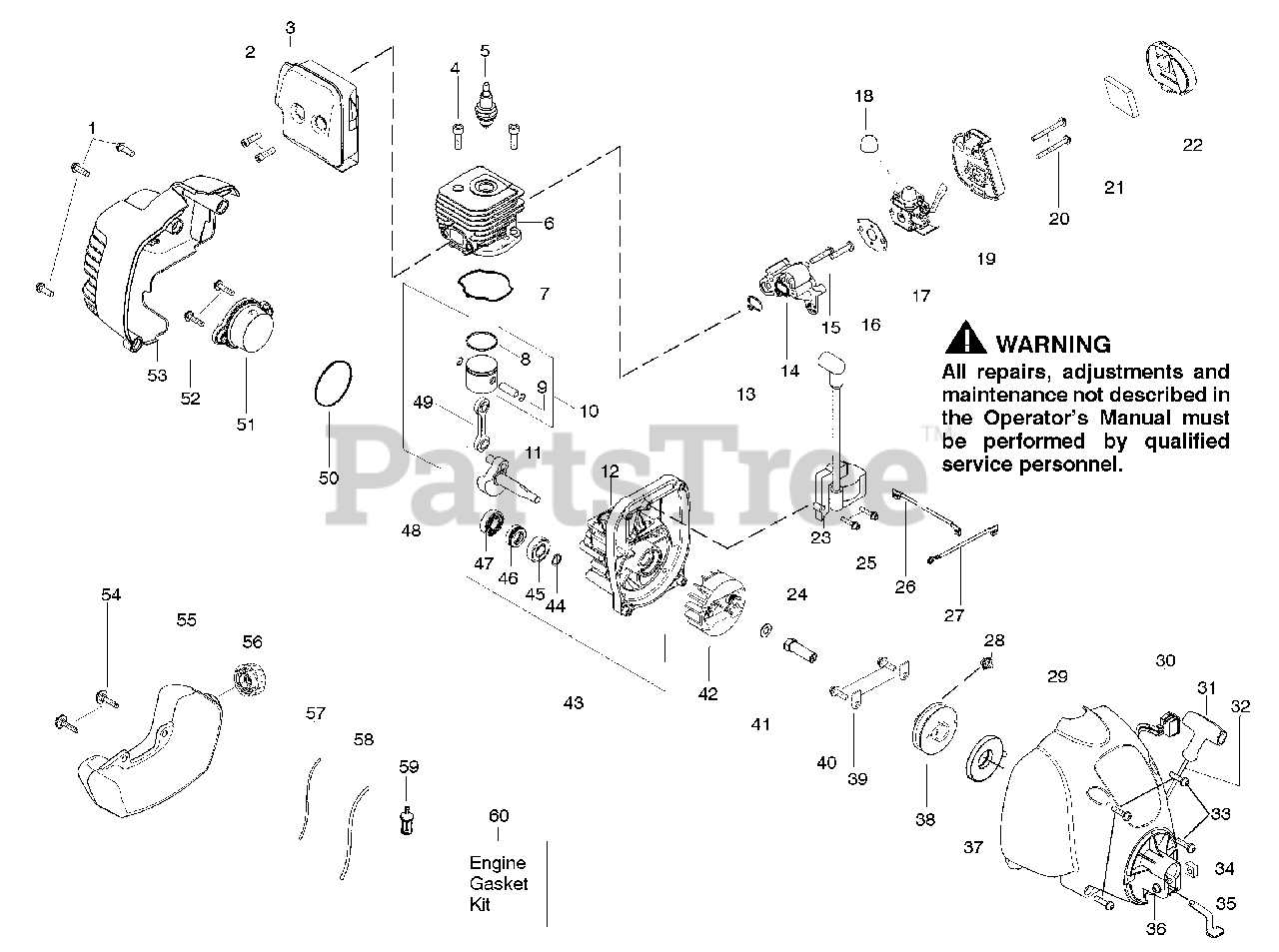

FL 23 - Weed Eater Featherlite String Trimmer (2008-03) Engine Parts Diagram

Featherlite String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Electrolux/AYP 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

3

Electrolux/AYP 530057863

Assy-Muffler/Shield
(Superseded to 545227901)

Note: (Incl. 2)

$43.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 952030249

Spark Plug (RCJ 6Y)

$4.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530012541

Cylinder

$31.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 530071750

Seal-Cylinder (kit)

$

$

Not available

8

Electrolux/AYP 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 8, 9)

$37.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530057829

Assy-Crankshaft

$43.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530012582

Assy-Crankcase

Note: (Incl. 45,46,47)

$37.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530071750

Seal-Cyl/Carb.(kit)

$

$

Not available

14

Electrolux/AYP 530057547

Adapter-Carb.

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530071750

Gasket-Carb. (kit)

$

$

Not available

17

Electrolux/AYP 530071752

Kit-Carb Zama (C1U-W18)
(Superseded to 530071822)

$43.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 545081808

Kit-Carb Walbro ( WT-669)
(Superseded to 530071822)

$43.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530058709

Bulb - Purge Zama

$7.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530035497

Bulb - Walbro

$9.49

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530057585

Air Box
(Superseded to 580731001)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530016429

Screw

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 530057781

Foam-Air Filter

$5.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530057584

Cover-Air Box

$

$

Not available

23

Electrolux/AYP 545024901

Ignition Module
(Superseded to 578287001)

$31.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 530038604

Coupling-Drive

$5.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

26

Electrolux/AYP 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530016392

Screw

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530058600

Assy.-Fan Hsg

$22.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 545081869

Kit-Switch

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530071767

Kit - Rope

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530016124

Nut

$3.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530057588

Clip-Spring

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530016430

Screw

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530042085

Spring-Starter
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

38

Electrolux/AYP 530071786

Kit-Pulley-Starter

$11.99

$

In Stock, Qty 7

0

39

Electrolux/AYP 530027523

Retainer-Pulley

$7.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

41

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 545005101

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 530071768

Assy-C'case & C'shaft

Note: (Incl. 11,12,44)

$24.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 530019264

Seal-C'case

$7.49

$

In Stock, only 1 left!

0

47

Electrolux/AYP 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530071785

Kit-piston/rod

Note: (Incl . 10,49)

$47.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530071750

O-Ring-C'case (kit)

$

$

Not available

51

Electrolux/AYP 530057954

Assy-Plug

Note: (incl.50)

$5.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 545011004

Shroud-Rear

$4.99

$

In Stock, only 4 left!

0

54

Electrolux/AYP 530016445

Retainer-Tank

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 545104102

Assy-Fuel Tank
(Superseded to 581263701)

Note: (incl. filter, lines & fuel cap

$20.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

57

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

59

Electrolux/AYP 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 530071750

Kit-Engine Gasket

Note: (Incl. 7,13,16,50)

$

$

Not available

60

Electrolux/AYP 530057827

Choke Lever - Zama

Note: Not Shown

$9.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 530058662

Choke Lever - Walbro

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0
