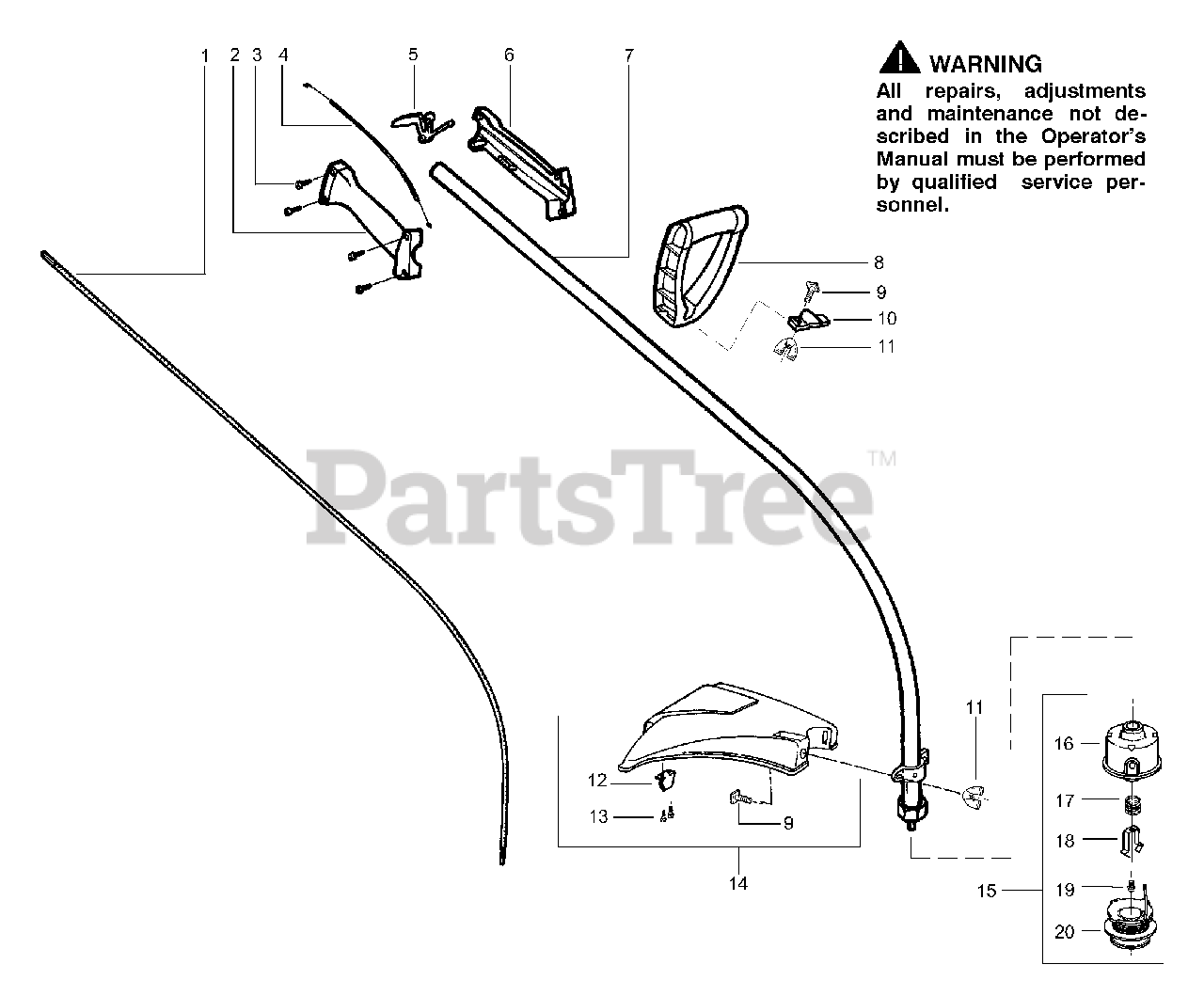

FL 21 - Weed Eater Featherlite String Trimmer Driver Shaft & Cutting Head Parts Diagram

Featherlite String Trimmer

Driver Shaft & Cutting Head Parts Diagram

  • Title

1

Shaft Flex

$

$

Not available

2

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

In Stock, only 1 left!

0

3

Poulan 530016273

Screw Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

4

Poulan 530071548

Assy Throttle Cable

$

$

Not available

5

Poulan 530038682

Trigger

$3.49

$

In Stock, Qty 5

0

6

Poulan 530038580

Hsg. Throttle (Left)

$6.49

$

Usually ships in 3-10 days

0

7

Assy Drive Shaft Hsg.

$

$

Not available

8

Poulan 530038708

Handle Assist

$

$

Not available

9

Poulan 530015820

Bolt Handle/Shield

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530094742

Clamp Handle

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530016118

Wingnut Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

12

Poulan 530052287

Line Limiter

$4.99

$

In Stock, only 2 left!

0

13

Poulan 530015966

Screw Line Limiter

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530069686

Kit Shield Ass'y.

Note: (Incl. 9,11,12,13)

$

$

Not available

15

Poulan 952701666

Accy Cutting Head
(Superseded to 590267601)

Note: (Incl. 16-20)

$32.99

$

In Stock, only 2 left!

0

16

Poulan 530069690

Ass'y Hub

$

$

Not available

17

Poulan 530401464

Spring Compression

$

$

Not available

18

Poulan 530401466

Clip Retainer Head

$3.99

$

In Stock, Qty 9

0

19

Poulan 530401467

Screw w/ Washer Head

$

$

Not available

20

Poulan 952711527

Spool w/Line

$

$

Not available

Poulan 530088138

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530055162

Stop Decal

Note: Not Shown

$

$

Not available
