FL 20 C - Weed Eater Featherlite String Trimmer, Type 1 Cutting Equipment Type 1,2,3,4 Parts Diagram

Featherlite String Trimmer, Type 1

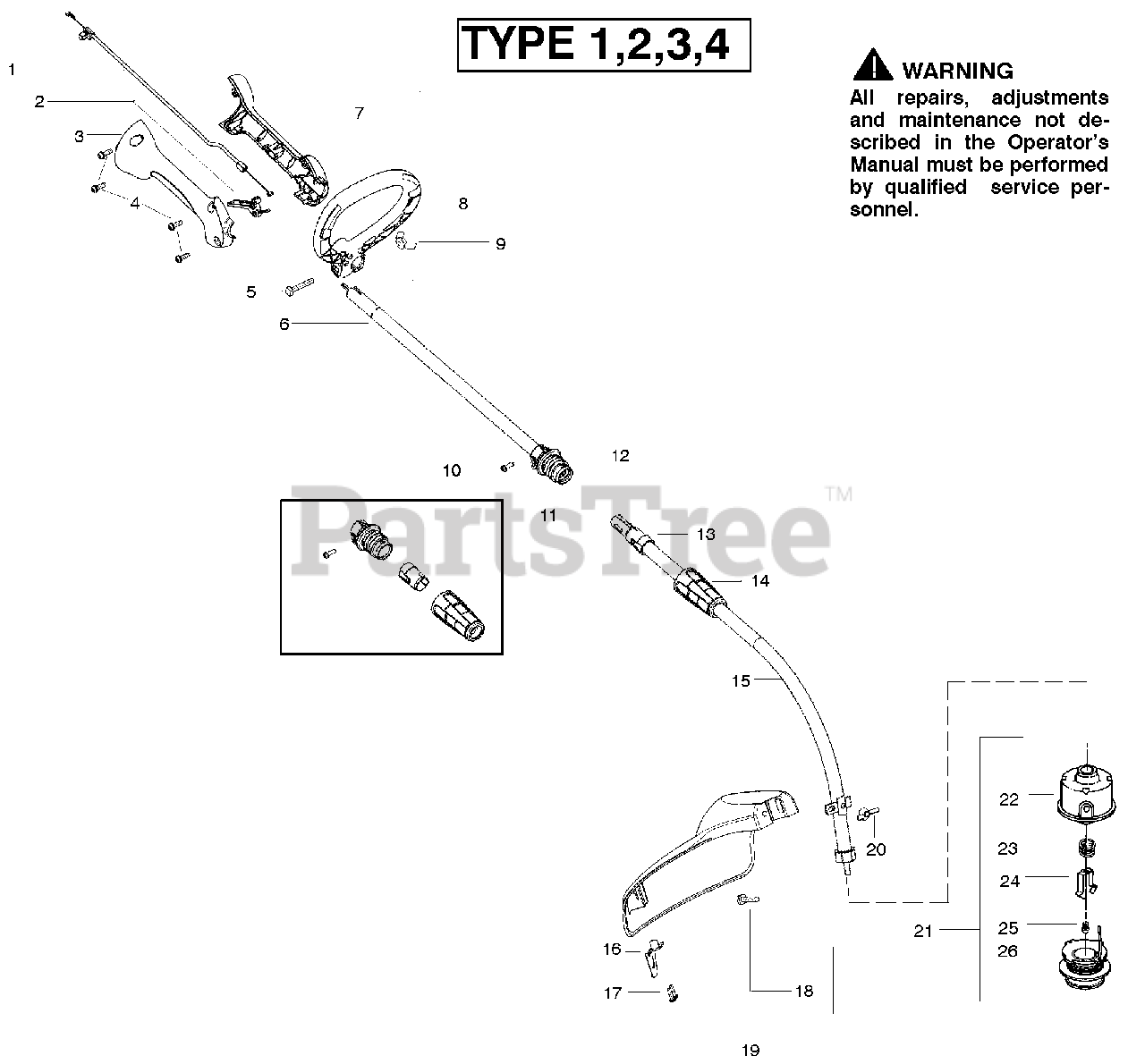

Cutting Equipment Type 1,2,3,4 Parts Diagram

  • Title
1

Poulan 530057991

Assy-Throttle Cable

$11.99

$

In Stock, only 2 left!

0

2

$6.49

$

In Stock, Qty 9

0

3

Poulan 530057582

Throttle Hsg. (Right)

$10.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 574355601

Kit-Upper Shaft

Note: (Incl. 10,12)

$26.99

$

Usually ships in 3-10 days

0

7

Poulan 530057581

Throttle Hsg. (Left)

$11.99

$

Usually ships in 3-10 days

0

8

Poulan 530058580

Assy-Handle
(Superseded to 530071747)

Note: (Incl. 5,9)

$

$

Not available

9

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

10

Poulan 530015886

Screw (10-14 x 5/8)

$6.49

$

In Stock, only 3 left!

0

11

Poulan 545008057

Kit-Coupler Shaft
(Superseded to 581535001)

Note: (Incl. 10,12,13,14)

$9.99

$

Usually ships in 3-10 days

0

12

Collet (ref. 11)

$

$

Not available

13

Collar-Shaft (ref. 11)

$

$

Not available

14

Nut-Collet (ref. 11)

$

$

Not available

15

Poulan 545008062

Kit-Lower Shaft
(Superseded to 581494908)

Note: (Incl. 13,14)

$53.99

$

In Stock, only 1 left!

0

16

Poulan 545081862

Kit - Line Limiter

Note: (Incl. 17)

$6.99

$

In Stock, only 2 left!

0

17

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

19

Poulan 530071772

Kit-Shield Assy

Note: (Incl. 16,17,18,20)

$

$

Not available

20

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

21

Poulan 952701666

Accy-TNG IV Cutting Head
(Superseded to 590267601)

Note: (Incl. 22,23,24,25,26)

$32.99

$

In Stock, only 2 left!

0

22

Poulan 530095769

Assy-Hub

$26.99

$

Usually ships in 3-10 days

0

23

Poulan 530401464

Spring-Compression

$

$

Not available

24

Poulan 530401466

Clip-Retainer-Head

$3.99

$

In Stock, Qty 9

0

25

$

$

Not available

26

Poulan 952711527

Accy- Spool w/Line

$

$

Not available

26

Poulan 545207301

Decal-Shaft Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
