FL 1500 LE - Weed Eater Featherlite Blower, Type 4 (2009-03) Engine - Type 4 Parts Diagram

Featherlite Blower, Type 4

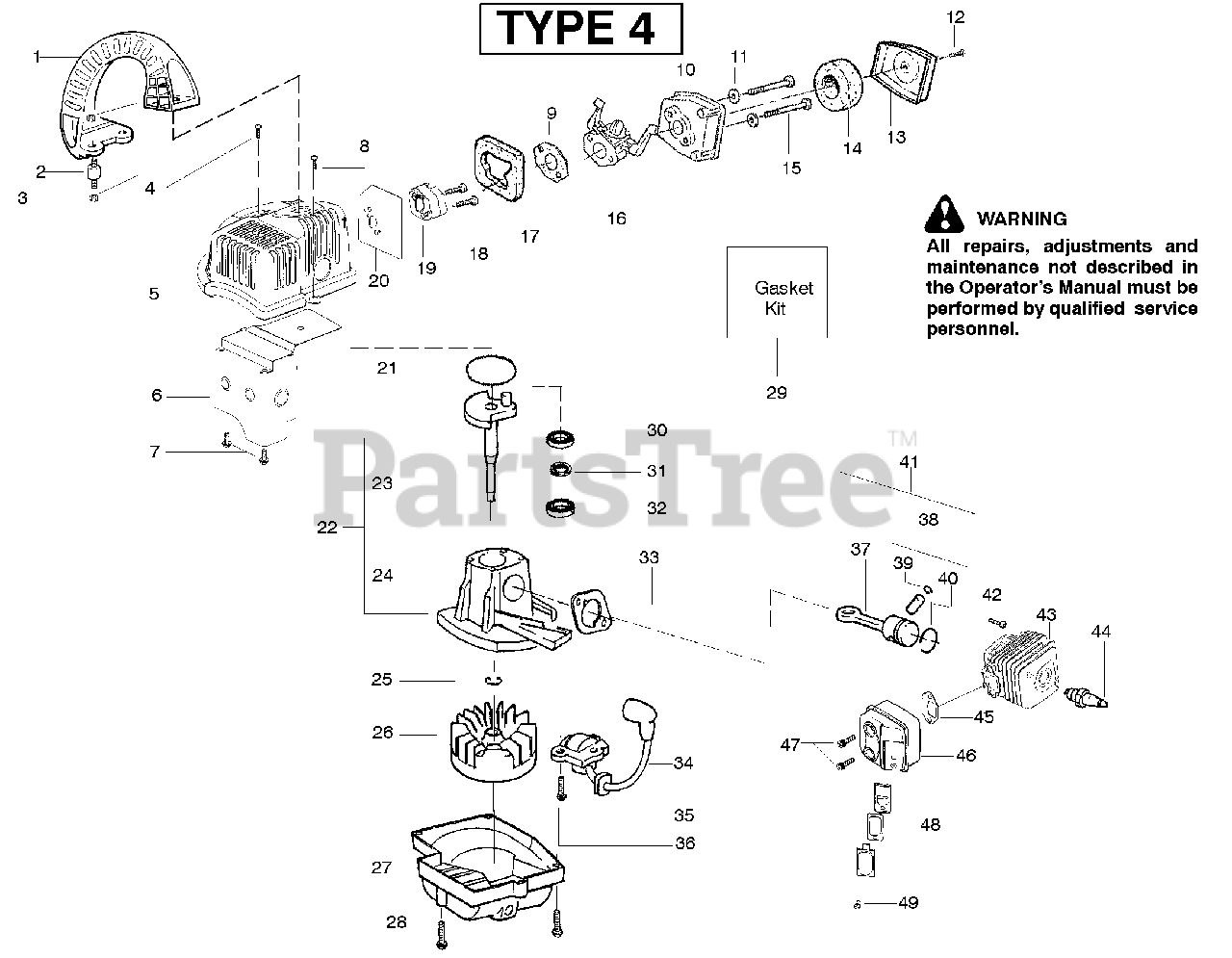

Engine - Type 4 Parts Diagram

  • Title

1

Electrolux/AYP 530054429

Handle

$

$

Not available

2

Electrolux/AYP 530054432

Isolator-Handle

$5.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016316

Nut

$

$

Not available

4

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530055336

Shroud

$21.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530055378

Shield-Heat

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

8

Electrolux/AYP 530016349

Screw

$6.49

$

In Stock, only 1 left!

0

9

Electrolux/AYP 530071472

Gasket-Carb. (Kit)

$

$

Not available

10

Electrolux/AYP 530052333

Air Box

$

$

Not available

11

Electrolux/AYP 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 530052332

Cover-Air Box

$3.49

$

In Stock, Qty 9

0

14

Electrolux/AYP 530047932

Foam-Air Filter

$5.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530016394

Screw

$

$

Not available

16

Electrolux/AYP 530071629

Kit-Carburetor Ass'y. (C1U-W12A)

$

$

Not available

17

Electrolux/AYP 530057725

Foam-Air Dam

$

$

Not available

18

Electrolux/AYP 530016309

Screw

$5.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530057634

Adaptor-Carb.

$12.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530071472

Gasket-Cyl/Carb. Adaptor (Kit)

$

$

Not available

21

Electrolux/AYP 530071472

Gasket-C'case/Shroud (Kit)

$

$

Not available

22

Electrolux/AYP 530071680

Assy.-C'case & C'shaft

Note: (Incl. 23,24,25)

$38.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530052344

Assy.-Crankshaft
(Superseded to 530071625)

$54.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530012510

Assy.-Crankcase

Note: (Incl. 30-32)

$

$

Not available

25

Electrolux/AYP 530015941

Retainer Ring (C'shaft)

$4.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530069886

Assy.-Flywheel
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530058942

Fan Housing

$12.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530071472

Kit-Gasket

Note: (Incl. 9,20,21,33)

$

$

Not available

30

Electrolux/AYP 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530071472

Gasket-Cylinder (Kit)

$

$

Not available

34

Electrolux/AYP 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 530069945

Kit-Connecting Rod Assy.
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530071833

Kit-Piston

Note: (Incl. 39 & 40)

$37.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530071785

Kit-Piston/Rod Assy.

Note: (Incl. 37,38)

$47.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530015953

Screw

$6.49

$

In Stock, Qty 7

0

43

Electrolux/AYP 530012500

Cylinder

$20.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 530071472

Gasket-Muffler kit)

$

$

Not available

46

Electrolux/AYP 530071778

Kit-Muffler

Note: (Incl. #45,47-49)

$

$

Not available

47

Electrolux/AYP 530016338

Bolt-Muffler

$3.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 530071544

Kit-Spark Aresstor

$

$

Not available

49

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0
