FL 1500 LE - Weed Eater Featherlite Blower, Type 1 Engine Type 1 Parts Diagram

Featherlite Blower, Type 1

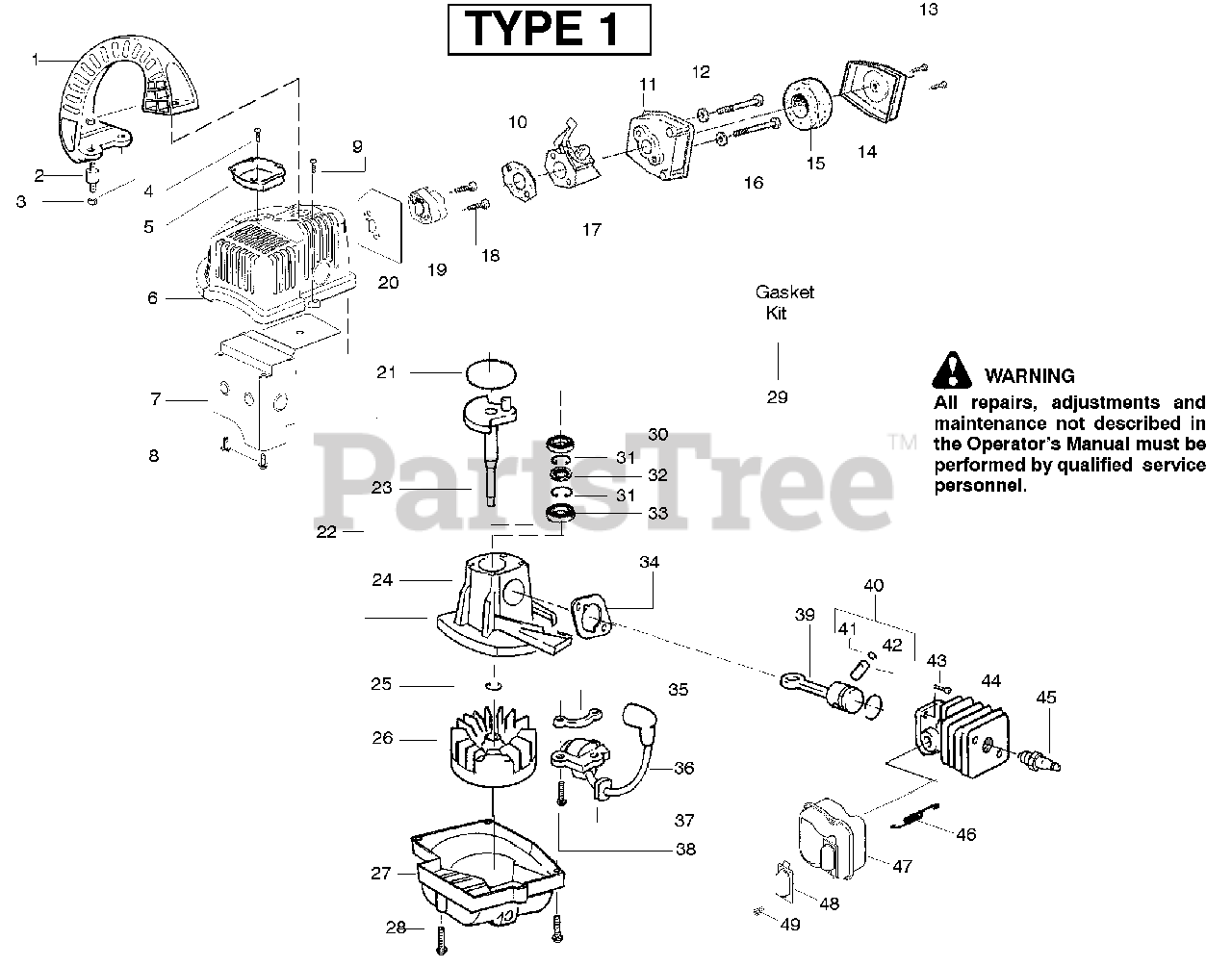

Engine Type 1 Parts Diagram

  • Title

1

Poulan 530054429

Handle

$

$

Not available

2

Poulan 530054432

Isolator-Handle

$5.99

$

Usually ships in 3-10 days

0

3

Poulan 530016316

Nut

$

$

Not available

4

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

5

Poulan 530016258

Plate-Crankcase

$

$

Not available

6

Poulan 530055336

Shroud

$21.99

$

Usually ships in 3-10 days

0

7

Poulan 530055378

Shield-Heat

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

9

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

10

Poulan 530071472

Gasket-Carb. (Kit)

$

$

Not available

11

Poulan 530052333

Air Box

$

$

Not available

12

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

13

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

14

Poulan 530052332

Cover-Air Box

$3.49

$

In Stock, Qty 9

0

15

Poulan 530047932

Foam-Air Filter

$5.99

$

Usually ships in 3-10 days

0

16

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530071471

Kit-Carburetor Ass'y. (W-12)
(Superseded to 530071629)

$

$

Not available

17

Poulan 530071629

Kit-Carburetor Ass'y. (C1U-W12A)

$

$

Not available

18

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

19

Poulan 530056403

Adaptor-Carb.
(Superseded to 545030402)

$12.99

$

Usually ships in 3-10 days

0

20

Poulan 530071472

Gasket-Cyl/Carb. Adaptor (Kit)

$

$

Not available

21

Poulan 530071472

Gasket-C'case/Shroud (Kit)

$

$

Not available

22

Poulan 530071469

Assy.-C'case & C'shaft
(Superseded to 530071625)

Note: (Incl. 23,24,25, & 30-33)

$54.99

$

Usually ships in 3-10 days

0

23

Poulan 530052344

Assy.-Crankshaft
(Superseded to 530071625)

$54.99

$

Usually ships in 3-10 days

0

24

Poulan 530012462

Assy.-Crankcase

Note: (Incl. 30-33)

$10.99

$

Usually ships in 3-10 days

0

25

Poulan 530015941

Retainer Ring (C'shaft)

$4.99

$

In Stock, only 1 left!

0

26

Poulan 530069886

Assy.-Flywheel
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

27

Poulan 530055335

Fan Housing
(Superseded to 545081702)

$14.99

$

Usually ships in 3-10 days

0

28

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

29

Poulan 530071472

Kit-Gasket

Note: (Incl. 10,20,21,34)

$

$

Not available

30

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

31

Poulan 530015945

Retainer Ring (C'case)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530019179

Seal-Crankcase

$

$

Not available

33

Poulan 530032124

Bearing-Outer

$7.49

$

Usually ships in 3-10 days

0

34

Poulan 530071472

Gasket-Cylinder (Kit)

$

$

Not available

35

Poulan 530036145

Spacer-Ign. Module

$3.99

$

In Stock, only 3 left!

0

36

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

37

Poulan 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 530069945

Kit-Connecting Rod Assy.
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

40

Poulan 530071357

Kit-Piston
(Superseded to 530071833)

Note: (Incl. 41 & 42)

$37.99

$

In Stock, only 1 left!

0

41

Poulan 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 2 left!

0

42

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 7

0

44

Poulan 530071359

Kit-Cylinder
(Superseded to 582144301)

$

$

Not available

45

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

46

Poulan 530042088

Spring-Muffler

$3.99

$

In Stock, only 1 left!

0

47

Poulan 530071470

Assy-Muffler

Note: (Incl. #46)

$25.99

$

Usually ships in 3-10 days

0

48

Poulan 530071361

Kit-Spark Aresstor

$

$

Not available

49

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0
