FL 1500 LE (952711486) - Weed Eater Featherlite Blower, Type 2 (2009-03) Housing - Type 1-3 Parts Diagram

Featherlite Blower, Type 2

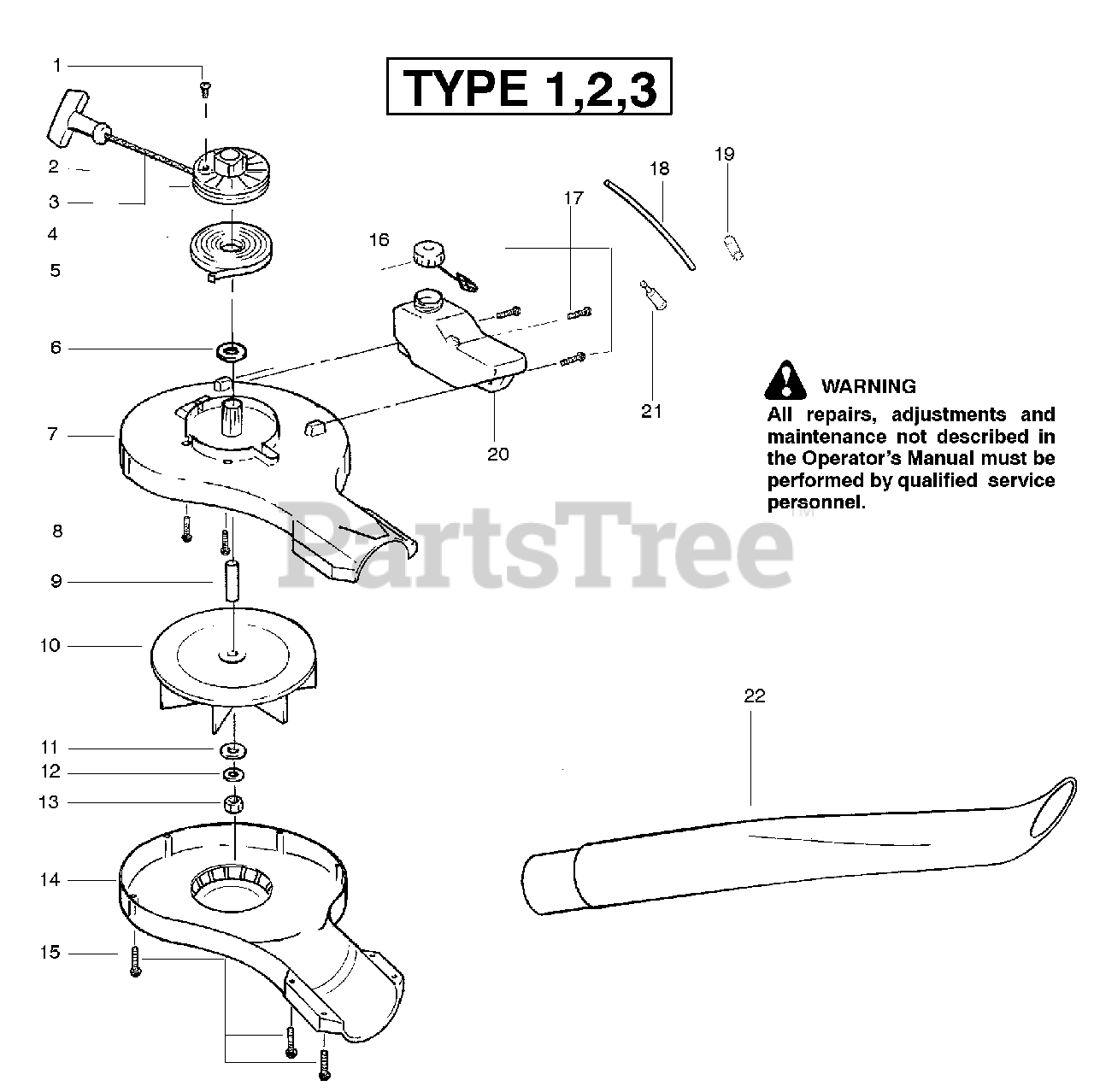

Housing - Type 1-3 Parts Diagram

  • Title

1

Electrolux/AYP 530016392

Screw

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530049488

Handle-Starter

$3.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 530069907

Kit-Rope

$5.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 530069952

Kit-Starter Pulley
(Superseded to 530071792)

Note: (Incl. 1)

$11.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

6

Electrolux/AYP 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 530052334

Housing-Impeller (Upper)
(Superseded to 530058713)

$

$

Not available

8

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

9

Electrolux/AYP 530052434

Spacer-Flywheel

$

$

Not available

10

Electrolux/AYP 530053237

Assy-Impeller

$

$

Not available

11

Electrolux/AYP 530016260

Washer-Flat

$1.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530092322

Lockwasher

$3.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530054181

Assy-Impeller Housing (Lower)

$

$

Not available

15

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

16

Electrolux/AYP 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

17

Electrolux/AYP 530016349

Screw

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530069599

Kit-Fuel Line

$7.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530053314

Grommet-Fuel Line

$3.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 530053021

Assy-Fuel Tank
(Superseded to 545103903)

Note: (Incl. cap,filter, fuel lines)

$31.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

22

Electrolux/AYP 530053461

Tube-Blower
(Superseded to 530052337)

$

$

Not available

22

Electrolux/AYP 530163349

Operator Manual

Note: Not Shown

$6.49

$

In Stock, only 1 left!

0
