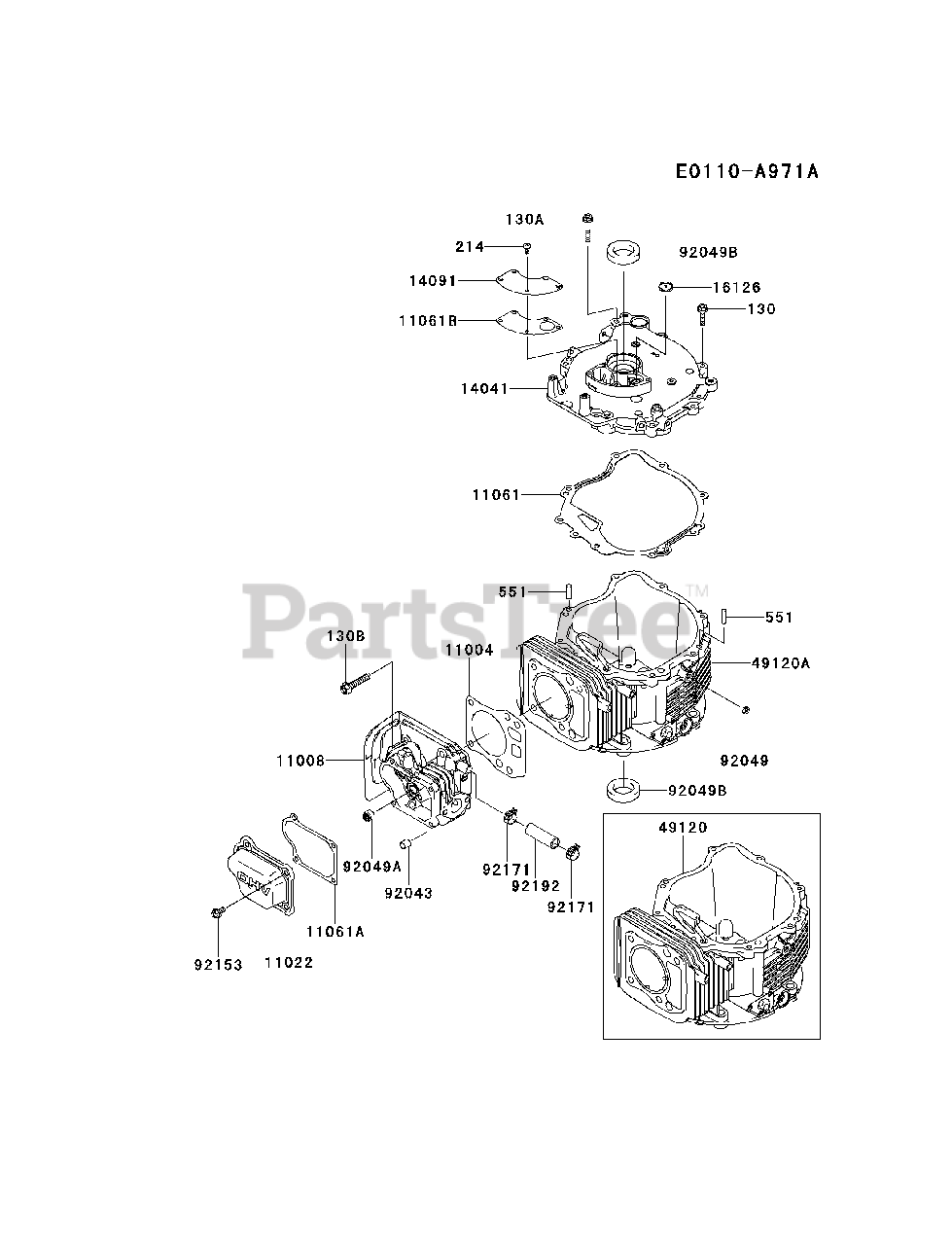

FJ180V-ES50 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-7020

GASKET-HEAD
(Superseded to 11004-7009)

$6.99

$

In Stock, Qty 16

0

11008

Kawasaki 11008-2171

HEAD-COMP-CYLINDER

$

$

Not available

11022

Kawasaki 11022-2083

CASE-ROCKER
(Superseded to 11022-7021)

$10.99

$

In Stock, Qty 11

0

11061

Kawasaki 11061-0862

GASKET,COVER-CRANKCASE

$13.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-2210

GASKET,CASE-ROCKER
(Superseded to 11061-7023)

$4.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7031

GASKET,BREATHER
(Superseded to 11061-2213)

$1.49

$

In Stock, Qty 20+

0

14041

Kawasaki 14041-7009

COVER-COMP
(Superseded to 14041-7004)

$117.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-7010

COVER,BREATHER

$1.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-7014

VALVE,BREATHER
(Superseded to 16126-2247)

$0.99

$

In Stock, Qty 9

0

49120

Kawasaki 49120-7046

CRANKCASE-COMP

$378.99

$

Usually ships in 2-5 days

0

49120A

Kawasaki 49120-7098

CRANKCASE-COMP

$361.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2097

SEAL-OIL,VC-6X10X2.5

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049B

Kawasaki 92049-7008

SEAL-OIL,28-44-9 TC

$

$

Not available

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 92171-7024

CLAMP

$2.99

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-2184

TUBE,12X16X49

$

$

Not available

130

Kawasaki 130BA0625

BOLT-FLANGED,6X25
(Superseded to 92003-177)

$1.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 12

0

130B

Kawasaki 130CA0840

BOLT-FLANGED,8X40
(Superseded to 130G0840)

$2.49

$

In Stock, Qty 7

0

214

Kawasaki 214AA0510

SCREW-PAN+-,5X10
(Superseded to 214B0510)

$0.99

$

In Stock, Qty 13

0

551

Kawasaki 551A0612

PIN-DOWEL,6X12

$0.99

$

Usually ships in 2-5 days

0
