FJ180V-ES50 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

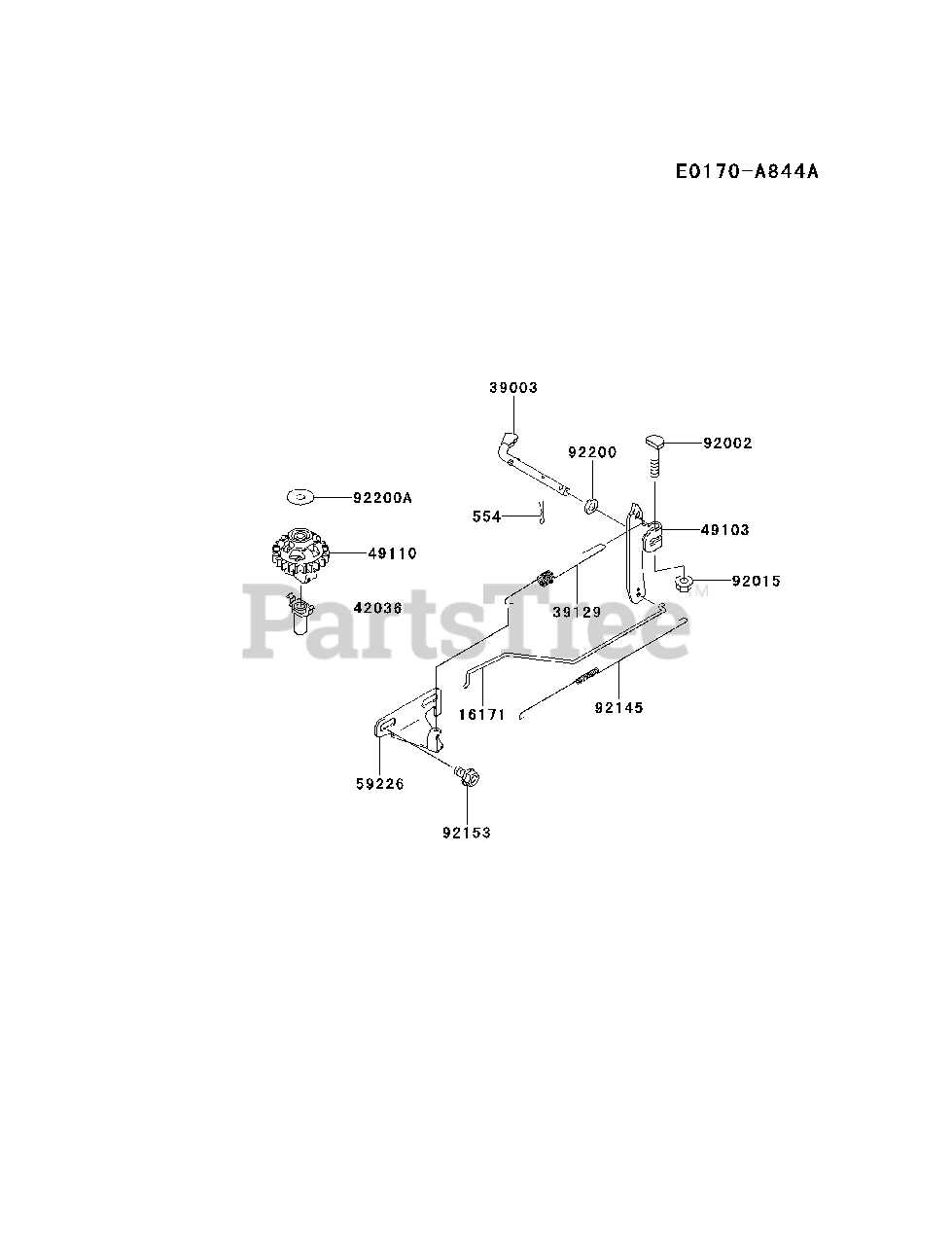

CONTROL-EQUIPMENT Parts Diagram

  • Title

16171

Kawasaki 16171-7015

LINK,THROTTLE
(Superseded to 16171-2106)

$4.49

$

In Stock, Qty 9

0

39003

Kawasaki 39003-7002

ARM-PIVOT

$11.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-7007

SPRING-GOVERNOR

$1.99

$

In Stock, Qty 5

0

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49103

Kawasaki 49103-2177

ARM-GOVERNOR

$4.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-2102

GOVERNOR-ASSY

$

$

Not available

59226

Kawasaki 59226-2370

PANEL-CONTROL
(Superseded to 59226-7014)

$10.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2269

BOLT,6X28

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-2182

SPRING,THROTTLE

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

92200A

Kawasaki 92200-2036

WASHER,6.2X20X0.5

$1.49

$

In Stock, Qty 12

0

554

Kawasaki 554DA0600

PIN-SNAP,1.2X21.2
(Superseded to 554A0600)

$1.49

$

In Stock, only 3 left!

0
