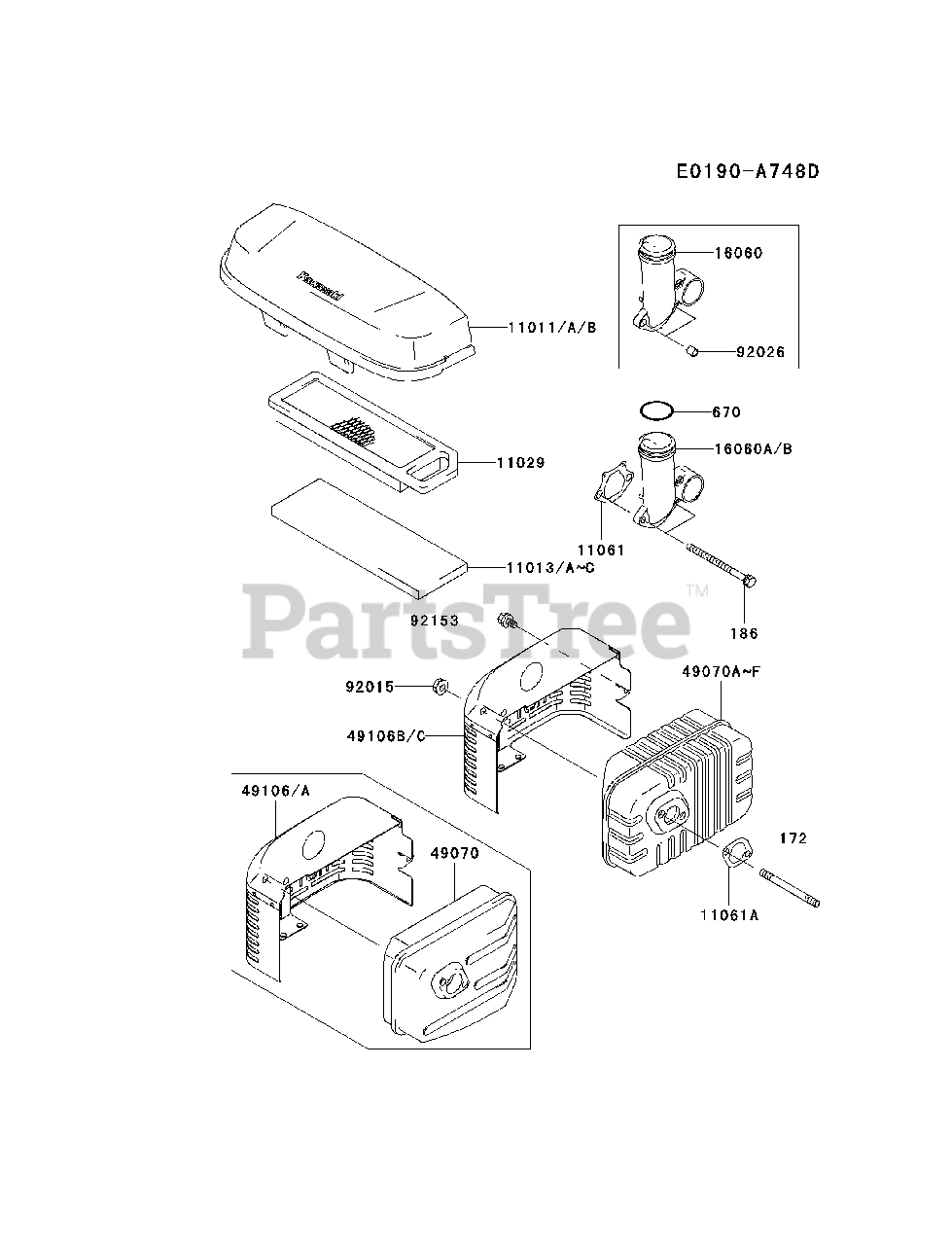

FJ180V-DS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11011A

Kawasaki 11011-7024

CASE-AIR FILTER
(Superseded to 11011-7025)

$16.99

$

In Stock, Qty 12

0

11013B

Kawasaki 11013-7032

ELEMENT-AIR FILTER
(Superseded to 11013-2232)

$4.99

$

In Stock, Qty 20+

0

11029

Kawasaki 11029-7010

ELEMENT-ASSY-AIR FILTER
(Superseded to 11029-0017)

$12.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7012

GASKET,PIPE INTAKE
(Superseded to 11061-2211)

$3.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7029

GASKET,MUFFLER
(Superseded to 11061-2212)

$3.49

$

In Stock, Qty 20+

0

16060A

Kawasaki 16060-7012

PIPE-INTAKE
(Superseded to 16060-7009)

$3.99

$

In Stock, only 2 left!

0

49070E

Kawasaki 49070-7022

MUFFLER-COMP
(Superseded to 49070-7019)

$37.99

$

Usually ships in 2-5 days

0

49106B

Kawasaki 49106-7013

COVER-MUFFLER
(Superseded to 49106-7007)

$

$

Not available

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92153

$0.99

$

In Stock, Qty 10

0

172

Kawasaki 172G0680

BOLT-STUD,6X80
(Superseded to 172BA0680)

$3.49

$

In Stock, Qty 17

0

186

Kawasaki 186B0680

BOLT-UPSET-WP,6X80
(Superseded to 186AA0680)

$1.49

$

In Stock, Qty 15

0

670

Kawasaki 670B3032

O RING,32MM
(Superseded to 92055-1321)

$1.49

$

In Stock, Qty 7

0
