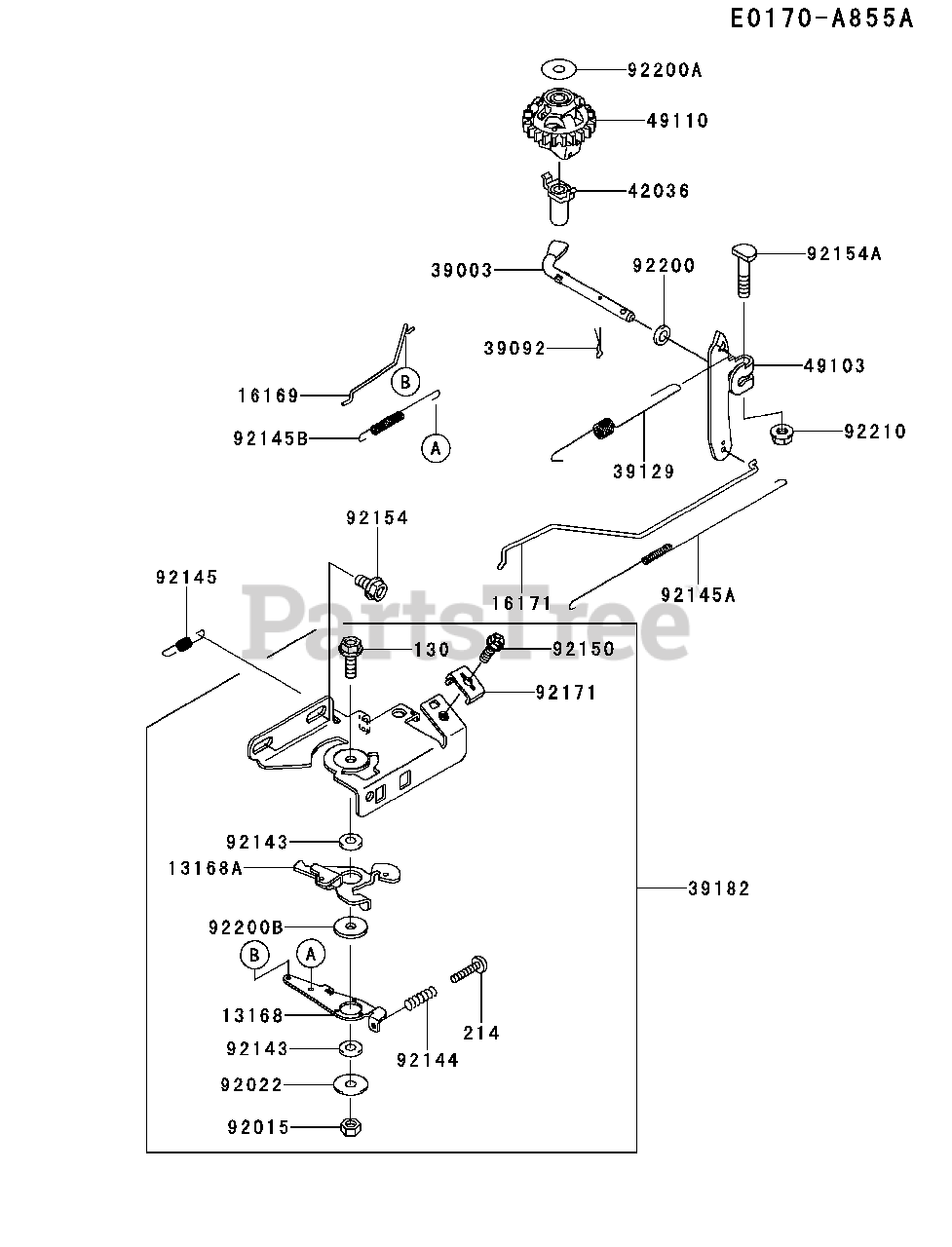

FJ180V-CM22 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title

13168

Kawasaki 131682518

LEVER

$7.49

$

Usually ships in 2-5 days

0

13168A

Kawasaki 131682519

LEVER

$10.99

$

Usually ships in 2-5 days

0

16169

Kawasaki 161692148

LINK-CHOKE

$0.99

$

In Stock, Qty 7

0

16171

Kawasaki 161712106

LINK,THROTTLE
(Superseded to 16171-7015)

$4.49

$

Usually ships in 2-5 days

0

39003

Kawasaki 390032104

ARM-PIVOT
(Superseded to 39003-2096)

$11.99

$

Usually ships in 2-5 days

0

39092

Kawasaki 390922055

PIN-HAIR

$1.49

$

In Stock, Qty 6

0

39129

Kawasaki 391292128

SPRING-GOVERNOR

$2.49

$

In Stock, Qty 10

0

39182

Kawasaki 391822195

PANEL-ASSY-CONTROL

$46.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-0830

SLEEVE

$3.49

$

In Stock, Qty 10

0

49103

Kawasaki 491032177

ARM-GOVERNOR

$4.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 491100015

GOVERNOR-ASSY

$22.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-2051

NUT,LOCK,FLANGED,6MM
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 920222372

WASHER

$0.99

$

In Stock, only 3 left!

0

92143

Kawasaki 921432135

COLLAR

$0.99

$

In Stock, only 1 left!

0

92144

Kawasaki 921442266

SPRING,RPM ADJUSTMENT

$5.49

$

Usually ships in 2-5 days

0

92145

Kawasaki 921452180

SPRING

$0.99

$

In Stock, only 2 left!

0

92145A

Kawasaki 921452182

SPRING,THROTTLE

$0.99

$

In Stock, Qty 6

0

92145B

Kawasaki 921452185

SPRING

$7.49

$

In Stock, Qty 7

0

92150

Kawasaki 921502182

BOLT

$0.99

$

In Stock, Qty 5

0

92154

Kawasaki 921542003

BOLT,6X12

$0.99

$

In Stock, only 3 left!

0

92154A

Kawasaki 921542018

BOLT,6X28

$2.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 921717016

CLAMP

$1.99

$

In Stock, only 3 left!

0

92200

Kawasaki 922001907

WASHER,6.5X11.3X1.6

$0.99

$

Usually ships in 2-5 days

0

92200A

Kawasaki 922002185

WASHER,6.2X20X0.5

$1.49

$

In Stock, only 1 left!

0

92200B

Kawasaki 922007047

WASHER

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 922102121

NUT,M6

$0.99

$

In Stock, Qty 9

0

130

Kawasaki 130AA0618

BOLT-FLANGED,6X18
(Superseded to 130B0618)

$1.49

$

In Stock, Qty 5

0

214

Kawasaki 214AA0420

SCREW-PAN+-,4X20
(Superseded to 214B0420)

$0.99

$

In Stock, Qty 10

0
