FJ180V-CM22 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

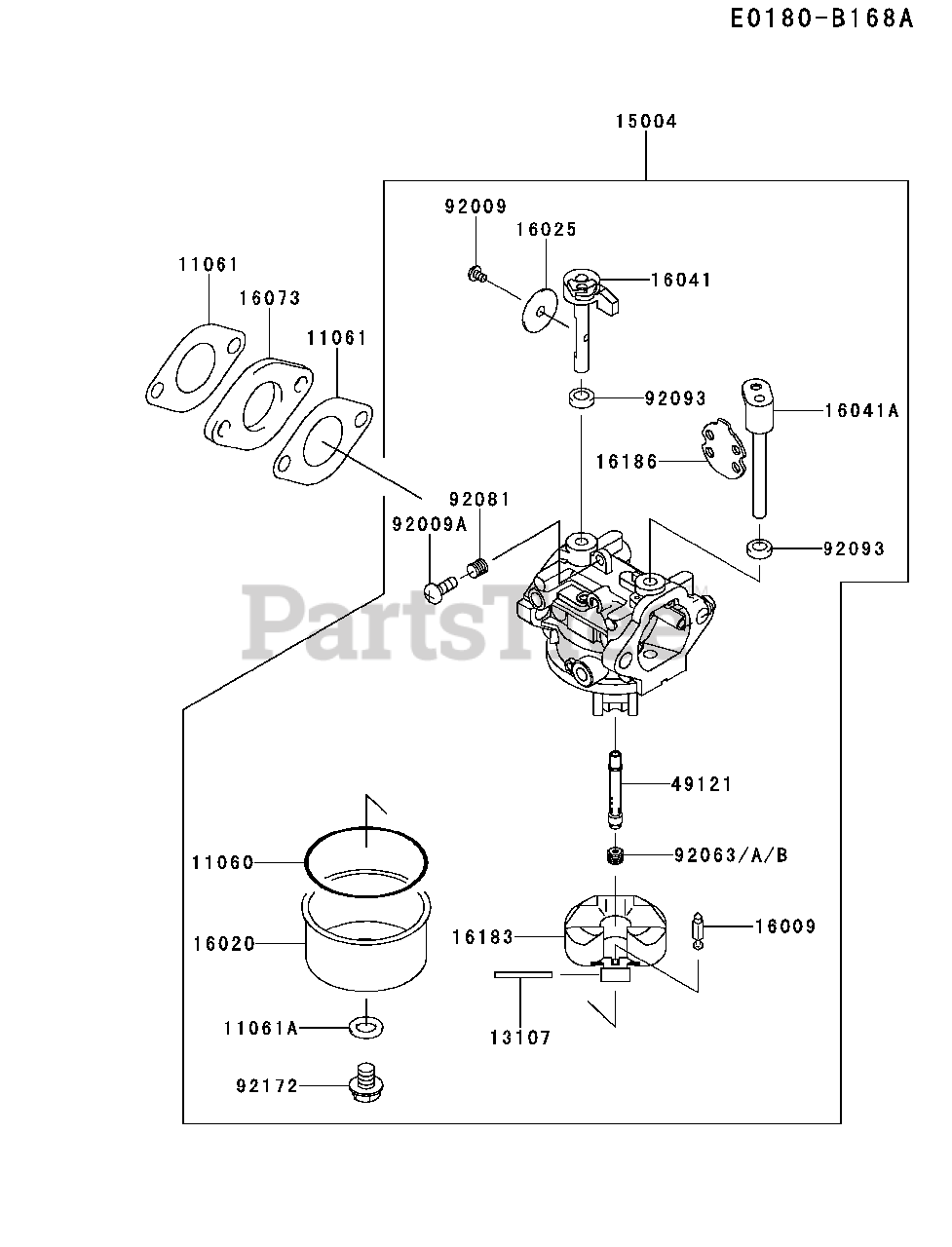

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 110602190

GASKET

$4.49

$

In Stock, Qty 20+

0

11061

Kawasaki 110612215

GASKET,INSULATOR
(Superseded to 11061-7015)

$1.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 110617010

GASKET

$3.49

$

In Stock, Qty 20+

0

13107

Kawasaki 131077024

SHAFT

$7.99

$

In Stock, only 1 left!

0

15004

Kawasaki 150040962

CARBURETOR-ASSY
(Superseded to 15004-7010)

$218.99

$

In Stock, only 3 left!

0

16009

Kawasaki 160092136

NEEDLE-JET

$22.99

$

In Stock, Qty 14

0

16020

Kawasaki 160207004

CHAMBER-FLOAT

$34.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 160257007

VALVE-THROTTLE

$9.49

$

In Stock, Qty 17

0

16041

Kawasaki 160417019

SHAFT-CARBURETOR

$33.99

$

In Stock, Qty 15

0

16041A

Kawasaki 160417020

SHAFT-CARBURETOR

$11.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732240

INSULATOR
(Superseded to 16073-7006)

$2.49

$

In Stock, Qty 20+

0

16183

Kawasaki 161832002

FLOAT-ASSY

$21.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 161867003

VALVE-ASSY-CHOKE

$11.99

$

In Stock, only 1 left!

0

49121

Kawasaki 491217014

NOZZLE-MAIN

$32.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092083

SCREW

$2.49

$

In Stock, Qty 5

0

92009A

Kawasaki 920092349

SCREW

$1.49

$

In Stock, only 3 left!

0

92063

Kawasaki 920637067

JET-MAIN,#70

$10.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 920637108

JET-MAIN,#68

$10.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 920637109

JET-MAIN,#66

$10.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 920812234

SPRING

$4.49

$

In Stock, only 4 left!

0

92093

Kawasaki 920932100

SEAL

$3.49

$

In Stock, Qty 20+

0

92172

Kawasaki 921727002

SCREW

$7.49

$

In Stock, Qty 5

0
