FJ180V-CM08 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

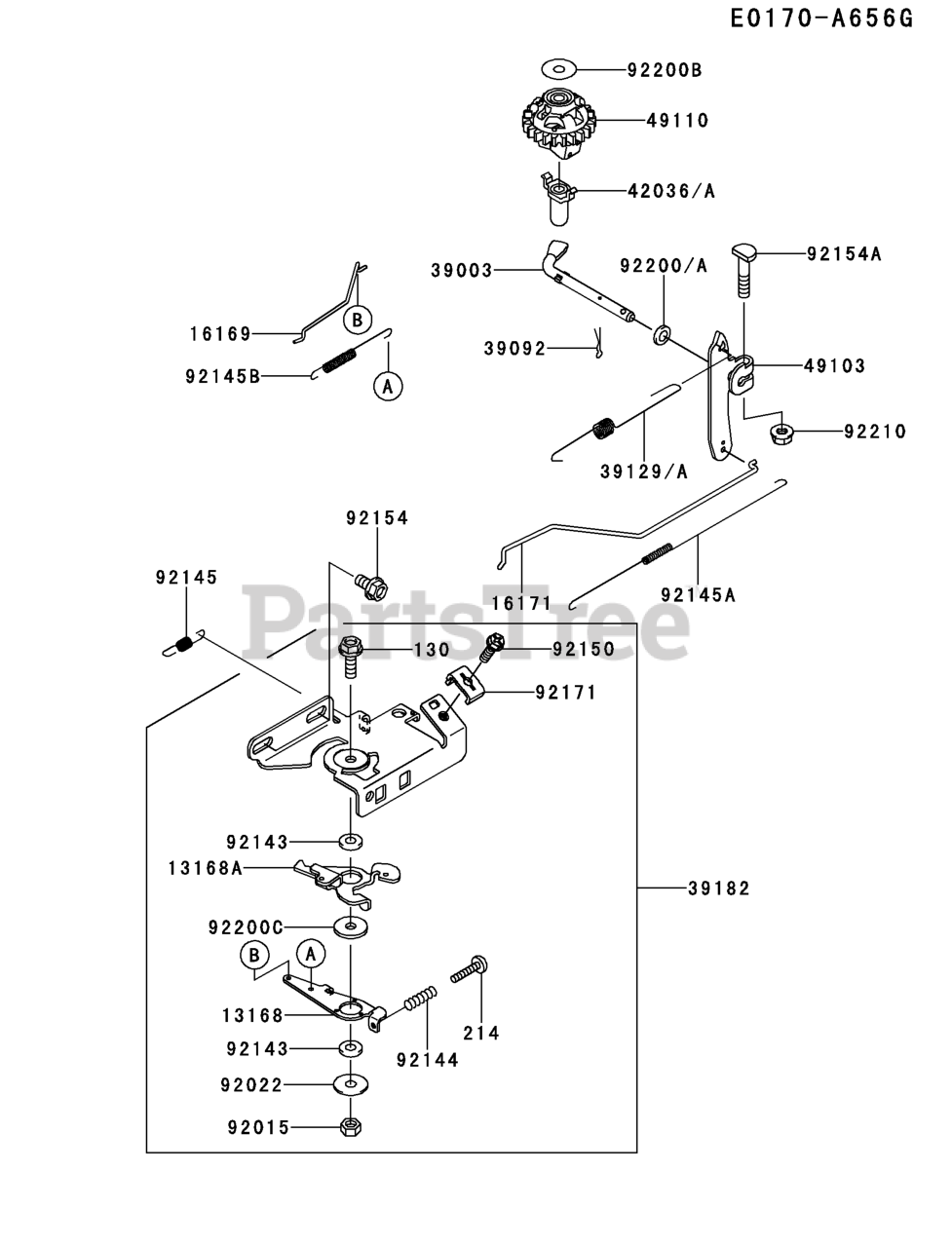

CONTROL-EQUIPMENT Parts Diagram

  • Title

13168

Kawasaki 13168-2518

LEVER

$7.49

$

Usually ships in 2-5 days

0

13168A

Kawasaki 13168-2519

LEVER

$10.99

$

Usually ships in 2-5 days

0

16169

Kawasaki 16169-2148

LINK-CHOKE

$0.99

$

In Stock, Qty 5

0

16171

Kawasaki 16171-2106

LINK,THROTTLE
(Superseded to 16171-7015)

$4.49

$

In Stock, Qty 9

0

39003

Kawasaki 39003-2104

ARM-PIVOT
(Superseded to 39003-2096)

$11.99

$

Usually ships in 2-5 days

0

39092

Kawasaki 39092-2055

PIN-HAIR

$1.49

$

In Stock, Qty 6

0

39129

Kawasaki 39129-2128

SPRING-GOVERNOR

$2.49

$

In Stock, Qty 9

0

39182

Kawasaki 39182-2195

PANEL-ASSY-CONTROL

$46.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-0830

SLEEVE

$3.49

$

In Stock, Qty 10

0

49103

Kawasaki 49103-2177

ARM-GOVERNOR

$4.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-0015

GOVERNOR-ASSY

$22.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-2051

NUT,LOCK
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2372

WASHER,6X19X1.2

$0.99

$

In Stock, only 3 left!

0

92143

Kawasaki 92143-2135

COLLAR,6X13X2.3

$0.99

$

In Stock, only 1 left!

0

92144

Kawasaki 92144-2266

SPRING

$5.49

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2180

SPRING

$0.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-2182

SPRING,THROTTLE

$0.99

$

In Stock, Qty 20+

0

92145B

Kawasaki 92145-2185

SPRING

$7.49

$

In Stock, Qty 17

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92154

Kawasaki 92154-2003

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92154A

Kawasaki 92154-2018

BOLT,6X28

$2.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7016

CLAMP

$1.99

$

In Stock, only 3 left!

0

92200

Kawasaki 92200-1907

WASHER,6.5X11.3X1.6

$0.99

$

Usually ships in 2-5 days

0

92200B

Kawasaki 92200-2185

WASHER,6.2X20X0.5

$1.49

$

In Stock, only 1 left!

0

92200C

Kawasaki 92200-7047

WASHER

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-2121

NUT,M6

$0.99

$

In Stock, Qty 7

0

130

Kawasaki 130AA0618

BOLT-FLANGED,6X18
(Superseded to 130B0618)

$1.49

$

In Stock, Qty 5

0

214

Kawasaki 214AA0420

SCREW-PAN+-,4X20
(Superseded to 214B0420)

$0.99

$

In Stock, Qty 10

0
