FJ180V-AS36 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

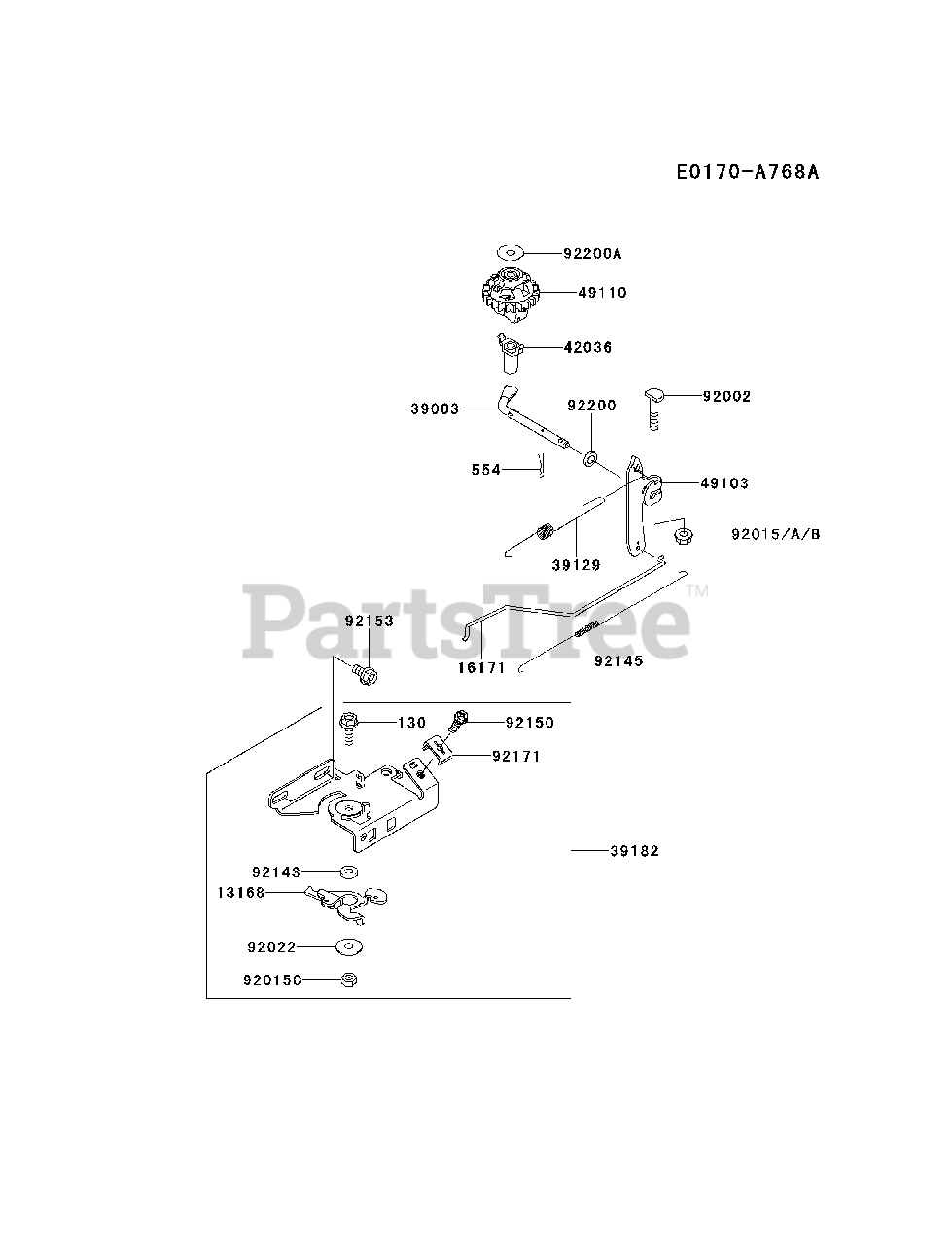

CONTROL-EQUIPMENT Parts Diagram

  • Title

13168

Kawasaki 13168-7032

LEVER

$

$

Not available

16171

Kawasaki 16171-7015

LINK,THROTTLE
(Superseded to 16171-2106)

$4.49

$

In Stock, Qty 9

0

39003

Kawasaki 39003-7002

ARM-PIVOT

$11.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-7023

SPRING-GOVERNOR
(Superseded to 39129-7014)

$1.99

$

In Stock, Qty 5

0

39182

Kawasaki 39182-7010

PANEL-ASSY-CONTROL

$35.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49103

Kawasaki 49103-7016

ARM-GOVERNOR

$2.99

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-7002

GOVERNOR-ASSY

$

$

Not available

92002

Kawasaki 92002-2269

BOLT,6X28

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92015C

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2372

WASHER,6X19X1.2

$0.99

$

In Stock, only 3 left!

0

92143

Kawasaki 92143-2135

COLLAR,6X13X2.3

$0.99

$

In Stock, only 1 left!

0

92145

Kawasaki 92145-7025

SPRING,THROTTLE
(Superseded to 92145-2182)

$0.99

$

In Stock, Qty 20+

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 92171-7016

CLAMP

$1.99

$

In Stock, only 3 left!

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

92200A

Kawasaki 92200-2036

WASHER,6.2X20X0.5

$1.49

$

In Stock, Qty 12

0

130

Kawasaki 130AA0618

BOLT-FLANGED,6X18
(Superseded to 130B0618)

$1.49

$

In Stock, Qty 5

0

554

Kawasaki 554DA0600

PIN-SNAP,1.2X21.2
(Superseded to 554A0600)

$1.49

$

In Stock, only 3 left!

0
