FJ180V-AS36 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

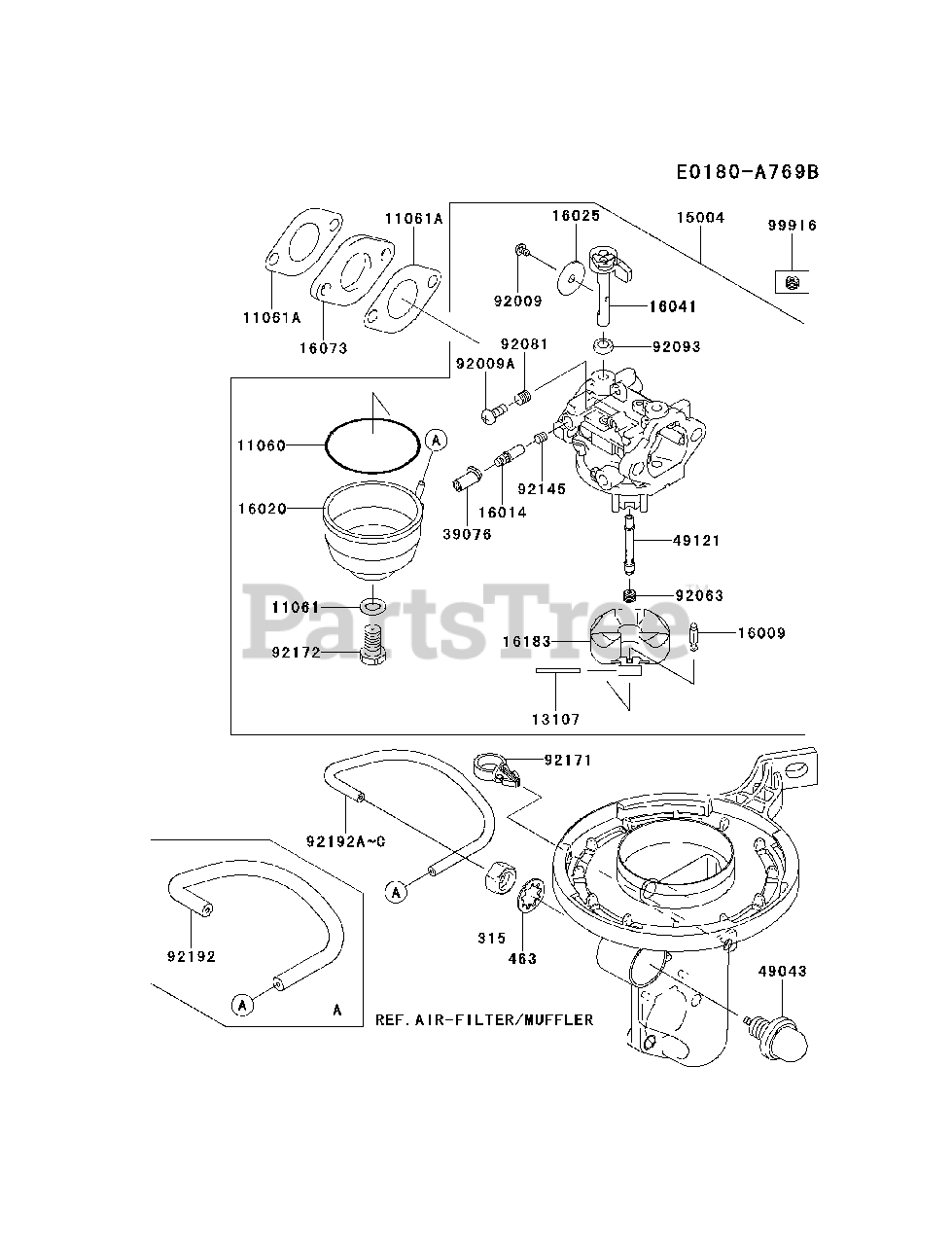

CARBURETOR Parts Diagram

  • Title
11060

$4.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7010

GASKET,SCREW

$3.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7015

GASKET,INSULATOR
(Superseded to 11061-2215)

$1.99

$

In Stock, Qty 20+

0

13107

$7.99

$

In Stock, only 1 left!

0

15004

Kawasaki 15004-7011

CARBURETOR-ASSY
(Superseded to 15004-0961)

$219.99

$

In Stock, only 1 left!

0

16009

Kawasaki 16009-2136

NEEDLE-JET

$22.99

$

In Stock, Qty 14

0

16014

Kawasaki 16014-7008

SCREW-PILOT AIR

$12.99

$

Usually ships in 2-5 days

0

16020

Kawasaki 16020-7005

CHAMBER-FLOAT

$35.99

$

In Stock, only 1 left!

0

16025

Kawasaki 16025-7007

VALVE-THROTTLE

$9.49

$

In Stock, Qty 17

0

16041

Kawasaki 16041-7019

SHAFT-CARBURETOR

$33.99

$

In Stock, Qty 15

0

16073

Kawasaki 16073-7006

INSULATOR
(Superseded to 16073-2240)

$2.49

$

In Stock, Qty 20+

0

16183

Kawasaki 16183-2002

FLOAT-ASSY

$21.99

$

In Stock, only 1 left!

0

39076

$8.49

$

In Stock, only 2 left!

0

49043

Kawasaki 49043-7002

PUMP-PRIMING

$7.49

$

In Stock, Qty 20+

0

49121

Kawasaki 49121-7014

NOZZLE-MAIN

$32.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2083

SCREW
(Superseded to 31037A-6157A)

$2.49

$

In Stock, Qty 5

0

92009A

$1.49

$

In Stock, only 3 left!

0

92063

Kawasaki 92063-7061

JET-MAIN,#78

$19.99

$

Usually ships in 2-5 days

0

92081

$4.49

$

In Stock, only 4 left!

0

92093

$3.49

$

In Stock, Qty 20+

0

92145

$2.49

$

In Stock, Qty 9

0

92171

$1.99

$

In Stock, only 2 left!

0

92172

$13.99

$

In Stock, only 1 left!

0

92192

Kawasaki 92192-7092

TUBE,2.2X7.3X190
(Superseded to 92192-7162)

$

$

Not available

92192B

Kawasaki 92192-7120

TUBE,2X5X190
(Superseded to 92192-7162)

$

$

Not available

99916

Kawasaki 99916-7007

KIT,JET-MAIN,#72,#70

$21.99

$

Usually ships in 2-5 days

0

315

Kawasaki 315AA1000

NUT-HEX-FINE,10MM
(Superseded to 92016-015)

$0.99

$

In Stock, Qty 10

0

463

Kawasaki 463EA1000

WASHER-TOOTHED,10MM

$0.99

$

In Stock, Qty 9

0
