FJ180V-AS22 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

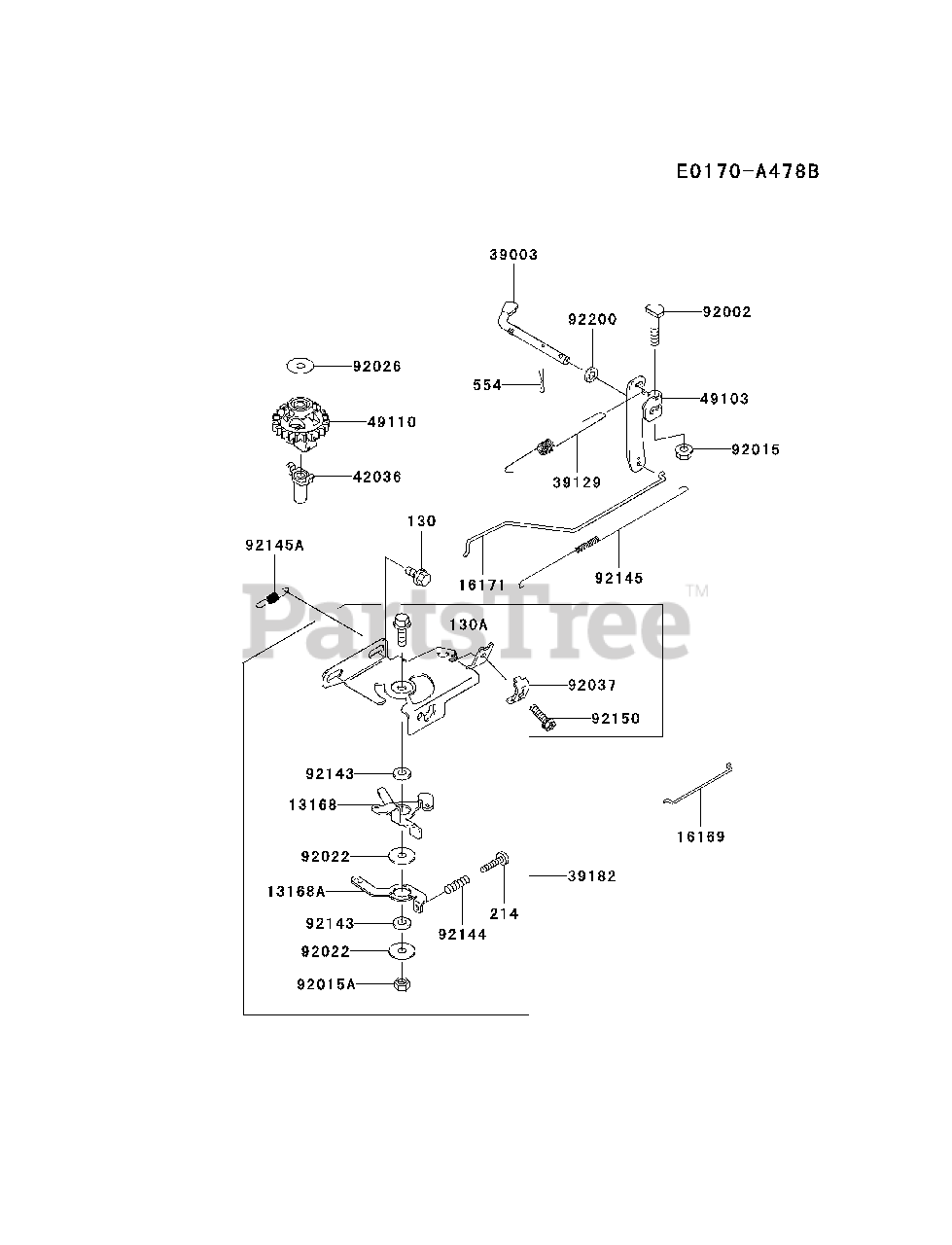

CONTROL-EQUIPMENT Parts Diagram

  • Title

13168

Kawasaki 13168-7020

LEVER

$7.49

$

Usually ships in 2-5 days

0

13168A

Kawasaki 13168-7022

LEVER

$

$

Not available

16169

Kawasaki 16169-7011

LINK-CHOKE

$0.99

$

Usually ships in 2-5 days

0

16171

Kawasaki 16171-7015

LINK,THROTTLE
(Superseded to 16171-2106)

$4.49

$

In Stock, Qty 6

0

39003

Kawasaki 39003-7002

ARM-PIVOT

$11.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-7014

SPRING-GOVERNOR
(Superseded to 39129-7023)

$1.99

$

In Stock, Qty 5

0

39182

Kawasaki 39182-7005

PANEL-ASSY-CONTROL

$31.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49103

Kawasaki 49103-7005

ARM-GOVERNOR

$2.99

$

In Stock, only 1 left!

0

49110

Kawasaki 49110-7002

GOVERNOR-ASSY

$

$

Not available

92002

Kawasaki 92002-2269

BOLT

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92015A

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2372

WASHER,6X19X1.2

$0.99

$

In Stock, only 3 left!

0

92026

Kawasaki 92200-2036

SPACER

$1.49

$

In Stock, Qty 12

0

92037

Kawasaki 92037-2209

CLAMP

$1.49

$

In Stock, only 4 left!

0

92143

Kawasaki 92143-2135

COLLAR,6X13X2.3

$0.99

$

In Stock, only 1 left!

0

92144

Kawasaki 92144-2266

SPRING

$5.49

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7025

SPRING,THROTTLE
(Superseded to 92145-2182)

$0.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7032

SPRING
(Superseded to 92145-2180)

$0.99

$

In Stock, Qty 20+

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0618

BOLT-FLANGED
(Superseded to 130AA0618)

$1.49

$

In Stock, Qty 5

0

214

Kawasaki 214B0420

SCREW-PAN+-
(Superseded to 214AA0420)

$0.99

$

In Stock, Qty 10

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
