FJ180V-AM14 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

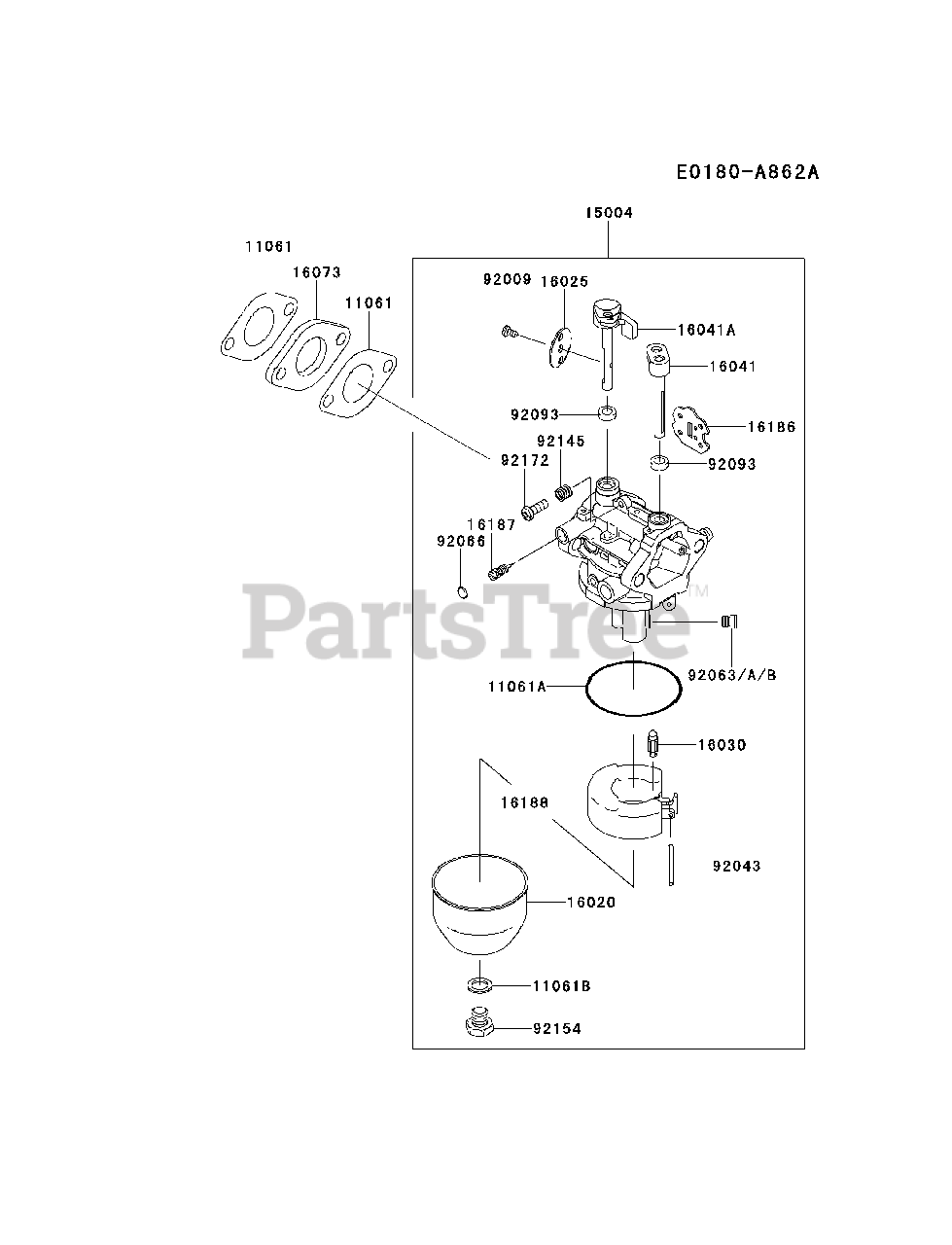

CARBURETOR Parts Diagram

  • Title

11061

Kawasaki 11061-2215

GASKET,INSULATOR
(Superseded to 11061-7015)

$1.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-2238

GASKET

$5.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7054

GASKET,CENTER POST

$6.49

$

In Stock, Qty 15

0

15004

Kawasaki 15004-2072

CARBURETOR-ASSY
(Superseded to 15004-0834)

$202.99

$

In Stock, only 1 left!

0

16020

Kawasaki 16020-2156

CHAMBER-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-2213

VALVE-THROTTLE

$13.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 20+

0

16041

Kawasaki 16041-2265

SHAFT-CARBURETOR

$17.99

$

In Stock, only 1 left!

0

16041A

Kawasaki 16041-2267

SHAFT-CARBURETOR

$46.99

$

In Stock, only 1 left!

0

16073

Kawasaki 16073-2240

INSULATOR
(Superseded to 16073-7006)

$2.49

$

In Stock, Qty 20+

0

16186

Kawasaki 16186-2052

VALVE-ASSY-CHOKE

$16.99

$

Usually ships in 2-5 days

0

16187

Kawasaki 16187-7002

NEEDLE-JET

$13.99

$

In Stock, only 2 left!

0

16188

Kawasaki 16188-2001

FLOAT

$21.99

$

In Stock, only 4 left!

0

92009

Kawasaki 92009-2049

SCREW
(Superseded to 317470-6134A)

$0.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-2274

PIN

$4.49

$

Usually ships in 2-5 days

0

92063

Kawasaki 92063-2497

JET-MAIN,#81

$15.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-2498

JET-MAIN,#79,3280FT

$15.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-2499

JET-MAIN,#77,6560FT

$15.99

$

In Stock, only 1 left!

0

92066

Kawasaki 92066-7009

PLUG,EXPANSION

$7.99

$

In Stock, Qty 11

0

92093

Kawasaki 92093-2135

SEAL

$4.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-2202

SPRING

$4.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2049

BOLT

$10.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-2132

SCREW

$2.99

$

Usually ships in 2-5 days

0
