FJ180V-AM00 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

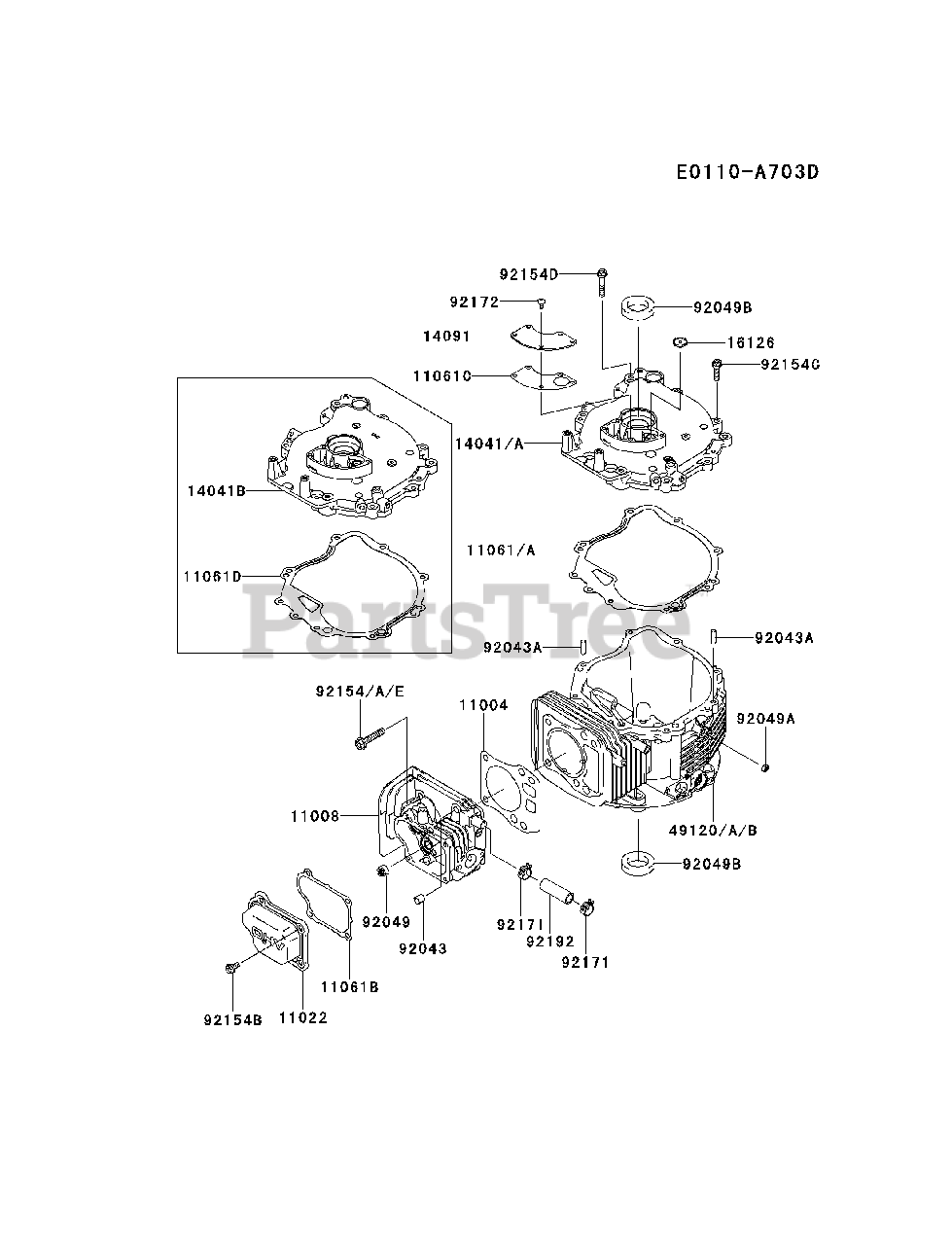

CYLINDER/CRANKCASE Parts Diagram

  • Title
11004

Kawasaki 11004-2146

GASKET-HEAD

$8.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-2171

HEAD-COMP-CYLINDER

$

$

Not available

11022

Kawasaki 11022-2083

CASE-ROCKER
(Superseded to 11022-7021)

$10.99

$

In Stock, Qty 11

0

11061A

Kawasaki 11061-0743

GASKET,COVER-CRANKCASE
(Superseded to 11061-0862)

$13.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-2210

GASKET,CASE-ROCKER
(Superseded to 11061-7023)

$4.99

$

In Stock, Qty 20+

0

11061C

Kawasaki 11061-2213

GASKET,BREATHER
(Superseded to 11061-7031)

$1.49

$

In Stock, Qty 20+

0

11061D

Kawasaki 11061-2242

GASKET,COVER-CRANKCASE
(Superseded to 11061-0743)

$13.99

$

In Stock, Qty 20+

0

14041A

Kawasaki 14041-0557

COVER-COMP
(Superseded to 14041-0588)

$164.99

$

Usually ships in 2-5 days

0

14041B

Kawasaki 14041-2056

COVER-COMP

$150.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-2138

COVER,BREATHER

$2.99

$

In Stock, Qty 7

0

16126

Kawasaki 16126-2247

VALVE,BREATHER
(Superseded to 16126-7014)

$0.99

$

In Stock, Qty 9

0

49120A

Kawasaki 49120-0722

CRANKCASE-COMP
(Superseded to 491200864)

$530.99

$

Usually ships in 2-5 days

0

49120B

Kawasaki 49120-2358

CRANKCASE-COMP
(Superseded to 49120-0864)

$530.99

$

Usually ships in 2-5 days

0

92043

$0.99

$

Usually ships in 2-5 days

0

92043A

$1.49

$

Usually ships in 2-5 days

0

92049

$10.99

$

In Stock, Qty 13

0

92049A

Kawasaki 92049-2273

SEAL-OIL,6X10X2.5

$2.99

$

In Stock, Qty 10

0

92049B

Kawasaki 92049-7008

SEAL-OIL,28-44-9 TC

$

$

Not available

92154A

$1.99

$

In Stock, Qty 6

0

92154B

$0.99

$

In Stock, Qty 20+

0

92154C

$3.49

$

Usually ships in 2-5 days

0

92154D

$1.49

$

Usually ships in 2-5 days

0

92154E

Kawasaki 92154-2028

BOLT,8X45
(Superseded to 92154-0821)

$1.99

$

In Stock, Qty 6

0

92171

$7.49

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-2108

SCREW,5X10

$3.49

$

In Stock, only 4 left!

0

92192

Kawasaki 92192-2184

TUBE,12X16X49

$

$

Not available
