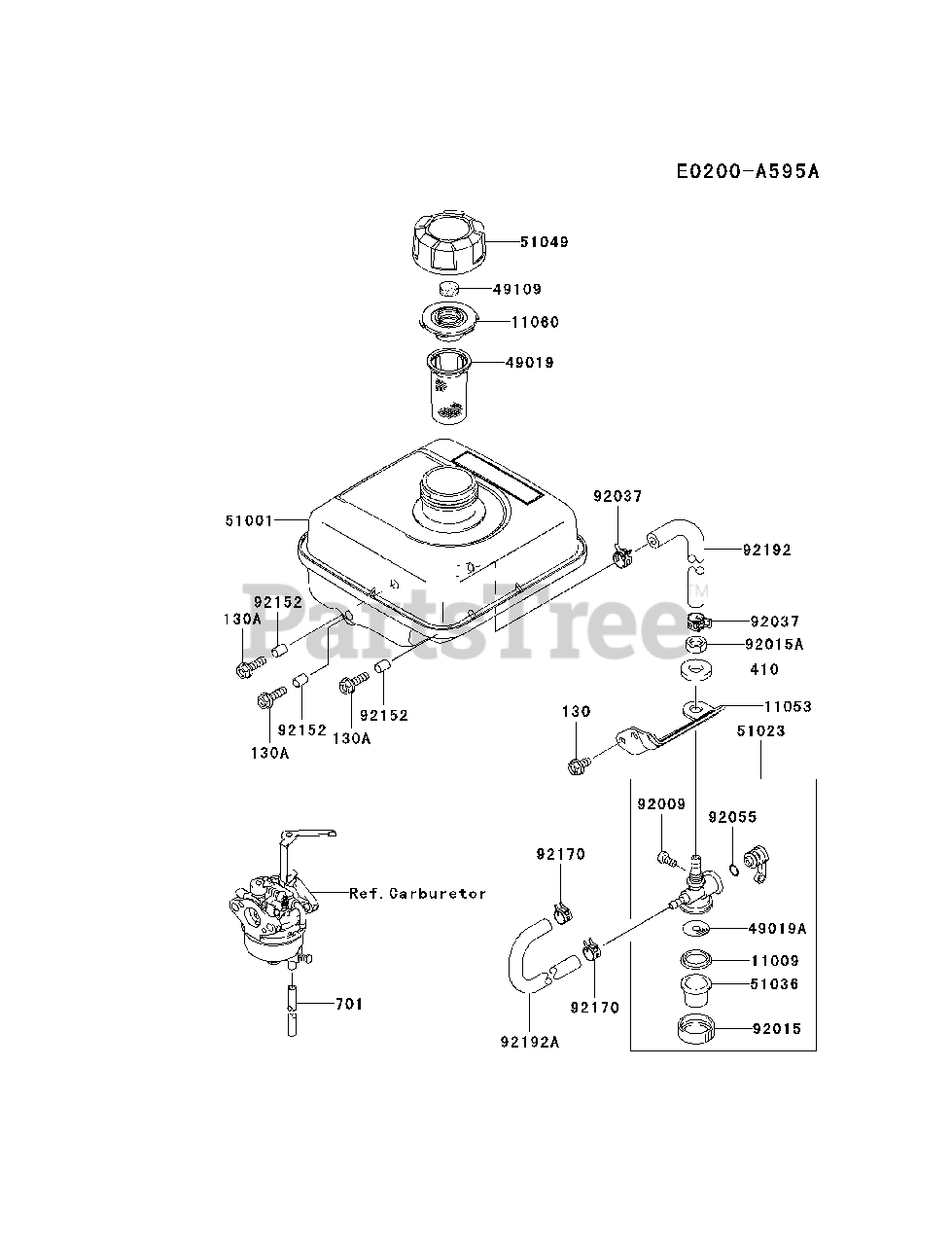

FJ100D-DS00 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title
11009

Kawasaki 11009-2021

GASKET
(Superseded to 313650-6518-02)

$

$

Not available

11053

Kawasaki 11053-2100

BRACKET
(Superseded to 11055-2004)

$

$

Not available

11060

Kawasaki 11060-2145

GASKET
(Superseded to 11061-7036)

$8.99

$

In Stock, Qty 19

0

49019

Kawasaki 49019-2052

FILTER-FUEL
(Superseded to 313592-6661-00)

$6.49

$

In Stock, only 1 left!

0

49019A

Kawasaki 49019-2095

FILTER-FUEL
(Superseded to 49019-2101)

$6.49

$

In Stock, Qty 7

0

49109

Kawasaki 49109-2054

ELEMENT-BREATHER,TANK
(Superseded to 49109-2001)

$0.99

$

In Stock, only 1 left!

0

51001

Kawasaki 51001-2326

TANK-COMP-FUEL

$

$

Not available

51023

Kawasaki 51023-2131

TAP-ASSY
(Superseded to 51023-2001)

$

$

Not available

51036

Kawasaki 51036-2063

CUP,FUEL TAP
(Superseded to 51036-2001)

$3.99

$

In Stock, only 3 left!

0

51049

Kawasaki 51049-2087

CAP-TANK
(Superseded to 51049-0707)

$8.49

$

In Stock, Qty 16

0

92009

Kawasaki 92009-2004

SCREW
(Superseded to 313650-6517-00)

$0.99

$

In Stock, only 3 left!

0

$6.49

$

Usually ships in 2-5 days

0

92015A

$1.49

$

In Stock, Qty 9

0

92037

Kawasaki 92037-1181

CLAMP,HOSE CLIP

$3.99

$

Usually ships in 2-5 days

0

92055

$

$

Not available

92152

Kawasaki 92152-2080

COLLAR
(Superseded to 92152-2100)

$1.99

$

In Stock, only 1 left!

0

92170

$1.49

$

In Stock, Qty 14

0

92192

Kawasaki 92192-2109

TUBE,6.2X13.2X230

$

$

Not available

92192A

Kawasaki 92192-2119

TUBE,4X11X180

$15.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130G0620

BOLT-FLANGED,6X20
(Superseded to 130BA0620)

$1.99

$

In Stock, only 2 left!

0

410

Kawasaki 410B1000

W-PLAIN-S,10MM
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0

701

Kawasaki 701Q051000

TUBE-PVC
(Superseded to 701Q0575)

$3.49

$

Usually ships in 2-5 days

0
