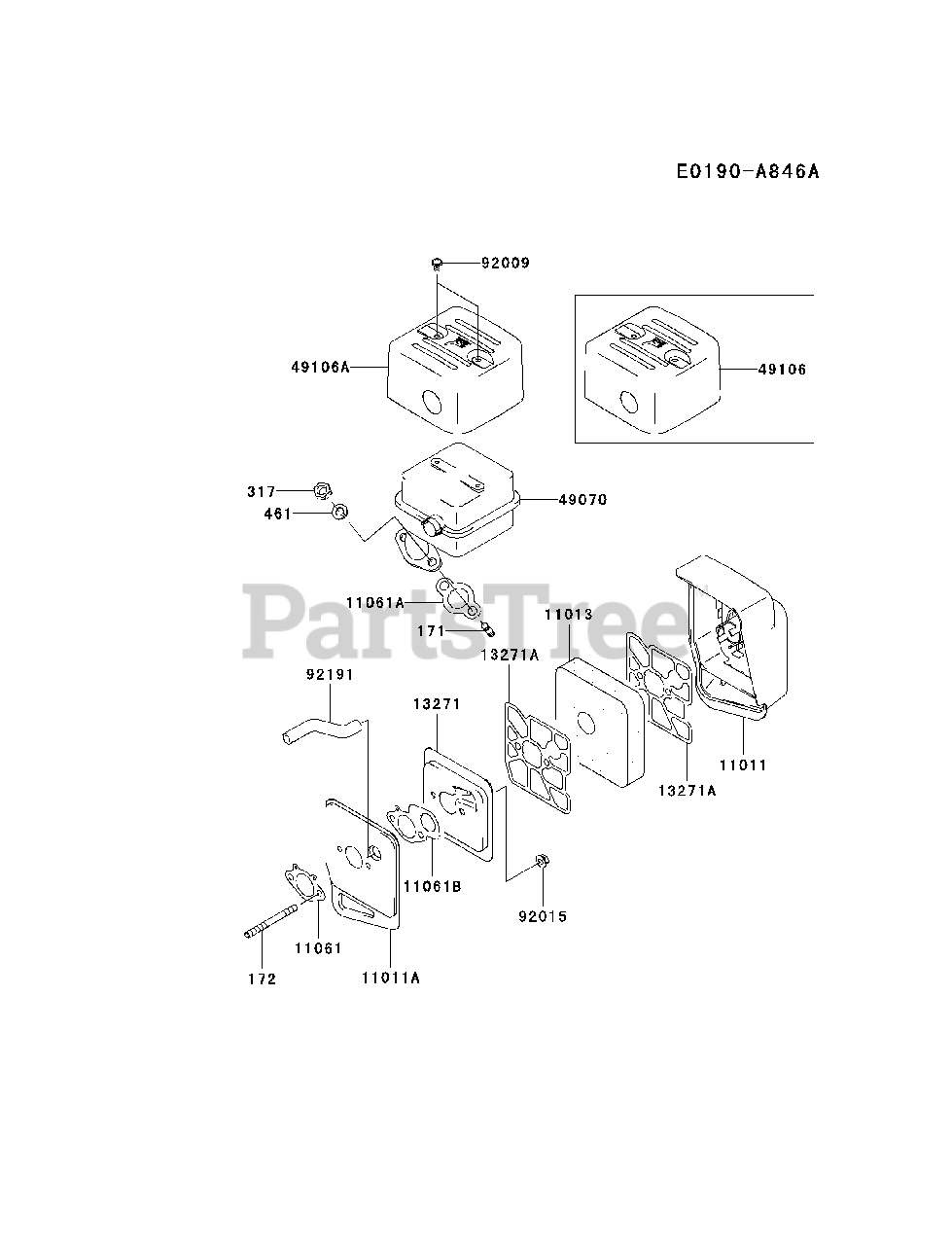

FJ100D-AS00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11011

Kawasaki 11011-2329

CASE-AIR FILTER,UPP

$14.99

$

In Stock, only 1 left!

0

11011A

Kawasaki 11011-2336

CASE-AIR FILTER,LOW

$

$

Not available

11013

Kawasaki 11013-2198

ELEMENT-AIR FILTER

$

$

Not available

11061

Kawasaki 11061-2101

GASKET,CARB

$

$

Not available

11061A

Kawasaki 11061-2102

GASKET,MUFFLER

$1.49

$

Usually ships in 2-5 days

0

11061B

$1.99

$

Usually ships in 2-5 days

0

13271

$

$

Not available

13271A

Kawasaki 13271-2204

PLATE,ELEMENT

$

$

Not available

49070

Kawasaki 49070-2746

MUFFLER-COMP
(Superseded to 49070-2796)

$56.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-2655

COVER-MUFFLER
(Superseded to 49106-2671)

$

$

Not available

49106A

Kawasaki 49106-2666

COVER-MUFFLER
(Superseded to 49106-2655)

$

$

Not available

92009

$0.99

$

In Stock, only 4 left!

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-2156

TUBE,7X12X105

$

$

Not available

171

Kawasaki 171G0816

BOLT-STUD,8X16
(Superseded to 171BA0816)

$1.99

$

In Stock, only 3 left!

0

172

Kawasaki 172G0670

BOLT-STUD,6X70
(Superseded to 172BA0670)

$2.49

$

Usually ships in 2-5 days

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461F0800

WASHER-SPRING,8MM
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
