FHSC 52 (59A40134727) - Cub Cadet Yanmar Front Hitch for Sc Series Compact Tractors Front Hitch Parts Diagram

Front Hitch for Sc Series Compact Tractors

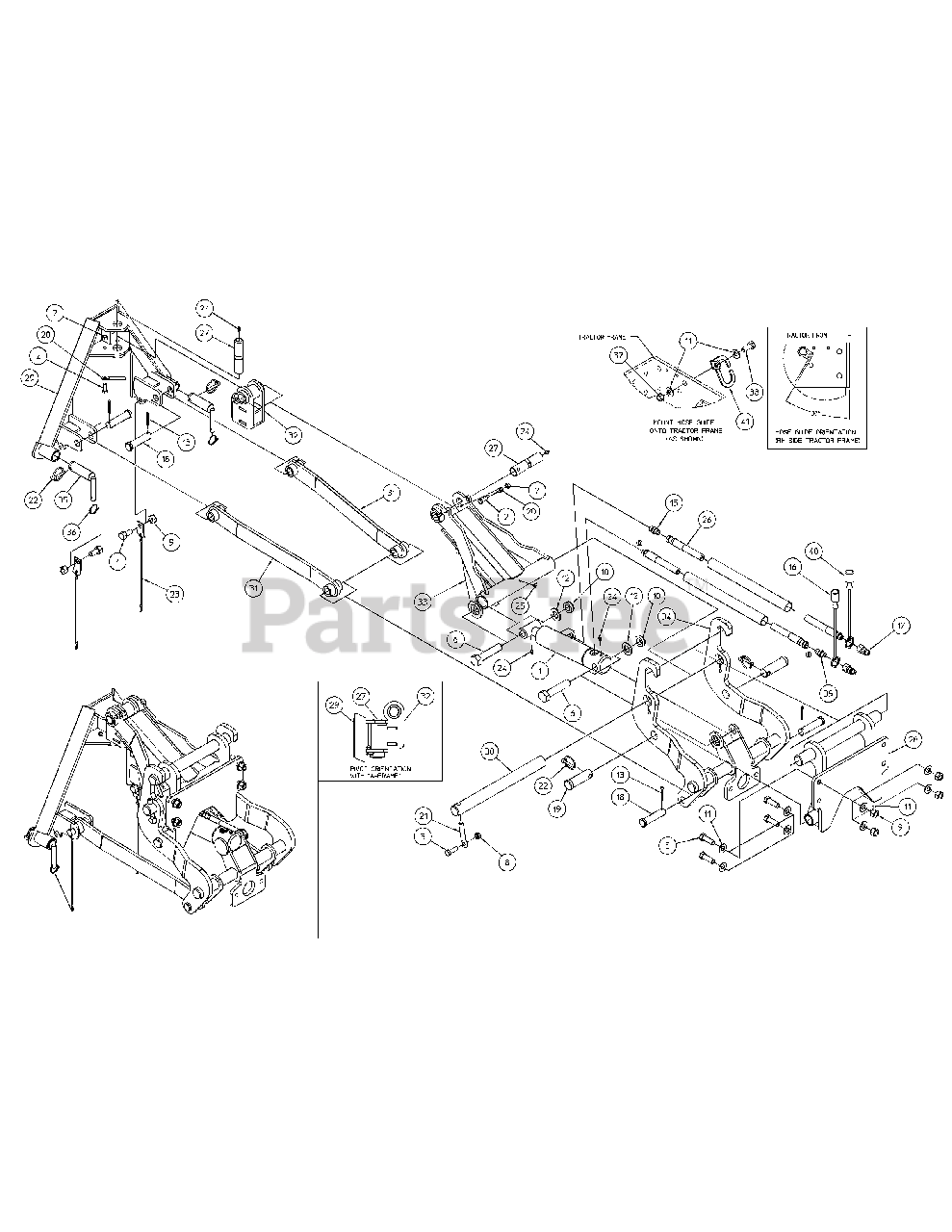

Front Hitch Parts Diagram

  • Title

1

Cub Cadet YS-000255

ASSY-HYDRAULIC CYLINDER (LIFT)

$

$

Not available

2

Cub Cadet YS-006790

HEX HEAD CAP SCREW 5/16-24X.875 G5 ZY

$

$

Not available

3

Cub Cadet YS-006859

HEX HEAD CAP SCREW 3/8-24X1.25 G5 ZY

$

$

Not available

4

Cub Cadet YS-007012

HEX HEAD CAP SCREW 1/2-20X1.0 G5 SAE ZY

$

$

Not available

5

Cub Cadet YS-007028

HEX HEAD CAP SCREW 1/2-20X1.50 G5 ZY

$

$

Not available

6

Cub Cadet YS-007254

HEX HEAD CAP SCREW 3/4-16X3.75 G5

$

$

Not available

7

Cub Cadet YS-007437

NUT HEX 5/16-24 ZY LOCK

$

$

Not available

8

Cub Cadet YS-007466

NUT HEX 3/8-24 ZY LOCK

$

$

Not available

9

Cub Cadet YS-007515

NUT HEX 1/2-20 G5 ZY LOCK

$

$

Not available

10

Cub Cadet YS-007576

NUT HEX 3/4-16 ZY JAM

$

$

Not available

11

Cub Cadet YS-008164

FLAT WASHER 1/2 SAE HARD ZY

$

$

Not available

12

Cub Cadet YS-008192

FLAT WASHER 3/4 .812X1.469X.134 SAE ZY

$

$

Not available

13

Cub Cadet YS-008582

PIN-COTTER 3/16X1.25 ZY HARDENED

$

$

Not available

15

Cub Cadet YS-011194

UNION STRAIGHT 06MX06M ORBXJIC

$

$

Not available

16

Cub Cadet YS-024517

CAP-DUST (BLUE)

$

$

Not available

17

Cub Cadet YS-011313

COUPLER-NOSE

$

$

Not available

18

Cub Cadet YS-013461

PIN-CLEVIS (3/4 DIA X 3)

$

$

Not available

19

Cub Cadet YS-013464

PIN-CLEVIS (1 DIA X 3)

$

$

Not available

20

Cub Cadet YS-013473

PIN-RETAINER

$

$

Not available

21

Cub Cadet YS-013474

PIN-RETAINER

$

$

Not available

22

Cub Cadet YS-013491

LINCH PIN,1/4 DIA X 1.25 SHAFT

$

$

Not available

23

Cub Cadet YS-014172

CABLE ASSEMBLY

$

$

Not available

24

Cub Cadet YS-014505

FITTING-STRAIGHT (GREASE) 1/4-28

$

$

Not available

25

Cub Cadet YS-014521

FITTING-45 DEG (GREASE) 1/4-28

$

$

Not available

26

Cub Cadet YS-017148

HOSE-HYD WITH SLEEVE (1/4 X 63)

$

$

Not available

27

Cub Cadet YS-616167

PIN-PIVOT (BUCKET CYL-KNEE)

$

$

Not available

28

Cub Cadet YS-754065

WELDMENT-HANGER (SC)

$

$

Not available

29

Cub Cadet YS-754120

WELDMENT- MOUNT (A-FRAME)

$

$

Not available

30

Cub Cadet YS-754159

SHAFT-PIVOT

$

$

Not available

31

Cub Cadet YS-754170

WELDMENT-LINK

$

$

Not available

32

Cub Cadet YS-754175

WELDMENT-PIVOT

$

$

Not available

33

Cub Cadet YS-754180

WELDMENT-PIVOT LINK

$

$

Not available

34

Cub Cadet YS-754250

WELDMENT-HITCH FRAME (SC)

$

$

Not available

35

Cub Cadet YS-849110

WELDMENT-PIN

$

$

Not available

36

Cub Cadet YS-M88183

RING-LOCKING

$

$

Not available

37

Cub Cadet YS-007493

NUT HEX M12-1.75 G8.8 ZY

$

$

Not available

38

Cub Cadet YS-018653

HEX HEAD CAP SCREW M12X1.75X30 G10.9 ZY FTHD

$

$

Not available

39

Cub Cadet YS-024116

UNION STRAIGHT 06MX06M ORBXJIC

$

$

Not available

40

Cub Cadet YS-024518

CAP-DUST (RED)

$

$

Not available

41

Cub Cadet YS-754256

PLATE-HOSE GUIDE

$

$

Not available
