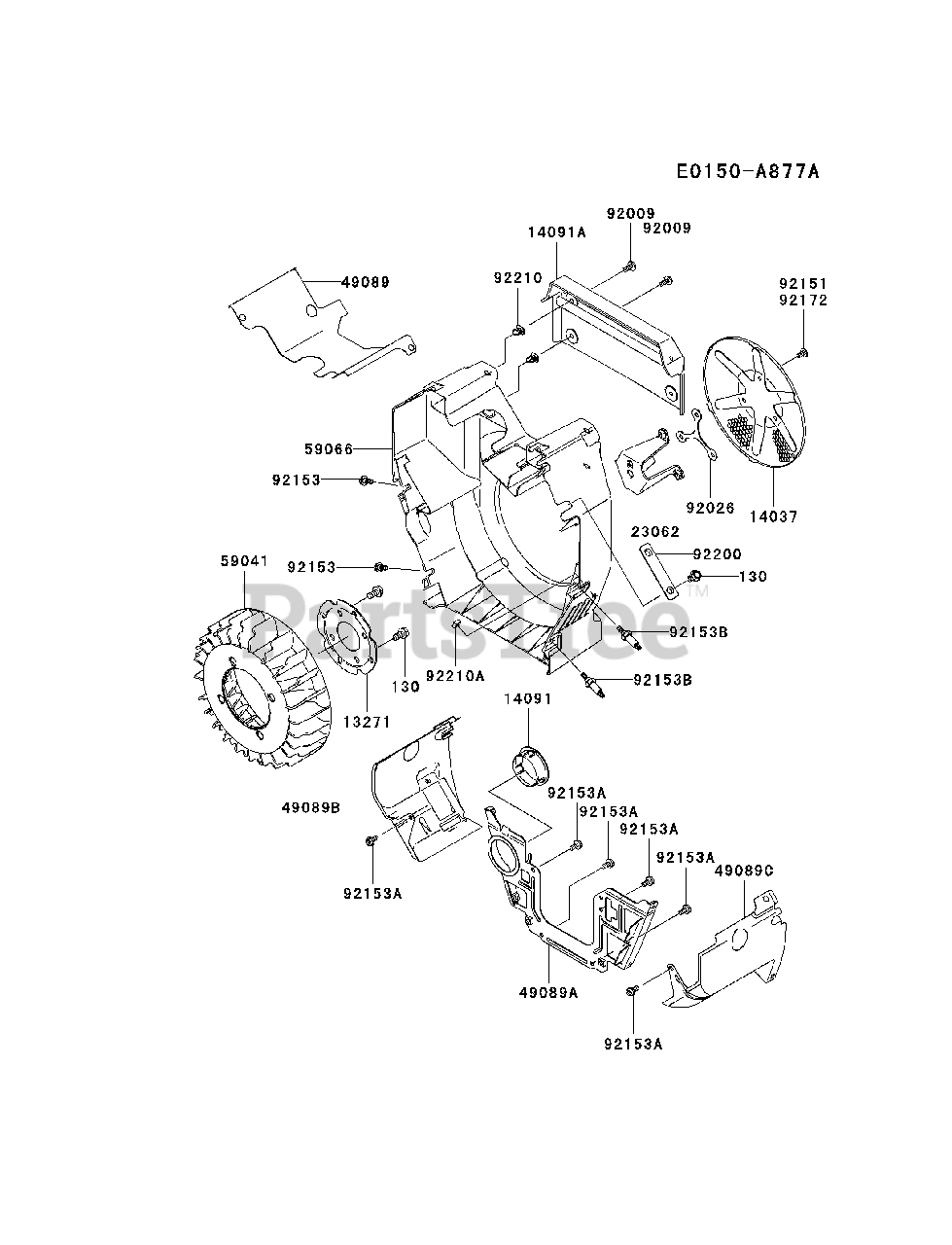

FH770D-AS06 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

13271

Kawasaki 13271-7015

PLATE

$5.49

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7008

SCREEN
(Superseded to 14037-7008-9H)

$35.99

$

In Stock, Qty 10

0

14091

Kawasaki 14091-7002

COVER

$3.49

$

In Stock, only 2 left!

0

14091A

Kawasaki 14091-7047

COVER

$14.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-7007

BRACKET-COMP

$26.99

$

Usually ships in 2-5 days

0

49089

Kawasaki 49089-7050

SHROUD-ENGINE

$13.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-7056

SHROUD-ENGINE
(Superseded to 49089-7027)

$22.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7058

SHROUD-ENGINE

$24.99

$

Usually ships in 2-5 days

0

49089C

Kawasaki 49089-7059

SHROUD-ENGINE

$31.99

$

Usually ships in 2-5 days

0

59041

Kawasaki 59041-7004

FAN

$

$

Not available

59066

Kawasaki 59066-7034

HOUSING-FAN

$

$

Not available

92009

Kawasaki 92009-7009

SCREW

$1.99

$

Usually ships in 2-5 days

0

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 18

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92153B

Kawasaki 92153-7071

BOLT

$4.49

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-7029

SCREW,SOCKET,6X12

$1.49

$

In Stock, only 3 left!

0

92200

Kawasaki 92200-7011

WASHER

$5.99

$

In Stock, only 1 left!

0

92210

Kawasaki 92210-7011

NUT

$1.99

$

Usually ships in 2-5 days

0

92210A

Kawasaki 92210-7022

NUT,M6

$1.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0
