FH770D-AS05 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

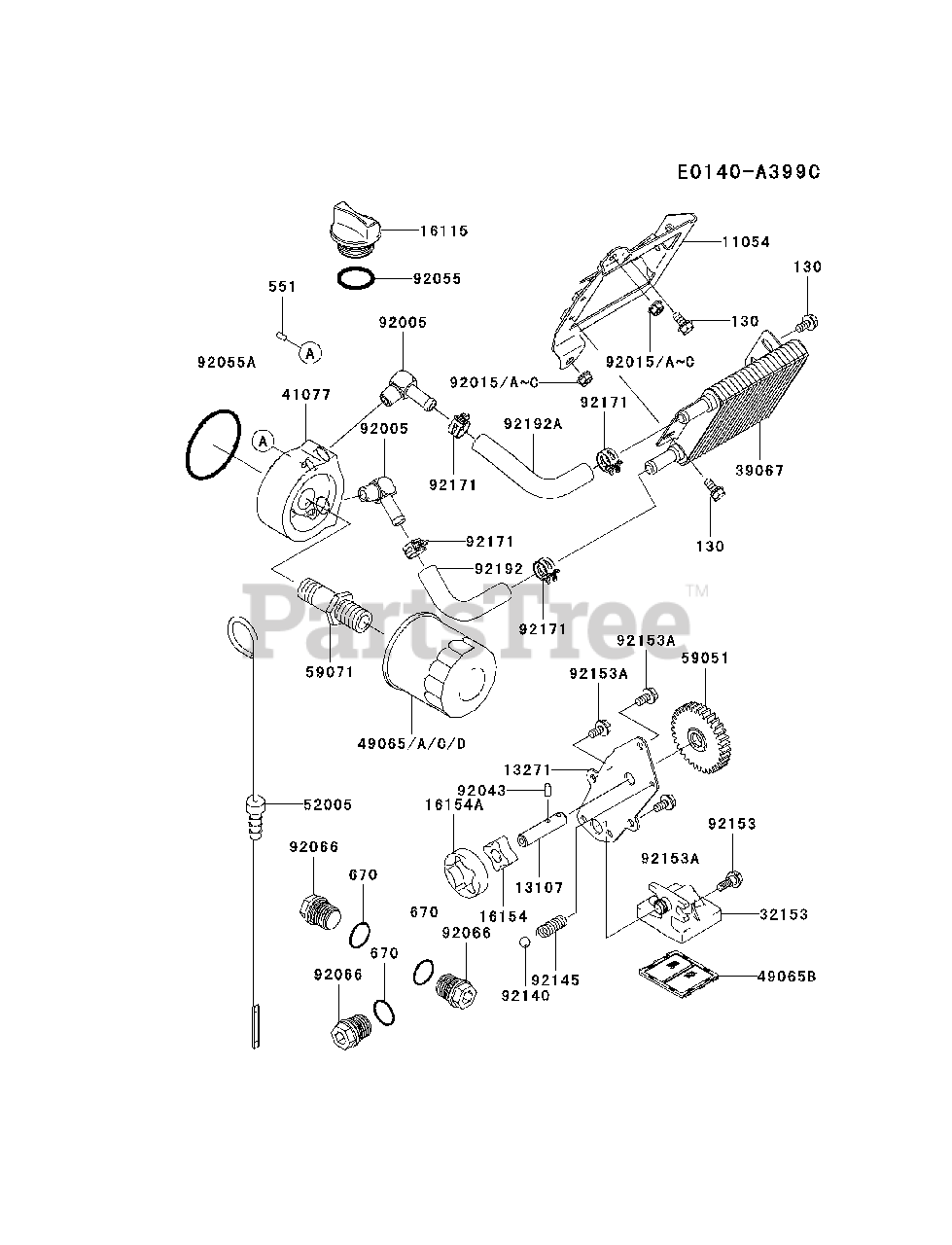

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11054

Kawasaki 11054-7001

BRACKET

$

$

Not available

13107

Kawasaki 13107-7009

SHAFT
(Superseded to 13107-0749)

$2.49

$

In Stock, only 3 left!

0

13271

Kawasaki 13271-7014

PLATE

$4.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-7001

CAP-OIL FILLER

$2.99

$

In Stock, only 3 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, only 2 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 2 left!

0

32153

Kawasaki 32153-7002

PIPE

$4.99

$

In Stock, Qty 11

0

39067

Kawasaki 39067-7006

COOLER-OIL

$133.99

$

Usually ships in 2-5 days

0

41077

Kawasaki 41077-7003

ADAPTER

$78.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2078

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

49065B

Kawasaki 49065-7005

FILTER-OIL
(Superseded to 49065-0717)

$3.99

$

In Stock, Qty 11

0

52005

Kawasaki 52005-7003

GAUGE

$24.99

$

In Stock, only 2 left!

0

59051

Kawasaki 59051-7011

GEAR-SPUR

$65.99

$

In Stock, only 1 left!

0

59071

Kawasaki 59071-7009

JOINT
(Superseded to 59071-0721)

$10.99

$

In Stock, only 3 left!

0

92005

Kawasaki 92005-7003

FITTING

$43.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92043

Kawasaki 92043-7003

PIN

$

$

Not available

92055

Kawasaki 92055-7004

RING-O

$0.99

$

In Stock, Qty 6

0

92055A

Kawasaki 92055-7006

RING-O,ID=58

$2.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7003

PLUG
(Superseded to 920660774)

$5.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

BALL

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-7046

SPRING

$0.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 92171-7020

CLAMP

$5.99

$

In Stock, only 1 left!

0

92192

Kawasaki 92192-7026

TUBE

$36.99

$

In Stock, only 1 left!

0

92192A

Kawasaki 92192-7027

TUBE

$36.99

$

In Stock, only 2 left!

0

130

Kawasaki 130AA0612

BOLT-FLANGED,6X12
(Superseded to 130B0612)

$0.99

$

In Stock, Qty 20+

0

551

Kawasaki 551A0408

PIN-DOWEL,4X8

$0.99

$

Usually ships in 2-5 days

0

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
