FH770D-AS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

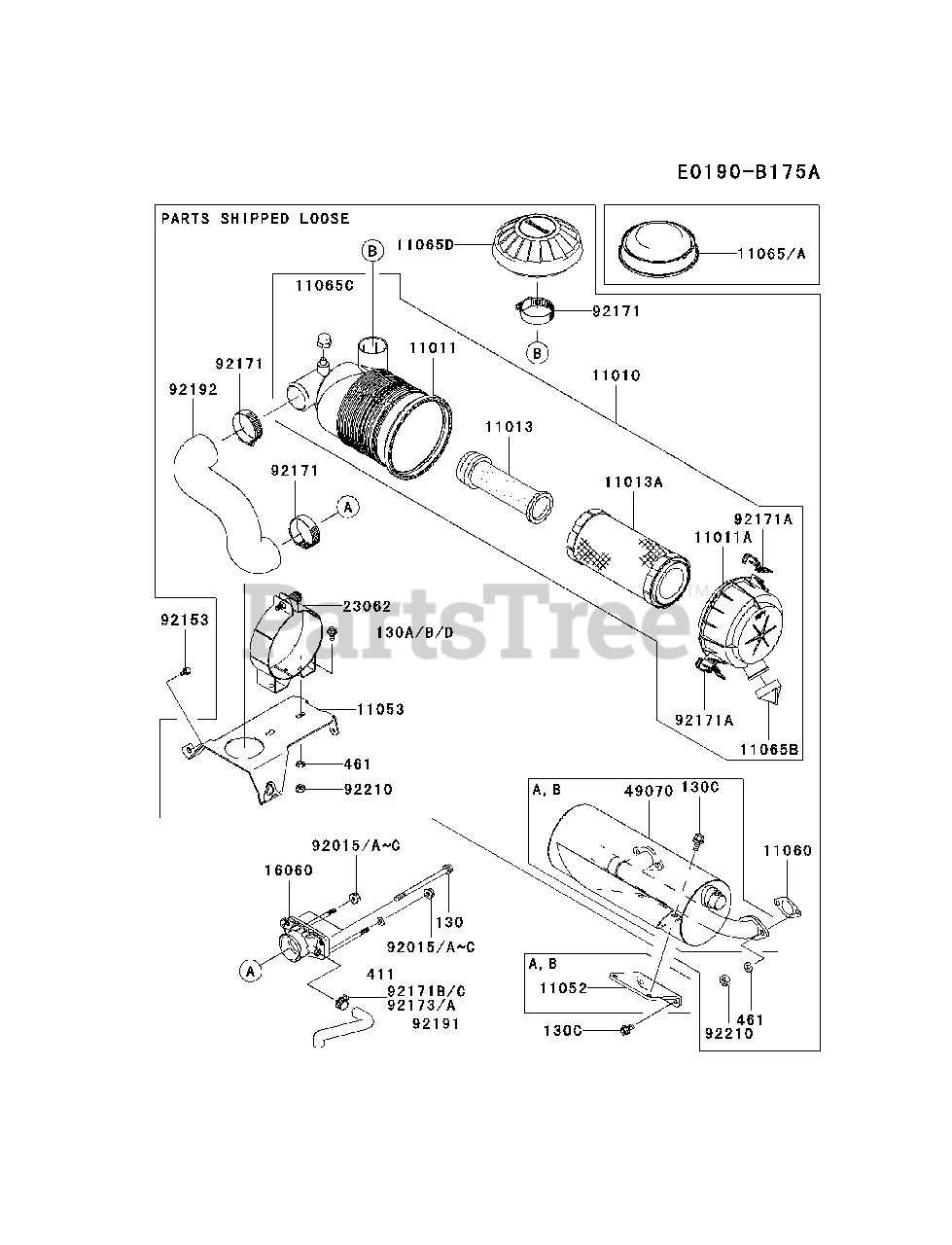

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11010

Kawasaki 11010-7011

FILTER-ASSY-AIR
(Superseded to 11010-7032)

$

$

Not available

11011

Kawasaki 11011-7013

CASE-AIR FILTER
(Superseded to 11011-7059)

$75.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7014

CASE-AIR FILTER

$54.99

$

In Stock, only 3 left!

0

11013

Kawasaki 11013-7019

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11052

$12.99

$

Usually ships in 2-5 days

0

11053

Kawasaki 11053-7002

BRACKET
(Superseded to 11057-0415)

$35.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, Qty 20+

0

11065B

$19.99

$

In Stock, Qty 20+

0

11065C

$10.99

$

In Stock, only 1 left!

0

16060

Kawasaki 16060-7022

PIPE-INTAKE
(Superseded to 16060-0731)

$

$

Not available

23062

Kawasaki 23062-7009

BRACKET-COMP

$44.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7023

MUFFLER-COMP

$364.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92153

$

$

Not available

92171

Kawasaki 92171-7007

CLAMP
(Superseded to 92173-7010)

$8.49

$

In Stock, Qty 14

0

92171A

$12.99

$

In Stock, Qty 6

0

92171B

Kawasaki 92171-7013

CLAMP
(Superseded to 921737003)

$2.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7032

TUBE,BREATHER

$6.99

$

In Stock, Qty 11

0

92192

$53.99

$

Usually ships in 2-5 days

0

92210

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA06105

BOLT-FLANGED,6X105
(Superseded to 130B06105)

$2.49

$

In Stock, Qty 7

0

130B

Kawasaki 130AA0814

BOLT-FLANGED,8X14
(Superseded to 130B0814)

$

$

Not available

130C

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130D

Kawasaki 130B0814

BOLT-FLANGED,8X14

$

$

Not available

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
