FH770D-AS04 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

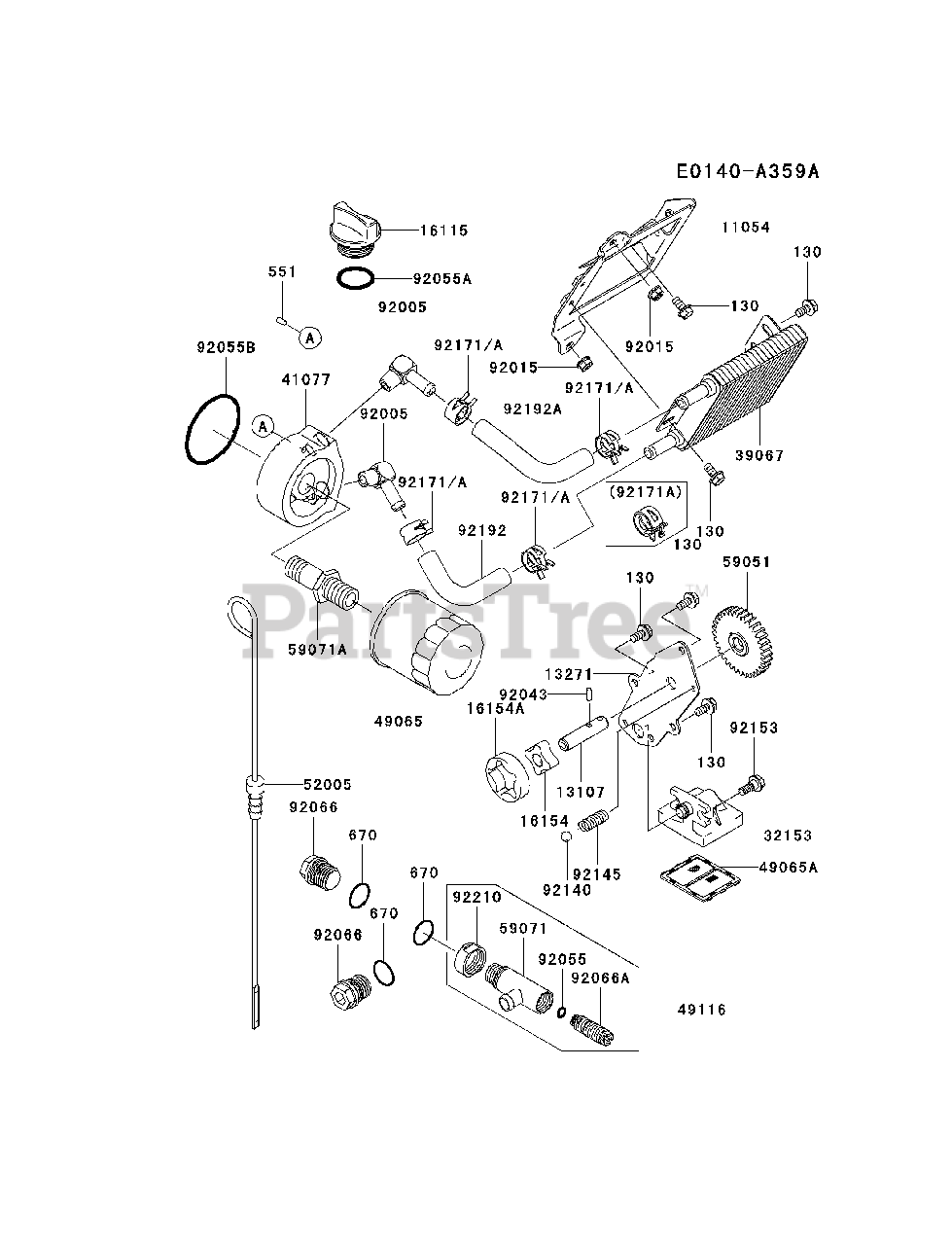

LUBRICATION-EQUIPMENT Parts Diagram

  • Title
11054

$

$

Not available

13107

Kawasaki 13107-7009

SHAFT
(Superseded to 13107-0749)

$2.49

$

In Stock, only 3 left!

0

13271

$4.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-7001

CAP-OIL FILLER

$2.99

$

In Stock, only 3 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, only 2 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 2 left!

0

32153

$4.99

$

In Stock, Qty 11

0

39067

Kawasaki 39067-7006

COOLER-OIL

$133.99

$

Usually ships in 2-5 days

0

41077

$78.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2078

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

49065A

Kawasaki 49065-7005

FILTER-OIL
(Superseded to 49065-0717)

$3.99

$

In Stock, Qty 11

0

49116

Kawasaki 49116-7001

VALVE-ASSY
(Superseded to 49116-7003)

$

$

Not available

52005

$24.99

$

In Stock, only 2 left!

0

59051

$65.99

$

In Stock, only 1 left!

0

59071

$

$

Not available

59071A

Kawasaki 59071-7009

JOINT
(Superseded to 59071-0721)

$10.99

$

In Stock, only 3 left!

0

92005

$43.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

$

$

Not available

92055

Kawasaki 92055-7002

RING-O,6MM

$4.99

$

In Stock, Qty 19

0

92055A

$0.99

$

In Stock, Qty 6

0

92055B

Kawasaki 92055-7006

RING-O,ID=58

$2.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7003

PLUG
(Superseded to 920660774)

$5.49

$

In Stock, Qty 20+

0

92066A

$4.49

$

In Stock, Qty 20+

0

92140

$1.49

$

In Stock, Qty 13

0

92145

$0.99

$

Usually ships in 2-5 days

0

92153

$4.49

$

In Stock, Qty 20+

0

92171

Kawasaki 92171-7019

CLAMP
(Superseded to 92171-7020)

$5.99

$

In Stock, only 1 left!

0

92171A

$5.99

$

In Stock, only 1 left!

0

92192

$36.99

$

In Stock, only 1 left!

0

92192A

$36.99

$

In Stock, only 2 left!

0

$2.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

551

Kawasaki 551A0408

PIN-DOWEL

$0.99

$

Usually ships in 2-5 days

0

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
