FH721D-GS08 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

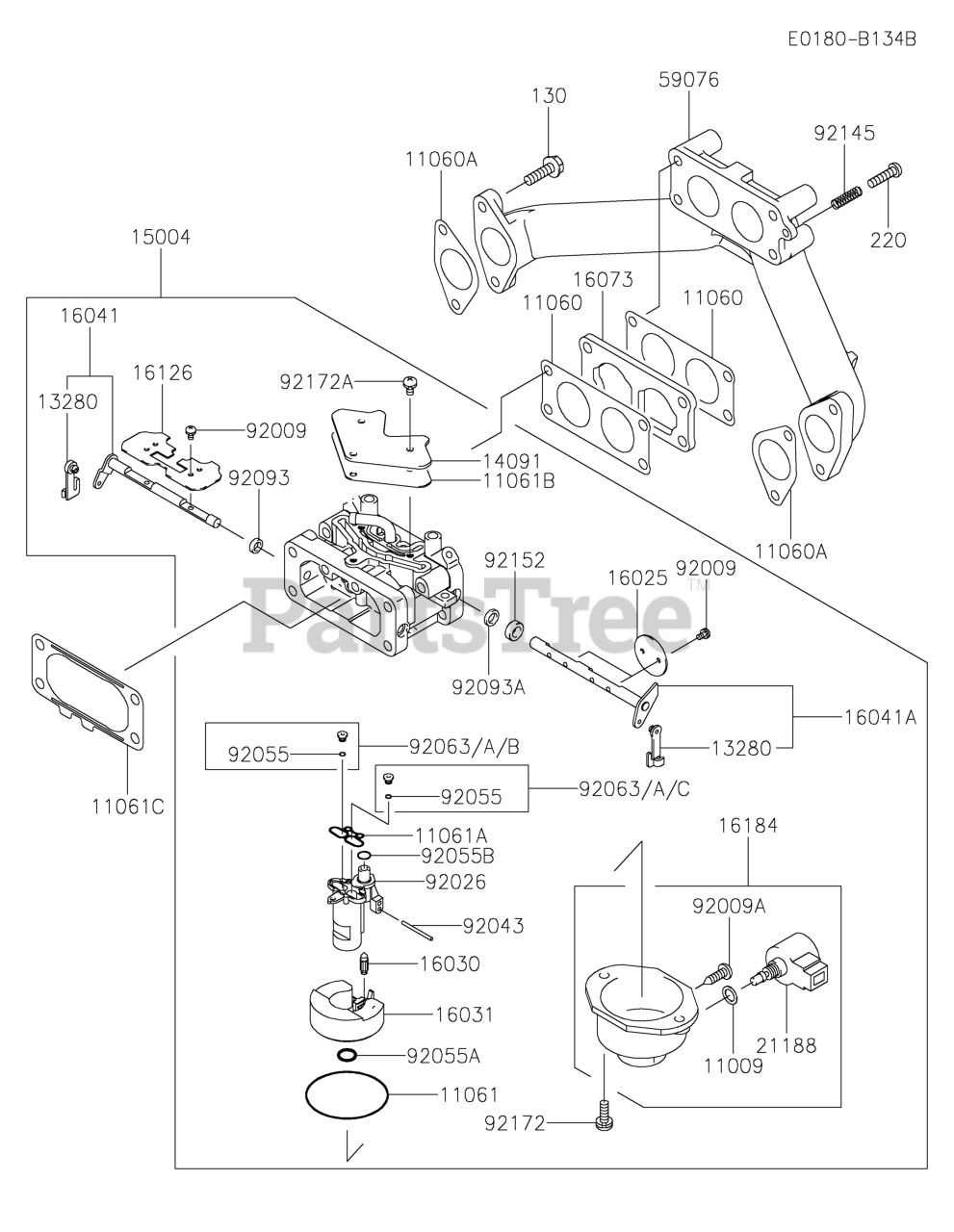

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2056

GASKET,SCREW-CARBURETOR
(Superseded to 317472-6145A)

$0.99

$

In Stock, Qty 15

0

11060

Kawasaki 11060-7010

GASKET,CARBURETOR

$2.49

$

In Stock, Qty 16

0

11060A

Kawasaki 11060-7011

GASKET,MANIFOLD

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-1286

GASKET,FLOAT CHAMBER

$2.49

$

In Stock, Qty 11

0

11061A

Kawasaki 11061-7037

GASKET,CARB SPACER

$6.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7039

GASKET

$4.49

$

In Stock, Qty 6

0

11061C

Kawasaki 11061-7042

GASKET,AIR FILTER
(Superseded to 11060-7025)

$3.49

$

In Stock, only 4 left!

0

13280

Kawasaki 13280-7004

HOLDER

$8.99

$

In Stock, Qty 20+

0

14091

Kawasaki 14091-7031

COVER

$14.99

$

Usually ships in 2-5 days

0

15004

Kawasaki 15004-1033

CARBURETOR-ASSY

$541.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-7010

VALVE-THROTTLE

$24.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 16

0

16031

Kawasaki 16031-7003

FLOAT

$44.99

$

Usually ships in 2-5 days

0

16041

Kawasaki 16041-0024

SHAFT-CARBURETOR,CHOKE

$46.99

$

Usually ships in 2-5 days

0

16041A

Kawasaki 16041-0034

SHAFT-CARBURETOR,THRO

$43.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-0874

INSULATOR

$4.99

$

In Stock, only 1 left!

0

16126

Kawasaki 16126-7015

VALVE

$15.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-0007

CHAMBER-ASSY-FLOAT

$338.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 21188-7003

SOLENOID

$95.99

$

In Stock, Qty 14

0

59076

Kawasaki 59076-0028

MANIFOLD-INTAKE

$79.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7006

SCREW,DRAIN

$1.49

$

In Stock, only 3 left!

0

92026

Kawasaki 92026-7011

SPACER

$8.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-7016

PIN,FLOAT

$2.49

$

In Stock, only 4 left!

0

92055

Kawasaki 92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055A

Kawasaki 92055-7016

RING-O

$2.49

$

In Stock, Qty 10

0

92055B

Kawasaki 92055-7024

RING-O

$0.99

$

In Stock, Qty 20+

0

92063

Kawasaki 92063-7013

JET-MAIN,#105

$20.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7014

JET-MAIN,#102

$20.99

$

Usually ships in 2-5 days

0

92063B

Kawasaki 92063-7106

JET-MAIN,#124

$22.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 92063-7111

JET-MAIN,#120

$19.99

$

Usually ships in 2-5 days

0

92093

Kawasaki 92093-0720

SEAL,D=5.9

$1.99

$

Usually ships in 2-5 days

0

92093A

Kawasaki 92093-7002

SEAL,D=6.9

$2.49

$

In Stock, Qty 7

0

92145

Kawasaki 92145-7005

SPRING

$0.99

$

In Stock, only 2 left!

0

92152

Kawasaki 92152-7005

COLLAR

$10.99

$

Usually ships in 2-5 days

0

92172

Kawasaki 92172-7005

SCREW,M5

$1.49

$

In Stock, only 2 left!

0

92172A

Kawasaki 92172-7006

SCREW,M4

$1.49

$

In Stock, only 4 left!

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

220

Kawasaki 220AA0520

SCREW-PAN-CROS,5X20
(Superseded to 220B0520)

$0.99

$

Usually ships in 2-5 days

0
