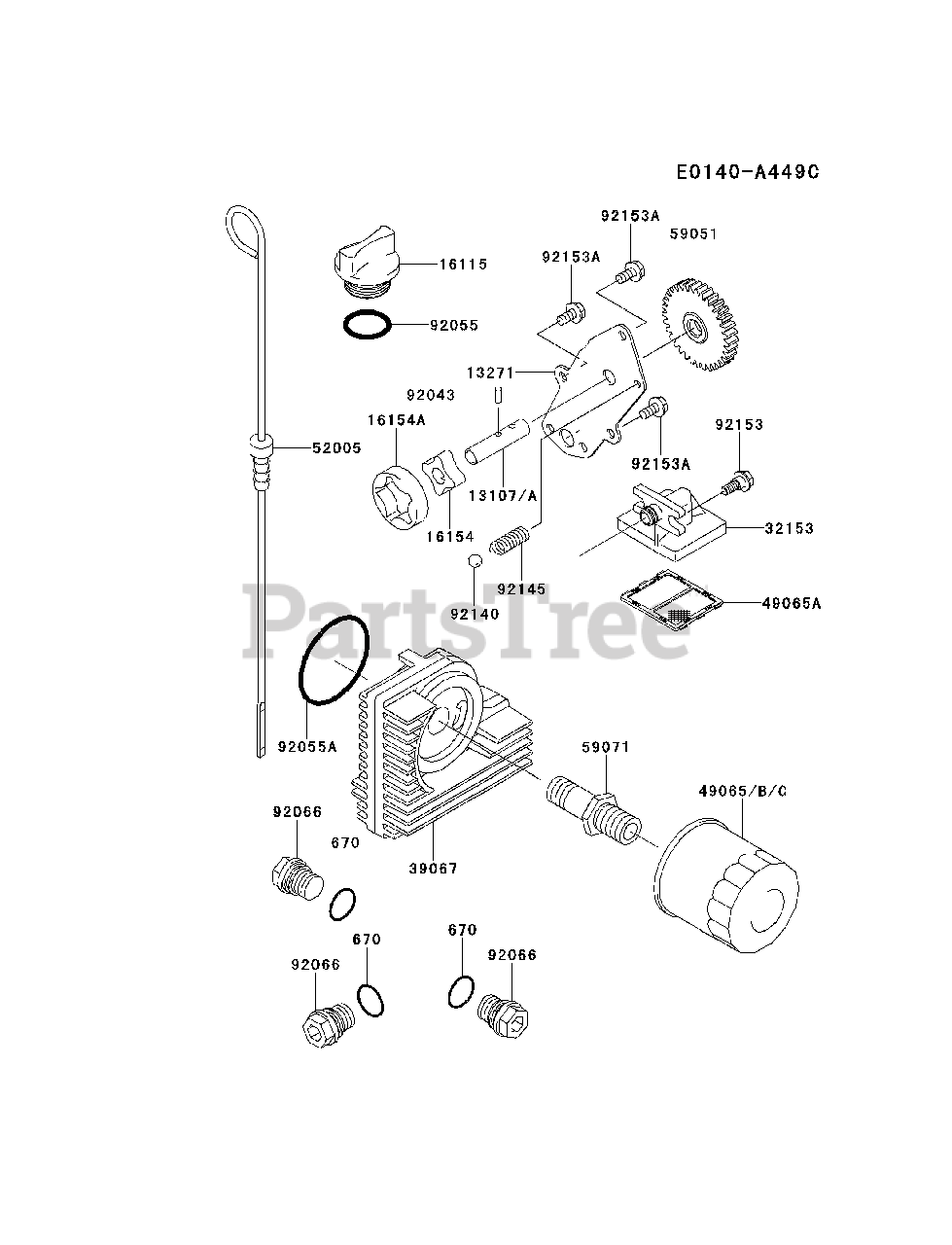

FH721D-FS01 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-0749

SHAFT
(Superseded to 13107-7009)

$2.49

$

In Stock, only 3 left!

0

13107A

Kawasaki 13107-7009

SHAFT
(Superseded to 13107-0749)

$2.49

$

In Stock, only 3 left!

0

13271

Kawasaki 13271-7014

PLATE

$4.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-7001

CAP-OIL FILLER

$2.99

$

In Stock, only 4 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, only 4 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 4 left!

0

32153

Kawasaki 32153-7002

PIPE

$4.99

$

In Stock, Qty 11

0

39067

Kawasaki 39067-7008

COOLER-OIL
(Superseded to 39067-7002)

$87.99

$

Usually ships in 2-5 days

0

49065A

Kawasaki 49065-7005

FILTER-OIL
(Superseded to 49065-0717)

$3.99

$

In Stock, Qty 11

0

49065B

Kawasaki 49065-7010

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

52005

Kawasaki 52005-7003

GAUGE

$24.99

$

In Stock, only 3 left!

0

59051

Kawasaki 59051-7011

GEAR-SPUR

$65.99

$

In Stock, only 1 left!

0

59071

Kawasaki 59071-7009

JOINT
(Superseded to 59071-0721)

$10.99

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-7003

PIN

$

$

Not available

92055

Kawasaki 92055-7004

RING-O

$0.99

$

In Stock, Qty 7

0

92055A

Kawasaki 92055-7006

RING-O,ID=58

$2.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7003

PLUG
(Superseded to 920660774)

$5.49

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7003

BALL

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-7002

SPRING

$

$

Not available

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
