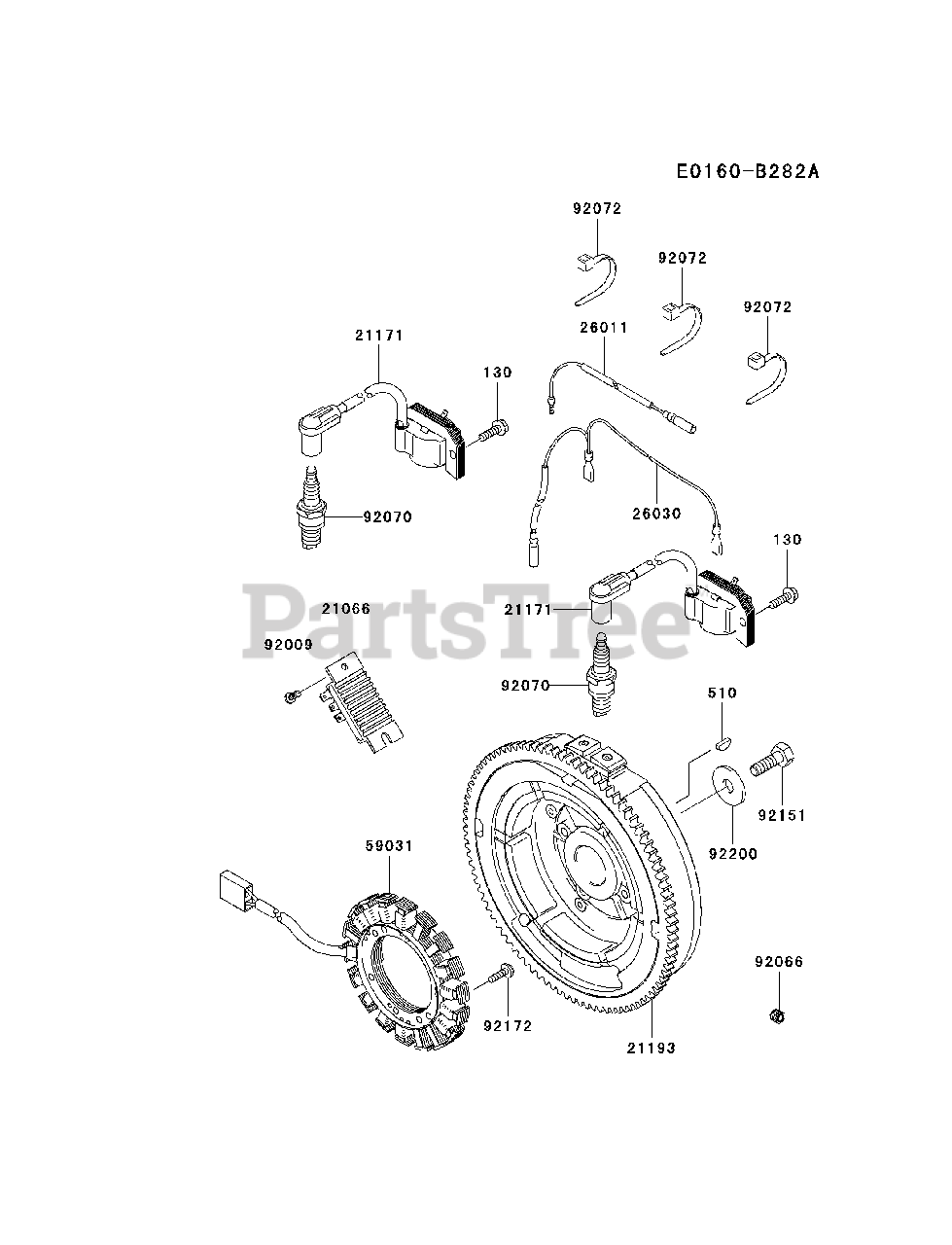

FH721D-AS11 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-7034

COIL-ASSY-IGNITION
(Superseded to 21171-7003)

$81.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-7030

FLYWHEEL-ASSY
(Superseded to 21193-7014)

$

$

Not available

26011

Kawasaki 26011-7008

WIRE-LEAD,L=540

$3.49

$

In Stock, only 4 left!

0

26030

Kawasaki 26030-7002

HARNESS

$10.99

$

In Stock, Qty 12

0

59031

Kawasaki 59031-7014

COIL-CHARGING
(Superseded to 59031-7009)

$128.99

$

In Stock, Qty 18

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, Qty 11

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, only 1 left!

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 7

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
