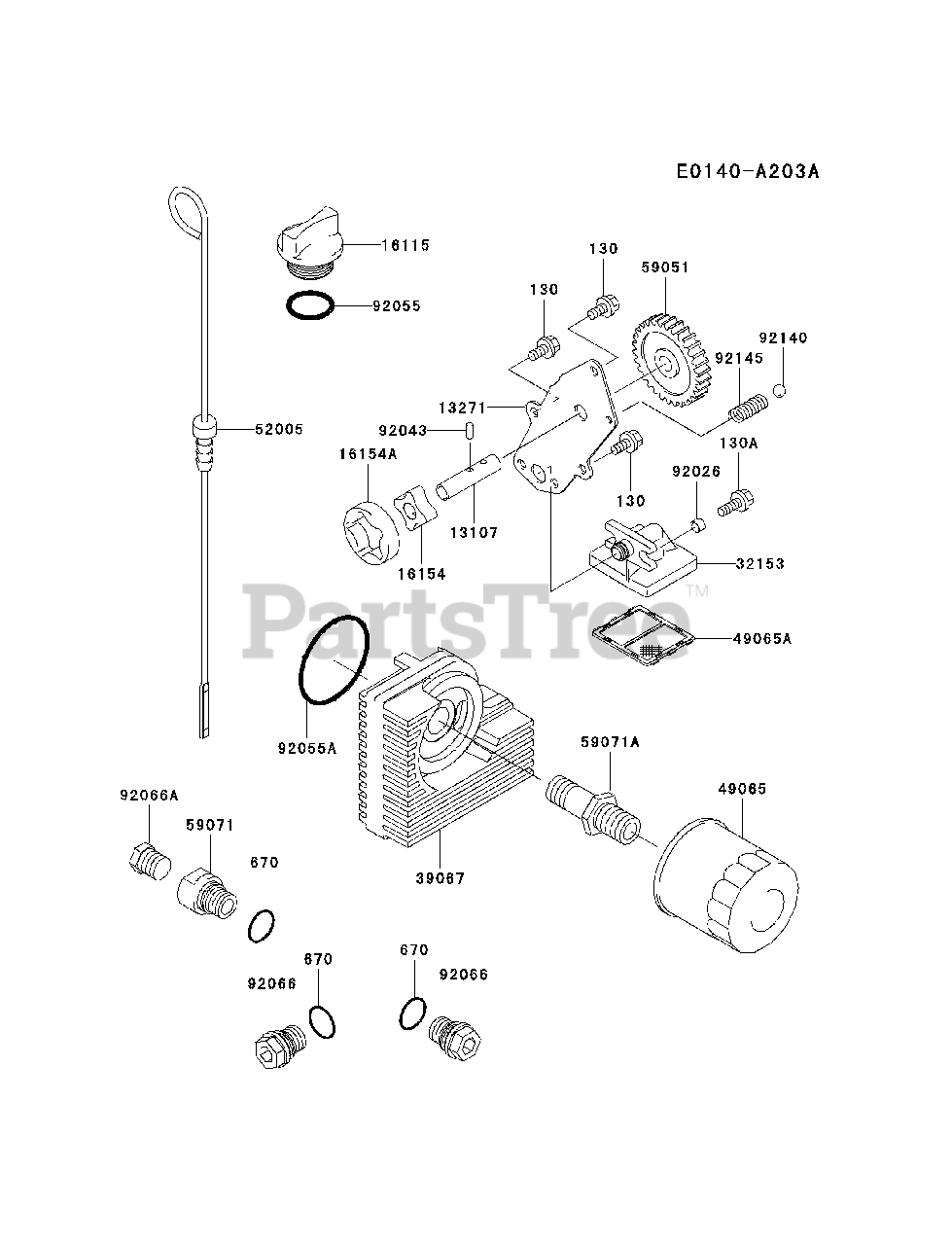

FH721D-AS06 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-7009

SHAFT
(Superseded to 13107-0749)

$2.49

$

In Stock, only 3 left!

0

13271

Kawasaki 13271-7014

PLATE

$4.49

$

Usually ships in 2-5 days

0

16115

Kawasaki 16115-7001

CAP-OIL FILLER

$2.99

$

In Stock, only 4 left!

0

16154

Kawasaki 16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, only 4 left!

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 4 left!

0

32153

Kawasaki 32153-7002

PIPE

$4.99

$

In Stock, Qty 11

0

39067

Kawasaki 39067-7001

COOLER-OIL
(Superseded to 39067-7002)

$87.99

$

Usually ships in 2-5 days

0

49065

Kawasaki 49065-2078

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

49065A

Kawasaki 49065-7005

FILTER-OIL
(Superseded to 49065-0717)

$3.99

$

In Stock, Qty 11

0

52005

Kawasaki 52005-7003

GAUGE

$24.99

$

In Stock, only 3 left!

0

59051

Kawasaki 59051-7004

GEAR-SPUR
(Superseded to 59051-6001)

$

$

Not available

59071

Kawasaki 59071-7004

JOINT
(Superseded to 59071-7023)

$8.99

$

In Stock, Qty 11

0

59071A

Kawasaki 59071-7009

JOINT
(Superseded to 59071-0721)

$10.99

$

In Stock, only 3 left!

0

92026

Kawasaki 92026-7001

SPACER,6.2X7.9X5
(Superseded to 92153-7007)

$4.49

$

In Stock, Qty 20+

0

92043

Kawasaki 92043-7003

PIN

$

$

Not available

92055

Kawasaki 92055-7004

RING-O

$0.99

$

In Stock, Qty 7

0

92055A

Kawasaki 92055-7006

RING-O

$2.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7003

PLUG
(Superseded to 920660774)

$5.49

$

In Stock, Qty 20+

0

92066A

Kawasaki 92066-7006

PLUG
(Superseded to 92066-0763)

$1.49

$

In Stock, only 3 left!

0

92140

Kawasaki 92140-7003

BALL

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-7002

SPRING

$

$

Not available

130

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

BOLT-FLANGED
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670D2016

O RING,16MM
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0
