FH680V-GS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

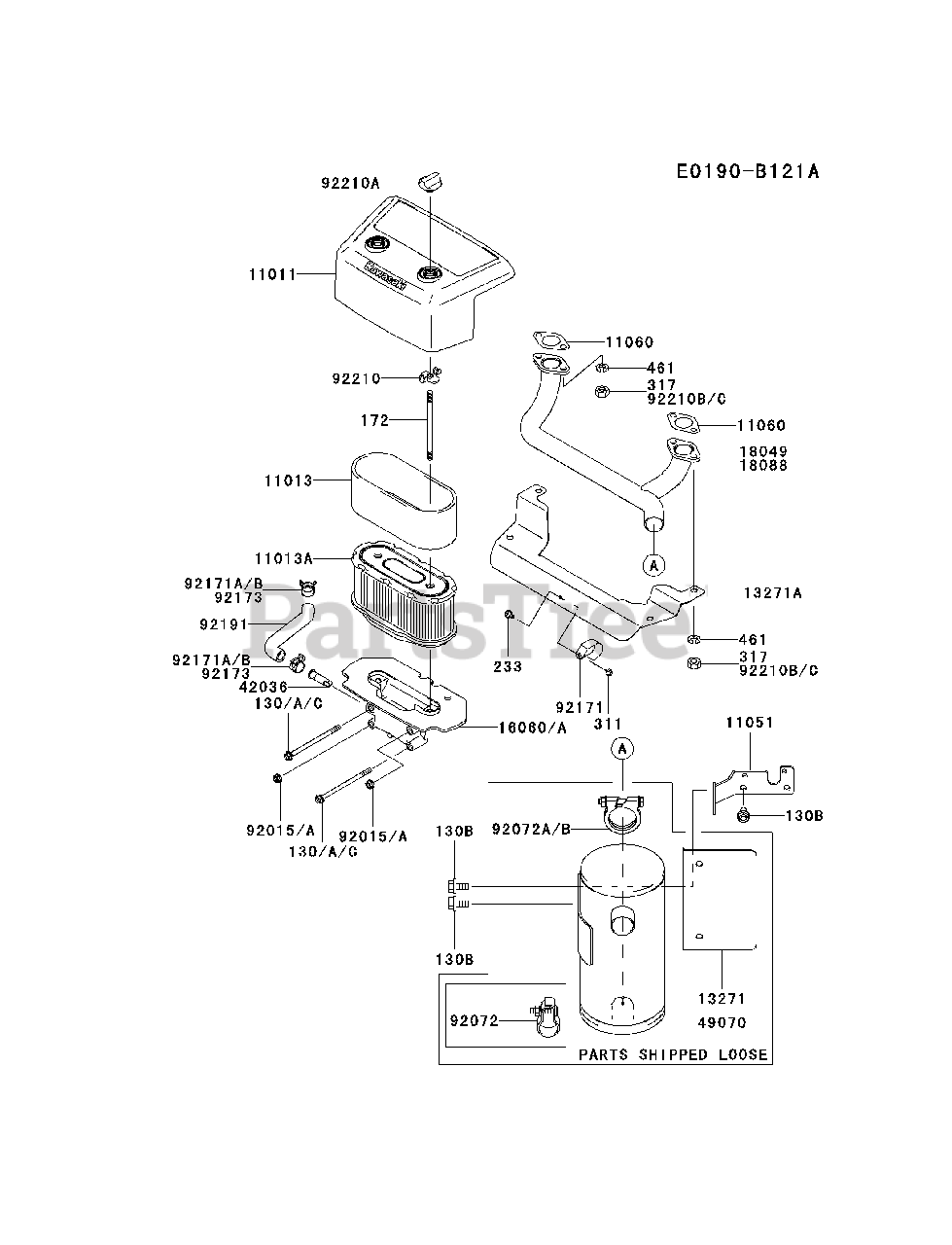

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7042

CASE-AIR FILTER

$29.99

$

In Stock, only 2 left!

0

11013

Kawasaki 11013-7009

ELEMENT-AIR FILTER
(Superseded to 11013-7003)

$7.49

$

In Stock, Qty 11

0

11013A

Kawasaki 11013-7027

ELEMENT-AIR FILTER

$23.99

$

In Stock, Qty 20+

0

11051

Kawasaki 11051-7002-9H

BRACKET

$10.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7008-9X

PLATE

$22.99

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-7009-9X

PLATE
(Superseded to 13271-7009)

$42.99

$

Usually ships in 2-5 days

0

16060A

Kawasaki 16060-7032

PIPE-INTAKE

$39.99

$

Usually ships in 2-5 days

0

18088

Kawasaki 18088-7007

PIPE-EXHAUST
(Superseded to 18049-7003)

$119.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7002

SLEEVE

$2.49

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7013

MUFFLER-COMP
(Superseded to 49070-7004)

$234.99

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, only 2 left!

0

92072A

Kawasaki 92072-7013

BAND

$8.99

$

In Stock, only 1 left!

0

92171

Kawasaki 92171-7002

CLAMP

$6.99

$

Usually ships in 2-5 days

0

92171B

Kawasaki 92171-7013

CLAMP
(Superseded to 921737003)

$2.49

$

In Stock, Qty 15

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 15

0

92191

Kawasaki 92191-7006

TUBE

$

$

Not available

92210

Kawasaki 92210-7004

NUT,M6

$3.49

$

In Stock, Qty 14

0

92210A

Kawasaki 92210-7019

NUT

$6.99

$

In Stock, only 4 left!

0

92210B

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, only 3 left!

0

130

Kawasaki 130AA06105

BOLT-FLANGED,6X105
(Superseded to 130B06105)

$2.49

$

In Stock, only 2 left!

0

130B

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

172

Kawasaki 172BA0690

BOLT-STUD,6X90
(Superseded to 172G0690)

$2.99

$

In Stock, only 2 left!

0

233

Kawasaki 233AA0416

SCREW-PAN-WP+-,4X16
(Superseded to 233B0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)

$0.99

$

In Stock, Qty 10

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
