FH680V-DS25 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

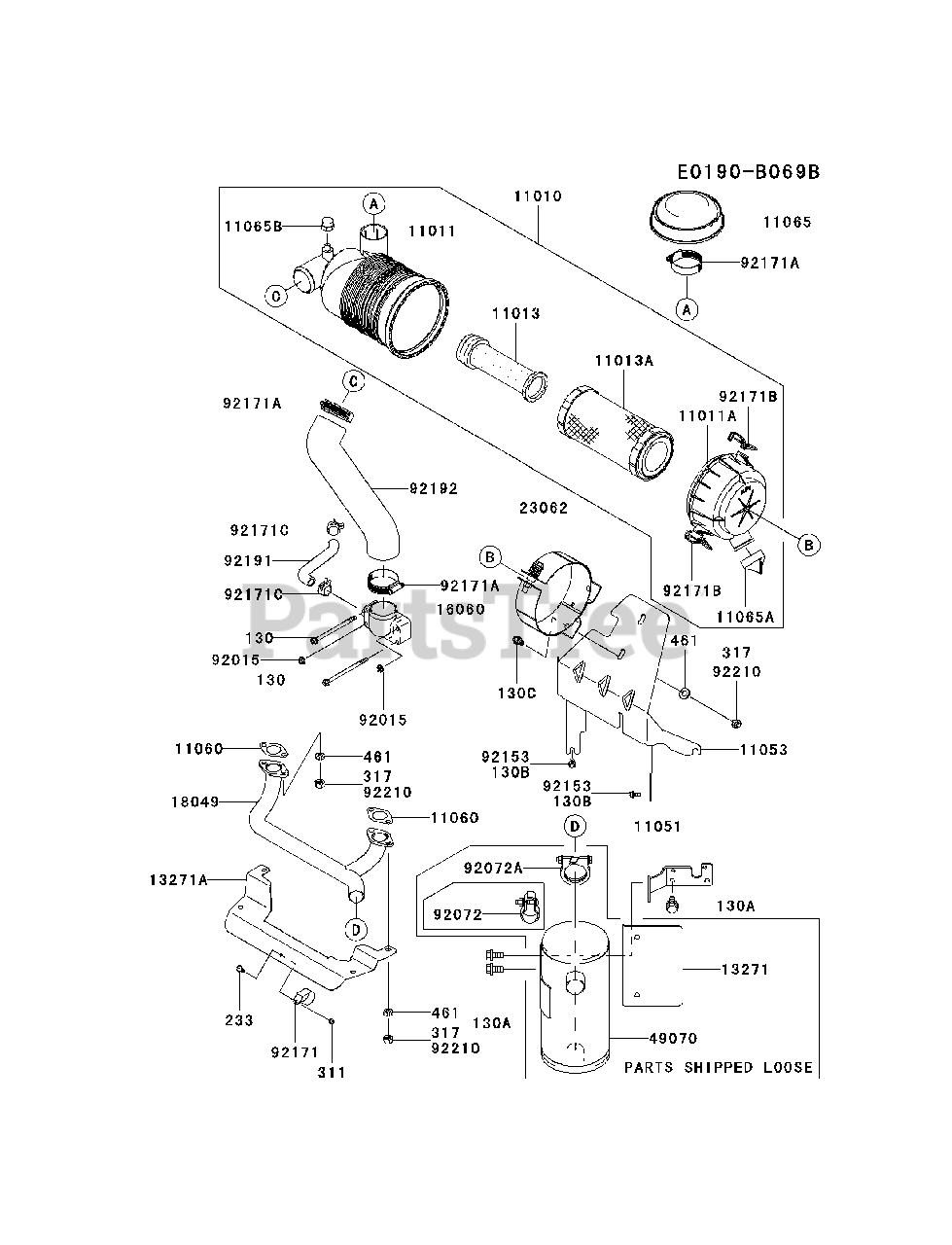

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7011

FILTER-ASSY-AIR
(Superseded to 11010-7032)

$

$

Not available

11011

Kawasaki 11011-7013

CASE-AIR FILTER
(Superseded to 11011-7059)

$75.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7014

CASE-AIR FILTER

$54.99

$

In Stock, only 2 left!

0

11013

Kawasaki 11013-7019

ELEMENT-AIR FILTER

$31.99

$

In Stock, only 2 left!

0

11013A

Kawasaki 11013-7020

ELEMENT-AIR FILTER

$28.99

$

In Stock, only 2 left!

0

11051

Kawasaki 11051-7002-9H

BRACKET

$10.99

$

Usually ships in 2-5 days

0

11053

Kawasaki 11053-7016

BRACKET
(Superseded to 11053-7001)

$73.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, only 3 left!

0

11065A

Kawasaki 11065-7008

CAP

$19.99

$

In Stock, Qty 5

0

11065B

Kawasaki 11065-7009

CAP

$10.99

$

In Stock, only 1 left!

0

13271

Kawasaki 13271-7008-9X

PLATE

$22.99

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-7009-9X

PLATE
(Superseded to 13271-7009)

$42.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7021

PIPE-INTAKE
(Superseded to 16060-7041)

$

$

Not available

18049

Kawasaki 18049-7003

PIPE-EXHAUST
(Superseded to 18088-7007)

$119.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-7009

BRACKET-COMP

$44.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7013

MUFFLER-COMP
(Superseded to 49070-7004)

$234.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92072

Kawasaki 92072-7009

BAND
(Superseded to 92072-7013)

$8.99

$

In Stock, only 1 left!

0

92072A

Kawasaki 92072-7013

BAND

$8.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92171

Kawasaki 92171-7002

CLAMP

$6.99

$

Usually ships in 2-5 days

0

92171A

Kawasaki 92171-7007

CLAMP
(Superseded to 92173-7010)

$8.49

$

In Stock, Qty 14

0

92171B

Kawasaki 92171-7009

CLAMP

$12.99

$

In Stock, Qty 7

0

92171C

Kawasaki 92171-7013

CLAMP
(Superseded to 921737003)

$2.49

$

In Stock, Qty 15

0

92191

Kawasaki 92191-7006

TUBE

$

$

Not available

92192

Kawasaki 92192-7030

TUBE

$53.99

$

In Stock, only 1 left!

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, only 3 left!

0

130

Kawasaki 130AA06105

BOLT-FLANGED,6X105
(Superseded to 130B06105)

$2.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 18

0

130C

Kawasaki 130B0814

BOLT-FLANGED,8X14

$

$

Not available

233

Kawasaki 233AA0416

SCREW-PAN-WP+-,4X16
(Superseded to 233B0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)

$0.99

$

In Stock, Qty 10

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
