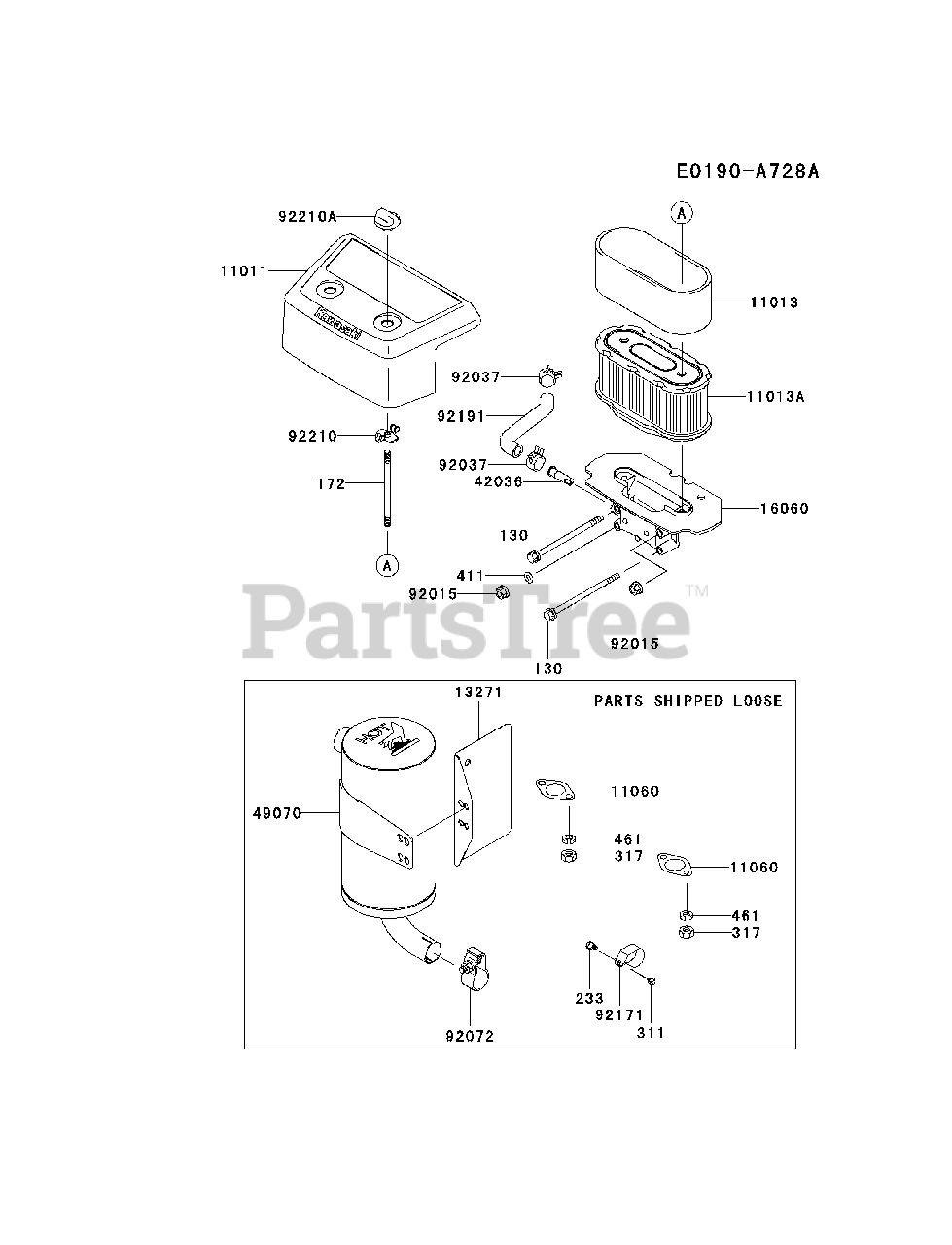

FH680V-DS08 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7003

CASE-AIR FILTER
(Superseded to 11011-6001)

$26.99

$

In Stock, only 2 left!

0

11013

Kawasaki 11013-7009

ELEMENT-AIR FILTER
(Superseded to 11013-7003)

$7.49

$

In Stock, Qty 11

0

11013A

Kawasaki 11013-7027

ELEMENT-AIR FILTER

$23.99

$

In Stock, Qty 20+

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7008-9X

PLATE

$22.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7001

PIPE-INTAKE
(Superseded to 16060-6005)

$41.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7002

SLEEVE

$2.49

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7014

MUFFLER-COMP
(Superseded to 49070-7005)

$237.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92037

Kawasaki 92037-2079

CLAMP
(Superseded to 92173-7003)

$2.49

$

In Stock, Qty 15

0

92072

Kawasaki 92072-7009

BAND
(Superseded to 92072-7013)

$8.99

$

In Stock, only 1 left!

0

92171

Kawasaki 92171-7002

CLAMP

$6.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-7006

TUBE

$

$

Not available

92210

Kawasaki 92210-7004

NUT

$3.49

$

In Stock, Qty 13

0

92210A

Kawasaki 92210-7015

NUT
(Superseded to 11011-6001)

$26.99

$

In Stock, only 2 left!

0

130

Kawasaki 130B06105

BOLT-FLANGED
(Superseded to 130AA06105)

$2.49

$

In Stock, only 2 left!

0

172

Kawasaki 172G0690

BOLT-STUD
(Superseded to 172BA0690)

$2.99

$

In Stock, only 2 left!

0

233

Kawasaki 233B0416

SCREW-PAN-WP+-
(Superseded to 233AA0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311B0400

NUT-HEX
(Superseded to 311AA0400)

$0.99

$

In Stock, Qty 10

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0
