FH680V-AS28 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

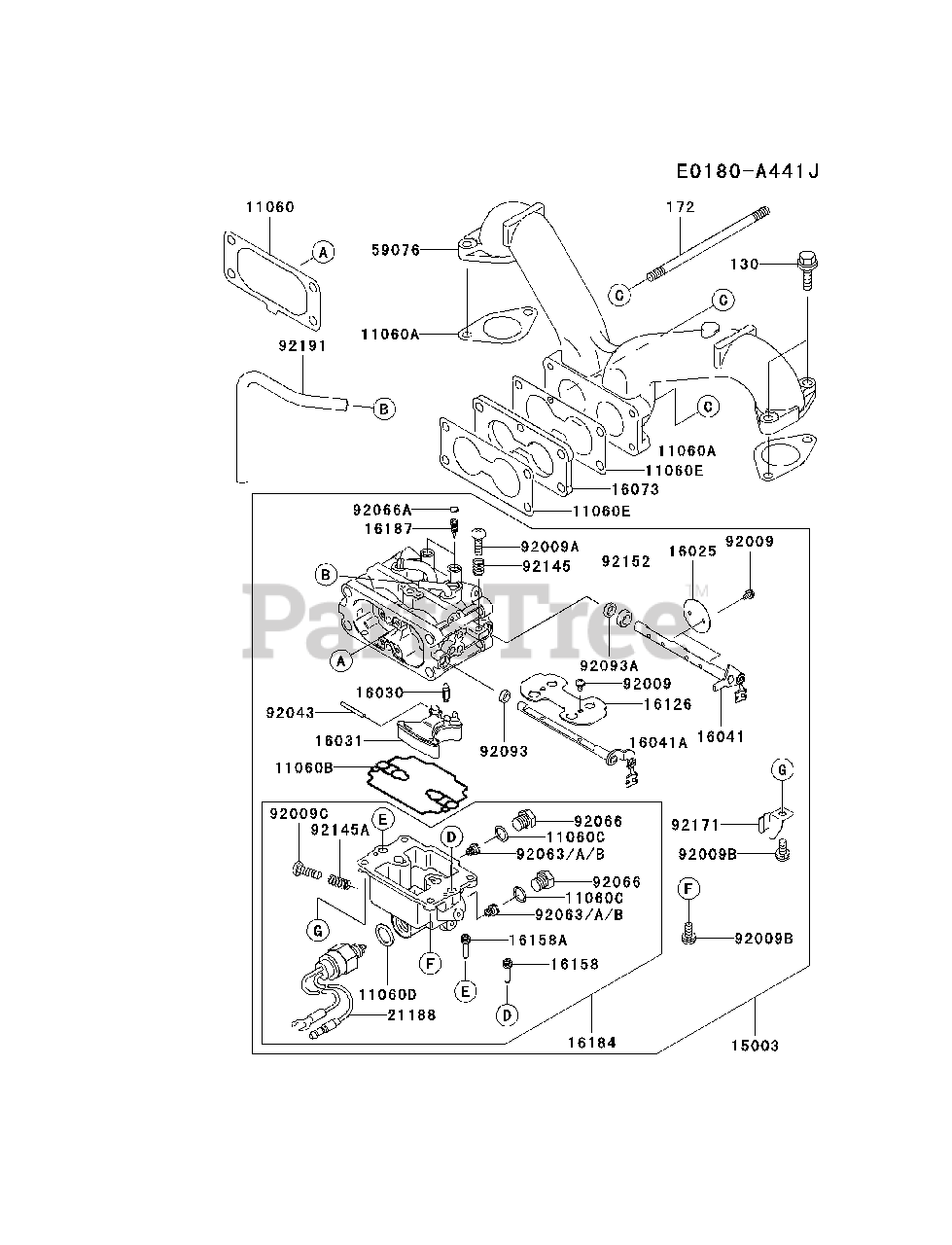

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 11060-7009

GASKET,AIR FILTER

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7011

GASKET,MANIFOLD

$2.49

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7018

GASKET,FLOAT CHAMBER

$1.49

$

In Stock, Qty 20+

0

11060C

Kawasaki 11060-7019

GASKET,MAIN PLUG

$1.49

$

In Stock, Qty 12

0

11060D

Kawasaki 11060-7020

GASKET,SOLENOID

$0.99

$

In Stock, Qty 9

0

11060E

Kawasaki 11060-7024

GASKET,CARBURETOR

$11.99

$

In Stock, Qty 20+

0

15003

Kawasaki 15003-7073

CARBURETOR-ASSY

$469.99

$

Usually ships in 2-5 days

0

16025

Kawasaki 16025-7003

VALVE-THROTTLE

$25.99

$

Usually ships in 2-5 days

0

16030

Kawasaki 16030-7002

VALVE-FLOAT

$18.99

$

In Stock, Qty 20+

0

16031

Kawasaki 16031-7001

FLOAT

$29.99

$

In Stock, Qty 6

0

16041

Kawasaki 16041-7004

SHAFT-CARBURETOR

$

$

Not available

16041A

Kawasaki 16041-7007

SHAFT-CARBURETOR,CHOKE
(Superseded to 16041-7059)

$41.99

$

In Stock, Qty 7

0

16073

Kawasaki 16073-7005

INSULATOR

$4.49

$

In Stock, Qty 20+

0

16126

Kawasaki 16126-7004

VALVE,CHOKE

$6.49

$

Usually ships in 2-5 days

0

16158

Kawasaki 16158-7007

JET-SLOW,#44

$

$

Not available

16158A

Kawasaki 16158-7008

JET-SLOW,#42

$24.99

$

In Stock, only 2 left!

0

16184

Kawasaki 16184-7010

CHAMBER-ASSY-FLOAT

$

$

Not available

16187

Kawasaki 16187-7002

NEEDLE-JET

$13.99

$

In Stock, only 2 left!

0

21188

Kawasaki 21188-7001

SOLENOID

$172.99

$

In Stock, only 2 left!

0

59076

Kawasaki 59076-7002

MANIFOLD-INTAKE
(Superseded to 59076-7011)

$125.99

$

In Stock, Qty 10

0

92009

Kawasaki 92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7004

SCREW

$1.49

$

In Stock, only 4 left!

0

92009B

Kawasaki 92009-7005

SCREW

$1.49

$

In Stock, Qty 17

0

92009C

Kawasaki 92009-7006

SCREW,DRAIN

$1.49

$

In Stock, only 3 left!

0

92043

Kawasaki 92043-7004

PIN,FLOAT

$6.99

$

In Stock, only 3 left!

0

92063

Kawasaki 92063-7012

JET-MAIN,#108,6560FT

$21.99

$

Usually ships in 2-5 days

0

92063A

Kawasaki 92063-7038

JET-MAIN,#114

$30.99

$

In Stock, only 2 left!

0

92063B

Kawasaki 92063-7043

JET-MAIN,#111,3280FT

$30.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-7008

PLUG,MAIN JET

$4.49

$

In Stock, only 1 left!

0

92066A

Kawasaki 92066-7009

PLUG,EXPANSION

$7.99

$

In Stock, Qty 12

0

92093

Kawasaki 92093-7001

SEAL,D=5.9

$2.49

$

In Stock, Qty 12

0

92093A

Kawasaki 92093-7002

SEAL,D=6.9

$2.49

$

In Stock, Qty 17

0

92145

Kawasaki 92145-7010

SPRING

$2.49

$

Usually ships in 2-5 days

0

92145A

Kawasaki 92145-7011

SPRING

$2.49

$

Usually ships in 2-5 days

0

92152

Kawasaki 92152-7001

COLLAR

$11.99

$

Usually ships in 2-5 days

0

92171

Kawasaki 92171-7001

CLAMP

$

$

Not available

92191

Kawasaki 92191-7023

TUBE,4.76X7.94X215

$

$

Not available

130

Kawasaki 130B0620

BOLT-FLANGED
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

172

Kawasaki 172G06105

BOLT-STUD
(Superseded to 172BA06105)

$4.49

$

In Stock, only 2 left!

0
