FH680V-AS24 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

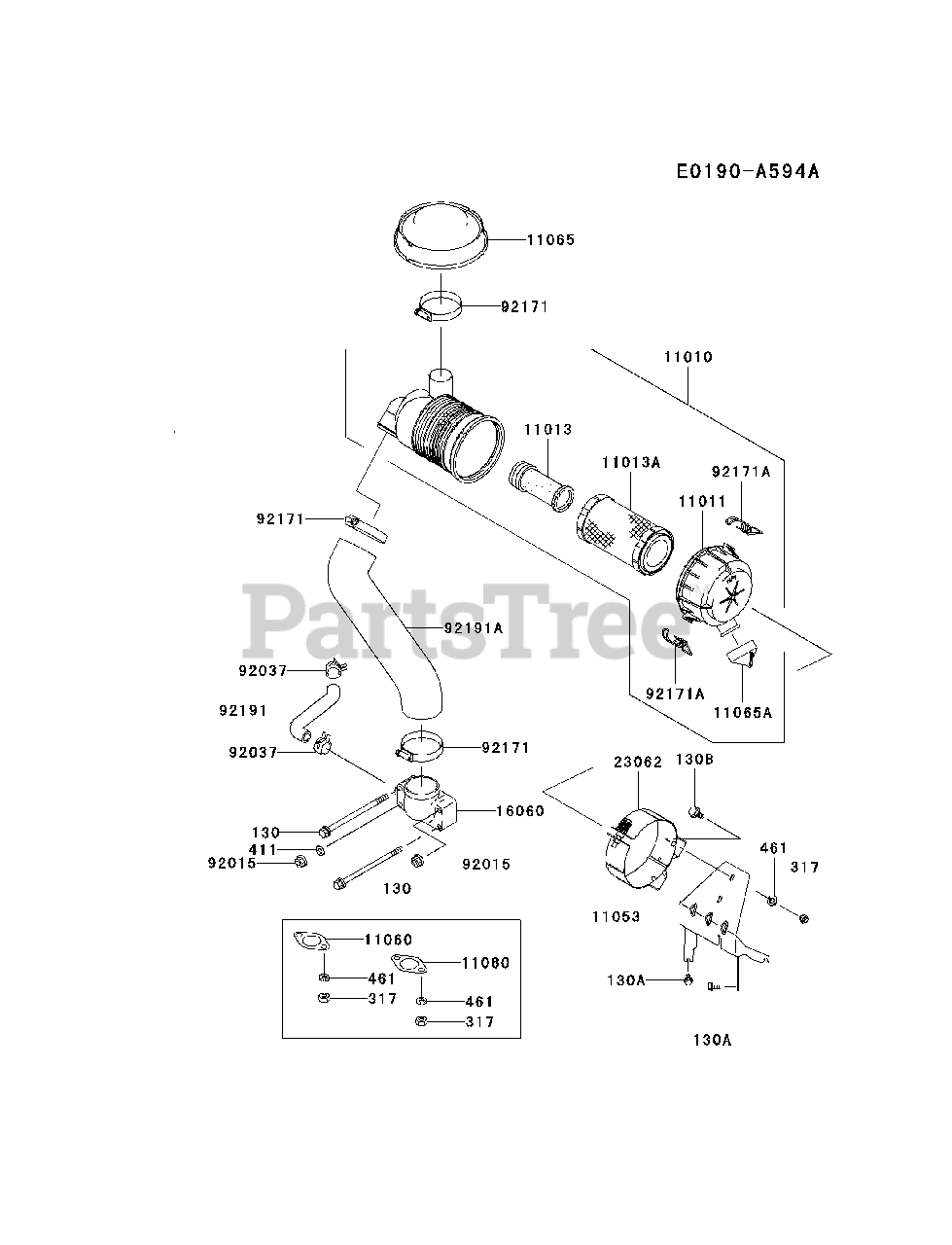

AIR-FILTER/MUFFLER Parts Diagram

  • Title

130

Kawasaki 130B06105

BOLT-FLANGED
(Superseded to 130AA06105)

$2.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 15

0

130B

Kawasaki 130B0816

BOLT-FLANGED
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 20+

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 18

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

11010

Kawasaki 11010-7004

FILTER-ASSY-AIR
(Superseded to 11010-7011)

$

$

Not available

11011

Kawasaki 11011-7014

CASE-AIR FILTER

$54.99

$

In Stock, only 1 left!

0

11013

Kawasaki 11013-7019

ELEMENT-AIR FILTER

$31.99

$

In Stock, only 2 left!

0

11013A

Kawasaki 11013-7020

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 14

0

11053

Kawasaki 11053-7001

BRACKET
(Superseded to 11053-7016)

$73.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7006

CAP
(Superseded to 11065-7025)

$41.99

$

In Stock, only 3 left!

0

11065A

Kawasaki 11065-7008

CAP

$19.99

$

In Stock, Qty 5

0

16060

Kawasaki 16060-7005

PIPE-INTAKE
(Superseded to 16060-7021)

$

$

Not available

23062

Kawasaki 23062-7009

BRACKET-COMP

$44.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 2 left!

0

92037

Kawasaki 92037-2079

CLAMP
(Superseded to 92173-7003)

$2.49

$

In Stock, Qty 15

0

92171

Kawasaki 92171-7007

CLAMP
(Superseded to 92173-7010)

$8.49

$

In Stock, Qty 14

0

92171A

Kawasaki 92171-7009

CLAMP

$12.99

$

In Stock, Qty 7

0

92191

Kawasaki 92191-7006

TUBE

$

$

Not available

92191A

Kawasaki 92191-7028

TUBE
(Superseded to 92192-7030)

$53.99

$

In Stock, only 1 left!

0
