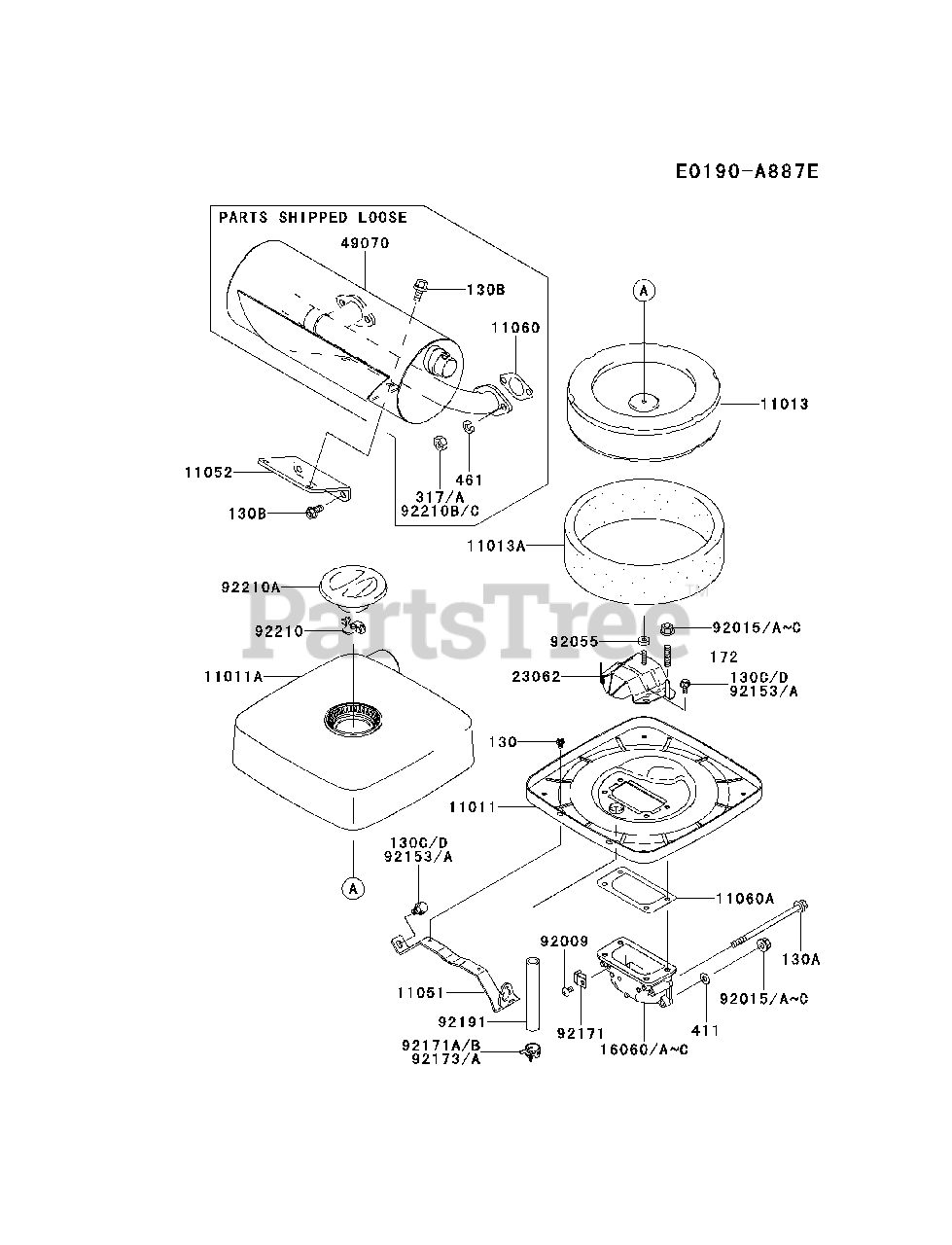

FH680D-FS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
130

Kawasaki 130AA0510

BOLT-FLANGED,5X10
(Superseded to 130B0510)

$1.49

$

In Stock, only 1 left!

0

130A

Kawasaki 130AA06105

BOLT-FLANGED,6X105
(Superseded to 130B06105)

$2.49

$

In Stock, only 2 left!

0

130B

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

172

Kawasaki 172BA0612

BOLT-STUD,6X12

$0.99

$

Usually ships in 2-5 days

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, only 2 left!

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0

11011

Kawasaki 11011-7004

CASE-AIR FILTER

$23.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7030

CASE-AIR FILTER

$

$

Not available

11013

Kawasaki 11013-7022

ELEMENT-AIR FILTER
(Superseded to 11013-0728)

$14.99

$

In Stock, only 1 left!

0

11013A

Kawasaki 11013-7023

ELEMENT-AIR FILTER
(Superseded to 11013-7007)

$14.99

$

In Stock, only 1 left!

0

11051

$7.49

$

Usually ships in 2-5 days

0

11052

$12.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7022

GASKET,A/C CASE

$2.99

$

In Stock, only 1 left!

0

16060

Kawasaki 16060-0732

PIPE-INTAKE

$

$

Not available

23062

Kawasaki 23062-7006

BRACKET-COMP

$6.49

$

In Stock, only 3 left!

0

49070

Kawasaki 49070-7009

MUFFLER-COMP

$356.99

$

Usually ships in 2-5 days

0

92009

$0.99

$

Usually ships in 2-5 days

0

92015B

$4.49

$

In Stock, only 2 left!

0

92055

$1.49

$

Usually ships in 2-5 days

0

92153

$

$

Not available

92171

$0.99

$

Usually ships in 2-5 days

0

92173

$2.49

$

In Stock, Qty 15

0

92191

Kawasaki 92191-7020

TUBE,12X18X115

$3.49

$

Usually ships in 2-5 days

0

92210

$3.49

$

In Stock, Qty 13

0

92210A

$

$

Not available

92210B

$1.99

$

In Stock, Qty 6

0
