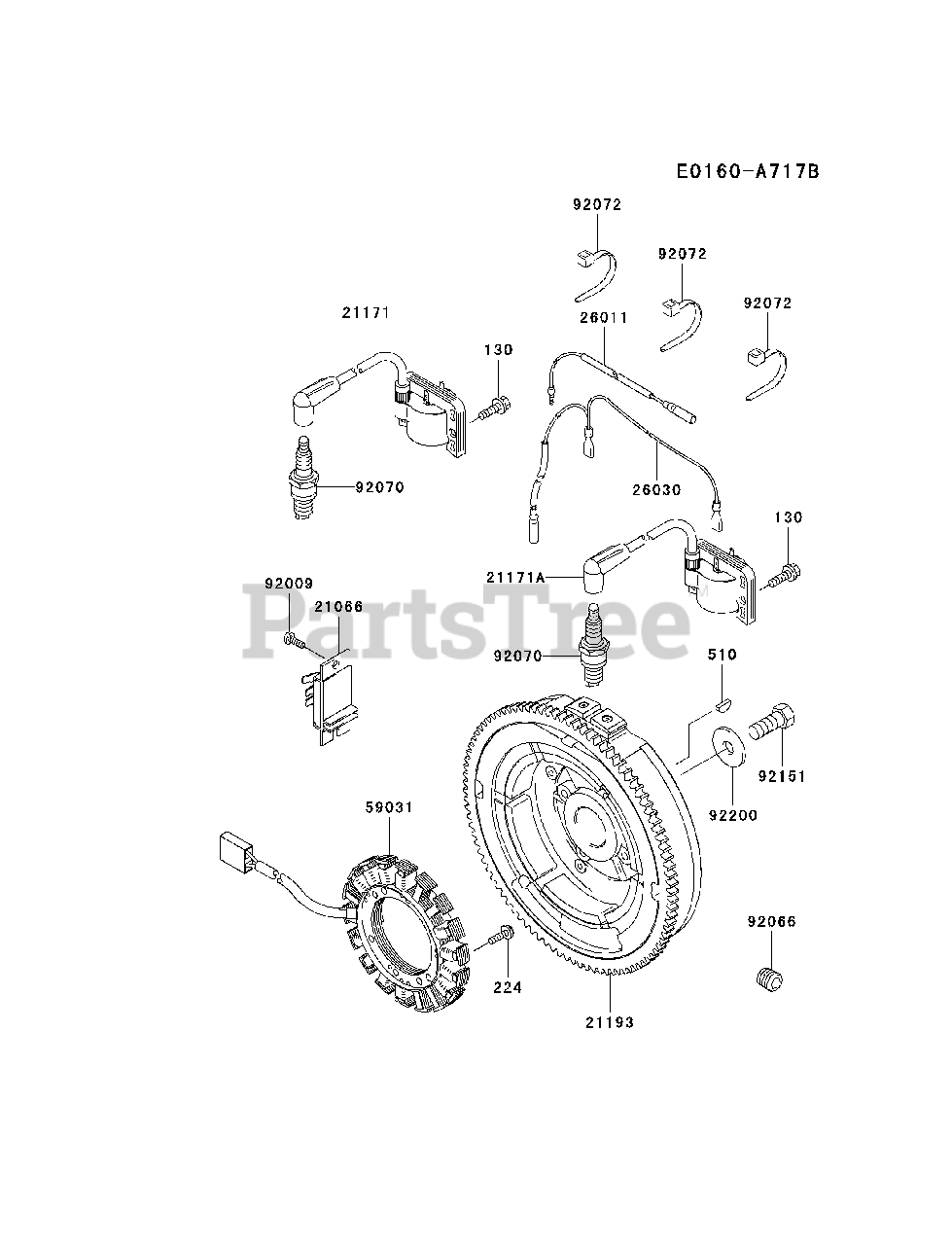

FH680D-AS01 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7003

REGULATOR-VOLTAGE
(Superseded to 21066-7011)

$77.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-7001

COIL-ASSY-IGNITION
(Superseded to 21171-7007)

$81.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 21171-7002

COIL-ASSY-IGNITION
(Superseded to 21171-7007)

$81.99

$

In Stock, Qty 20+

0

21193

Kawasaki 21193-7005

FLYWHEEL-ASSY
(Superseded to 21193-7014)

$

$

Not available

26011

Kawasaki 26011-7008

WIRE-LEAD,L=540

$3.49

$

In Stock, only 4 left!

0

26030

Kawasaki 26030-7002

HARNESS

$10.99

$

In Stock, Qty 12

0

59031

Kawasaki 59031-7001

COIL-CHARGING
(Superseded to 59031-7009)

$128.99

$

In Stock, Qty 18

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Kawasaki 92066-7002

PLUG
(Superseded to 92066-0881)

$4.49

$

In Stock, Qty 6

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.49

$

In Stock, only 2 left!

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 7

0

92151

Kawasaki 92151-2097

BOLT,12X30
(Superseded to 921547003)

$4.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0

130

Kawasaki 130B0620

BOLT-FLANGED
(Superseded to 130AA0620)

$3.49

$

In Stock, Qty 20+

0

224

Kawasaki 224B0520

SCREW-PAN-WP-CROS
(Superseded to 224AA0520)

$0.99

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
