FH661V-AS05 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

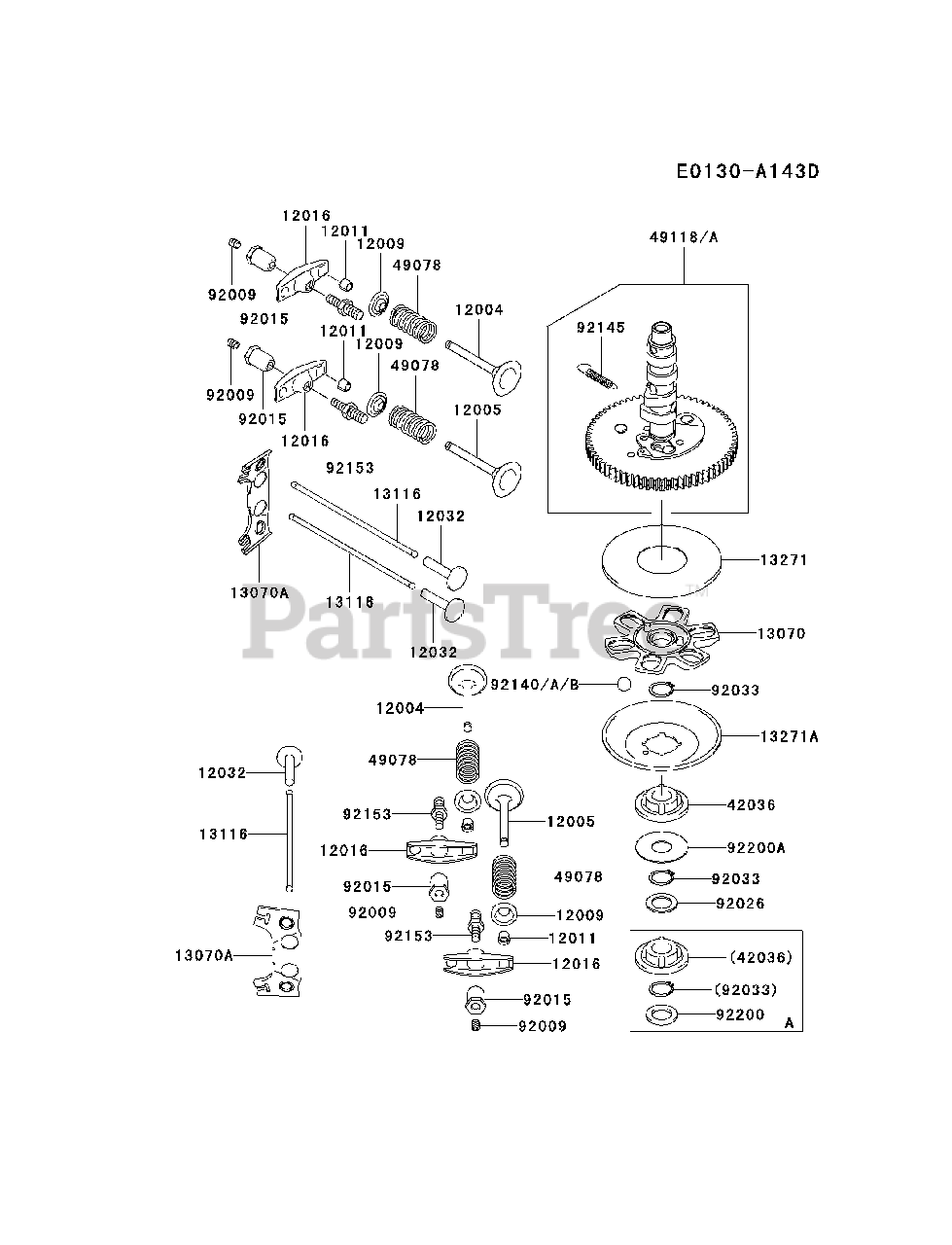

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-7002

VALVE-INTAKE

$18.99

$

In Stock, only 2 left!

0

12005

Kawasaki 12005-7004

VALVE-EXHAUST
(Superseded to 12005-7002)

$43.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 5

0

12011

Kawasaki 12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-7007

ARM-ROCKER
(Superseded to 12016-7002)

$7.99

$

In Stock, Qty 20+

0

12032

Kawasaki 12032-7001

TAPPET

$8.99

$

In Stock, only 3 left!

0

13070

Kawasaki 13070-7004

GUIDE
(Superseded to 13070-7002)

$5.99

$

In Stock, only 2 left!

0

13070A

Kawasaki 13070-7007

GUIDE
(Superseded to 13070-7003)

$4.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 13116-7002

ROD-PUSH
(Superseded to 13116-7001)

$4.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7007

PLATE
(Superseded to 13270-7003)

$5.49

$

In Stock, only 3 left!

0

13271A

Kawasaki 13271-7021

PLATE,GOVERNOR
(Superseded to 13270-7002)

$5.49

$

In Stock, Qty 13

0

42036

Kawasaki 42036-7010

SLEEVE
(Superseded to 42036-7009)

$5.99

$

In Stock, only 1 left!

0

49078

Kawasaki 49078-7002

SPRING-ENGINE VALVE,IN

$6.99

$

In Stock, only 4 left!

0

49118

Kawasaki 49118-7007

CAMSHAFT-COMP
(Superseded to 99999-7074)

$109.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2341

SCREW

$2.49

$

In Stock, only 3 left!

0

92015

Kawasaki 92015-2253

NUT

$4.49

$

In Stock, only 4 left!

0

92033

Kawasaki 92033-7001

RING-SNAP
(Superseded to 92033-0727)

$0.99

$

In Stock, only 2 left!

0

92140

Kawasaki 92140-7002

BALL
(Superseded to 92140-7005)

$

$

Not available

92140B

Kawasaki 92140-7005

BALL

$

$

Not available

92145

Kawasaki 92145-7001

SPRING
(Superseded to 921451653)

$1.49

$

In Stock, only 4 left!

0

92153

Kawasaki 92153-7019

BOLT

$2.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7001

WASHER

$1.99

$

In Stock, Qty 11

0
