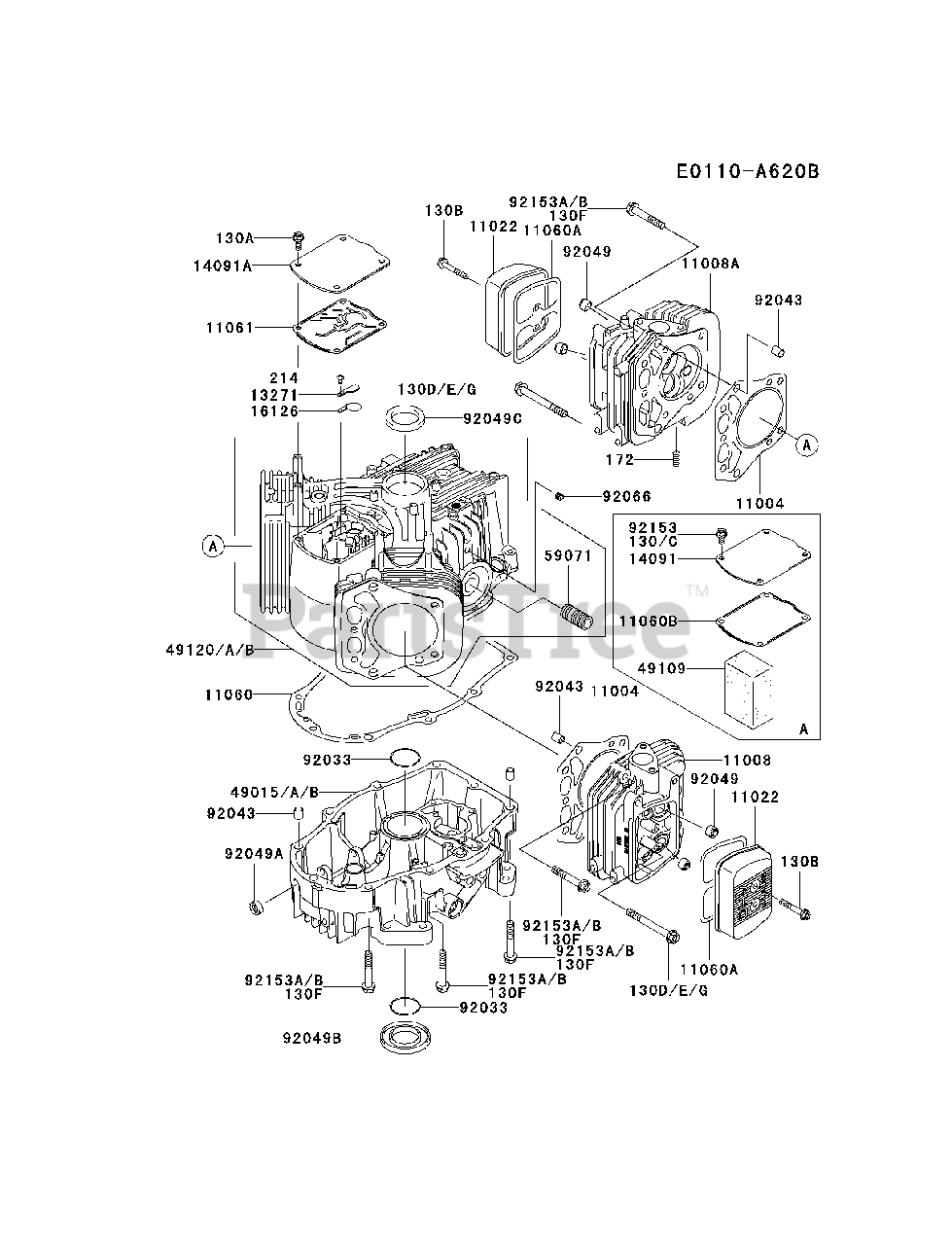

FH661V-AS05 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-7006

GASKET-HEAD
(Superseded to 11004-7004)

$10.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-7023

HEAD-COMP-CYLINDER,#2
(Superseded to 11008-7012)

$278.99

$

In Stock, only 1 left!

0

11008A

Kawasaki 11008-7024

HEAD-COMP-CYLINDER,#1
(Superseded to 11008-7013)

$277.99

$

In Stock, only 2 left!

0

11022

Kawasaki 11022-7002

CASE-ROCKER
(Superseded to 11022-7029)

$14.99

$

In Stock, only 1 left!

0

11060

Kawasaki 11060-7012

GASKET,CRANKCASE COVER
(Superseded to 11061-7098)

$48.99

$

In Stock, Qty 19

0

11060A

Kawasaki 11060-7013

GASKET,ROCKER CASE

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 11060-7014

GASKET,BREATHER

$6.49

$

In Stock, only 4 left!

0

13271

Kawasaki 13271-7006

PLATE

$1.49

$

In Stock, only 3 left!

0

14091

Kawasaki 14091-7004

COVER

$3.99

$

In Stock, Qty 10

0

16126

Kawasaki 16126-7001

VALVE

$2.49

$

In Stock, only 4 left!

0

49015

Kawasaki 49015-7039

COVER-CRANKCASE
(Superseded to 49015-7064)

$199.99

$

Usually ships in 2-5 days

0

49015B

Kawasaki 49015-7064

COVER-CRANKCASE
(Superseded to 49015-6260)

$199.99

$

Usually ships in 2-5 days

0

49109

Kawasaki 49109-7003

ELEMENT-BREATHER
(Superseded to 99999-7072)

$14.99

$

In Stock, only 2 left!

0

49120

Kawasaki 49120-7037

CRANKCASE-COMP
(Superseded to 49120-7092)

$563.99

$

Usually ships in 2-5 days

0

49120B

Kawasaki 49120-7092

CRANKCASE-COMP
(Superseded to 49120-0881)

$563.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

92033

Kawasaki 92033-7004

RING-SNAP

$0.99

$

In Stock, Qty 12

0

92043

Kawasaki 92043-7001

PIN

$0.99

$

In Stock, Qty 7

0

92049

Kawasaki 92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7005

SEAL-OIL,SO 8X14X5 HS
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7011

SEAL-OIL,SD 35X62X8 L HS

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7014

SEAL-OIL,SD 35X52X7 R HS

$3.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7002

PLUG
(Superseded to 92066-0881)

$4.49

$

In Stock, Qty 6

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92153B

Kawasaki 92153-7054

BOLT,8X50

$2.99

$

In Stock, Qty 5

0

130

Kawasaki 130AA0612

BOLT-FLANGED,6X12
(Superseded to 130B0612)

$0.99

$

In Stock, Qty 15

0

130B

Kawasaki 130AA0640

BOLT-FLANGED,6X40
(Superseded to 130B0640)

$0.99

$

In Stock, only 3 left!

0

130C

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 15

0

130E

Kawasaki 130CA0875

BOLT-FLANGED,8X75
(Superseded to 130T0875)

$2.49

$

In Stock, Qty 9

0

130F

Kawasaki 130T0850

BOLT-FLANGED,8X50
(Superseded to 130CA0850)

$1.99

$

In Stock, Qty 6

0

130G

Kawasaki 130T0875

BOLT-FLANGED,8X75
(Superseded to 130CA0875)

$2.49

$

In Stock, Qty 9

0

172

Kawasaki 172BA0818

BOLT-STUD,8X18

$1.99

$

In Stock, only 3 left!

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 5

0
