FH641V-GS22 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

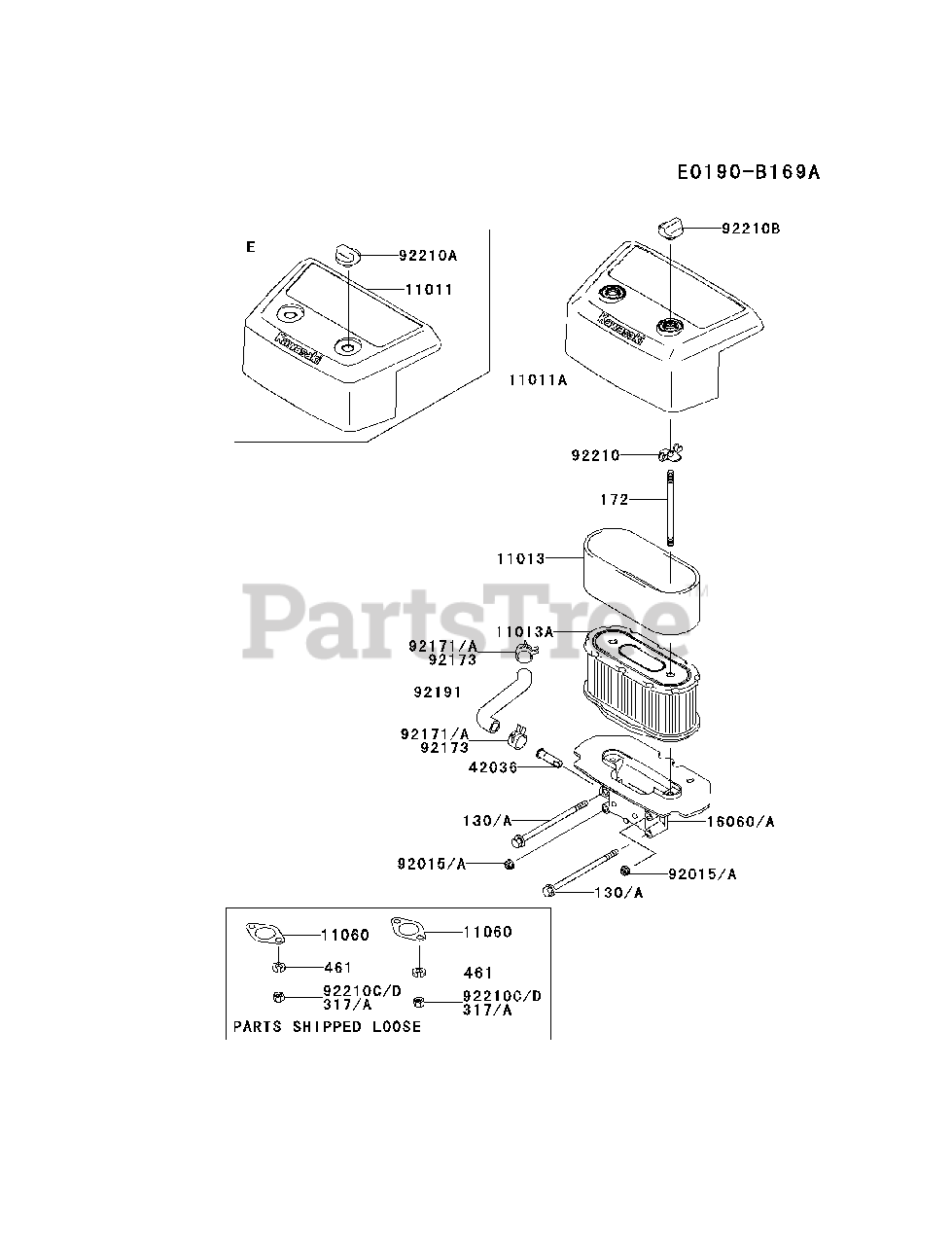

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011A

Kawasaki 11011-7042

CASE-AIR FILTER

$29.99

$

In Stock, only 2 left!

0

11013

Kawasaki 11013-7009

ELEMENT-AIR FILTER
(Superseded to 11013-7003)

$7.49

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7027

ELEMENT-AIR FILTER

$23.99

$

In Stock, Qty 20+

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

16060A

Kawasaki 16060-7032

PIPE-INTAKE

$39.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7002

SLEEVE

$2.49

$

Usually ships in 2-5 days

0

92015A

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, Qty 20+

0

92171A

Kawasaki 92171-7013

CLAMP
(Superseded to 921737003)

$2.49

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 20+

0

92191

Kawasaki 92191-7006

TUBE

$

$

Not available

92210

Kawasaki 92210-7004

NUT,M6

$3.49

$

In Stock, Qty 20+

0

92210B

Kawasaki 92210-7019

NUT

$6.99

$

In Stock, Qty 20+

0

92210C

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA06105

BOLT-FLANGED,6X105
(Superseded to 130B06105)

$2.49

$

In Stock, Qty 7

0

172

Kawasaki 172BA0690

BOLT-STUD,6X90
(Superseded to 172G0690)

$2.99

$

In Stock, Qty 12

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
