FH641V-DS29 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

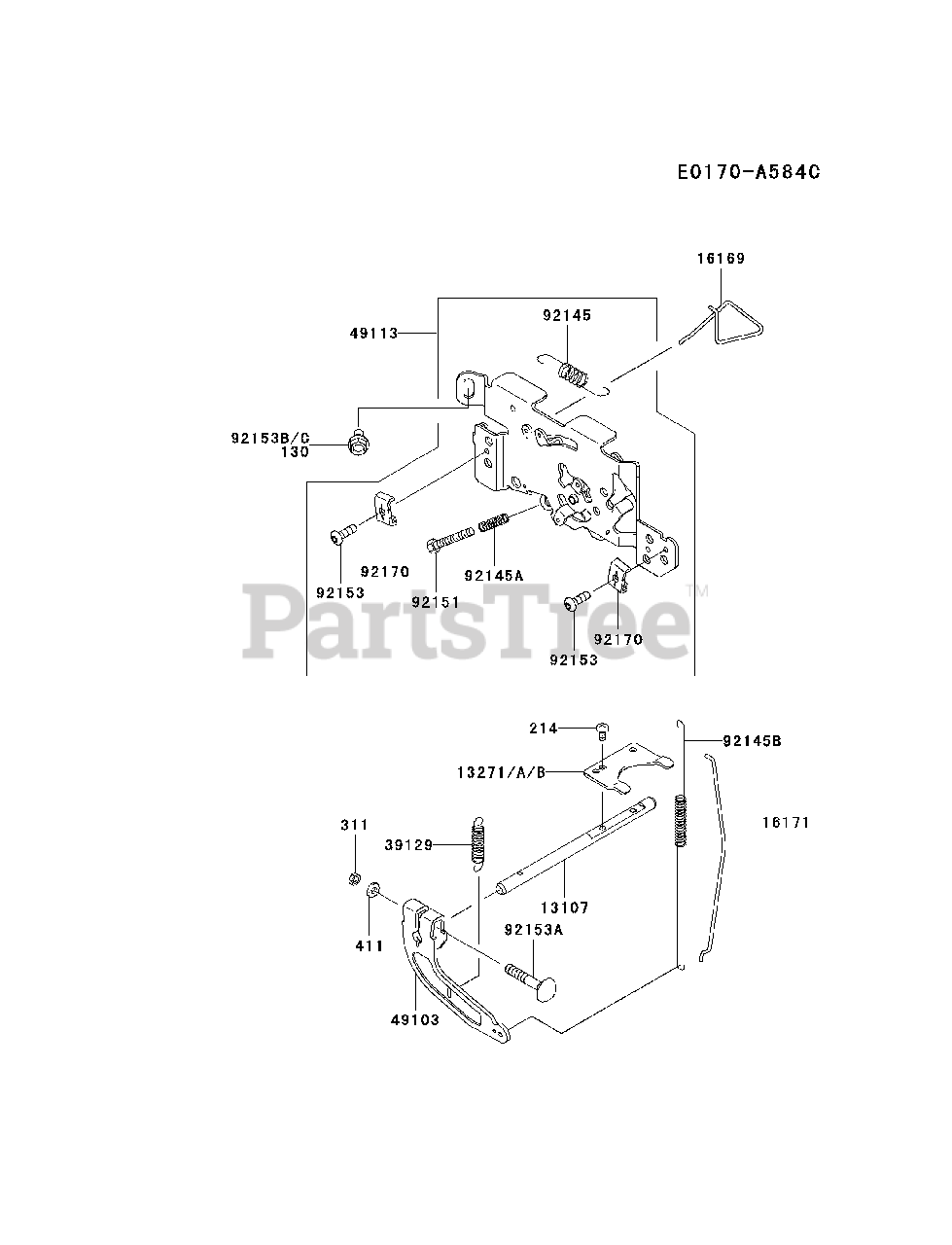

CONTROL-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-7013

SHAFT
(Superseded to 13107-0751)

$12.99

$

In Stock, Qty 6

0

13271A

Kawasaki 13271-7032

PLATE
(Superseded to 13271-7018)

$3.99

$

In Stock, Qty 6

0

16169

Kawasaki 16169-7006

LINK-CHOKE
(Superseded to 16169-7005)

$3.49

$

In Stock, Qty 20+

0

16171

Kawasaki 16171-7004

LINK
(Superseded to 16171-0040)

$2.49

$

In Stock, Qty 20+

0

39129

Kawasaki 39129-7004

SPRING-GOVERNOR

$5.49

$

In Stock, Qty 20+

0

49103

Kawasaki 49103-7004

ARM-GOVERNOR
(Superseded to 49103-7002)

$7.99

$

In Stock, Qty 12

0

49113

Kawasaki 49113-7021

PANEL-COMP-CONTROL
(Superseded to 49113-7019)

$26.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-7004

SPRING
(Superseded to 92145-7032)

$0.99

$

In Stock, Qty 20+

0

92145A

Kawasaki 92145-7005

SPRING

$0.99

$

In Stock, Qty 12

0

92145B

Kawasaki 92145-7034

SPRING

$3.49

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7014

BOLT,5X30

$1.49

$

In Stock, Qty 5

0

92153

Kawasaki 92153-7001

BOLT,SOCKET,5X16

$0.99

$

Usually ships in 2-5 days

0

92153A

Kawasaki 92153-7033

BOLT,6X35

$

$

Not available

92153B

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92170

Kawasaki 92170-7001

CLAMP

$2.99

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 11

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 12

0
