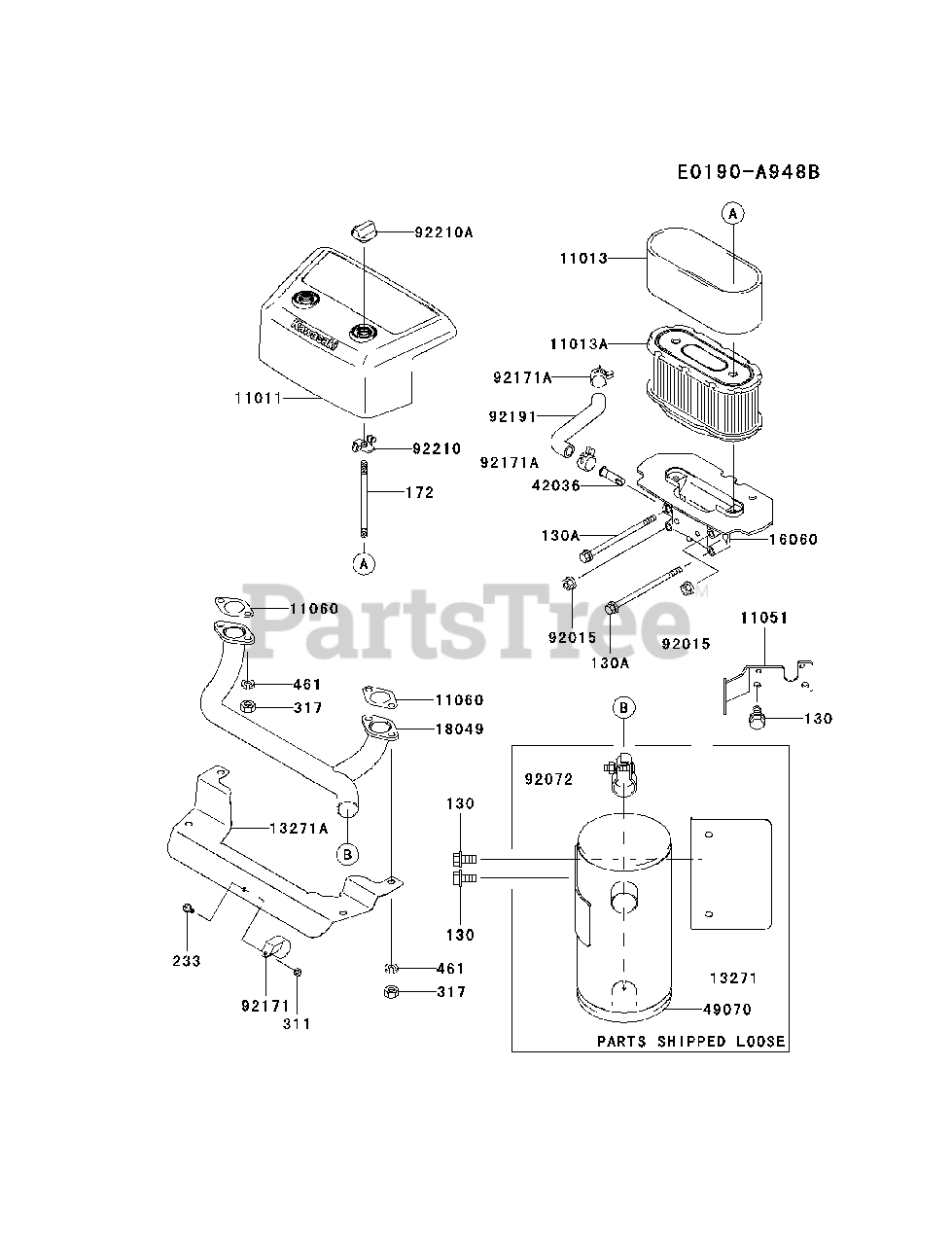

FH641V-DS10 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11011

Kawasaki 11011-7042

CASE-AIR FILTER

$29.99

$

In Stock, only 2 left!

0

11013

Kawasaki 11013-7009

ELEMENT-AIR FILTER
(Superseded to 11013-7003)

$7.49

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7027

ELEMENT-AIR FILTER

$23.99

$

In Stock, Qty 20+

0

11051

$10.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

$22.99

$

Usually ships in 2-5 days

0

13271A

Kawasaki 13271-7009-9X

PLATE
(Superseded to 13271-7009)

$42.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-7001

PIPE-INTAKE
(Superseded to 16060-6005)

$41.99

$

Usually ships in 2-5 days

0

18049

Kawasaki 18049-7003

PIPE-EXHAUST
(Superseded to 18088-7007)

$119.99

$

Usually ships in 2-5 days

0

42036

$2.49

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-7013

MUFFLER-COMP
(Superseded to 49070-7004)

$234.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7009

BAND
(Superseded to 92072-7013)

$8.99

$

In Stock, only 1 left!

0

92171

$6.99

$

Usually ships in 2-5 days

0

92171A

Kawasaki 92171-7013

CLAMP
(Superseded to 921737003)

$2.49

$

In Stock, Qty 20+

0

92191

$

$

Not available

92210

$3.49

$

In Stock, Qty 20+

0

92210A

$6.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B06105

BOLT-FLANGED,6X105
(Superseded to 130AA06105)

$2.49

$

In Stock, Qty 7

0

172

Kawasaki 172BA0690

BOLT-STUD,6X90
(Superseded to 172G0690)

$2.99

$

In Stock, Qty 12

0

233

Kawasaki 233AA0416

SCREW-PAN-WP+-,4X16
(Superseded to 233B0416)

$0.99

$

In Stock, Qty 6

0

311

Kawasaki 311AA0400

NUT-HEX,4MM
(Superseded to 311509-6152-00)

$0.99

$

In Stock, Qty 10

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 16

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
