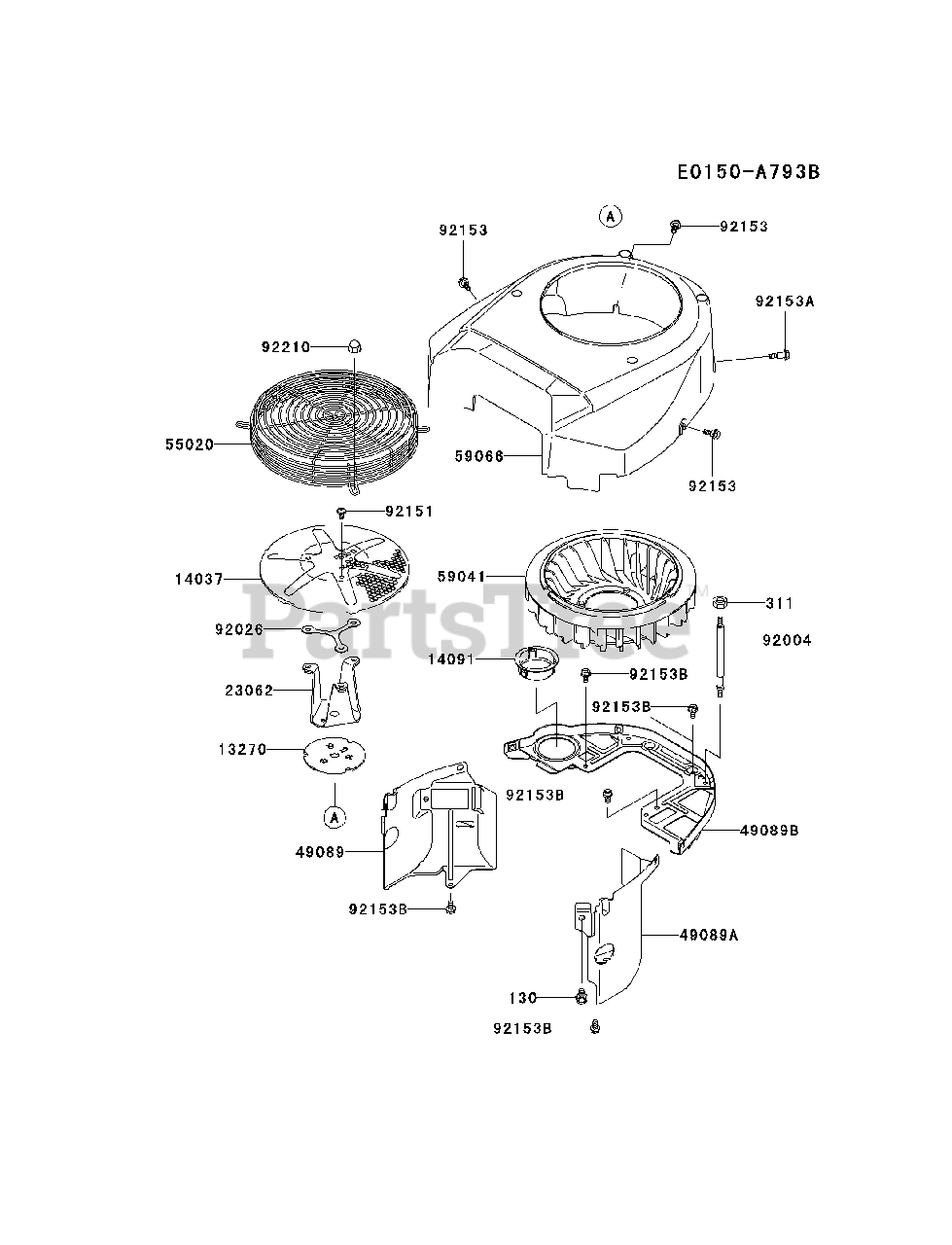

FH641V-BS33 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

13270

Kawasaki 13270-7007

PLATE

$5.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7008-9H

SCREEN
(Superseded to 14037-7008)

$35.99

$

In Stock, Qty 20+

0

14091

Kawasaki 14091-7002

COVER

$3.49

$

In Stock, Qty 11

0

23062

Kawasaki 23062-7005

BRACKET-COMP

$12.99

$

In Stock, Qty 20+

0

49089

Kawasaki 49089-7004

SHROUD-ENGINE

$27.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-7005

SHROUD-ENGINE

$29.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7049

SHROUD-ENGINE
(Superseded to 49089-7006)

$34.99

$

In Stock, Qty 8

0

55020

Kawasaki 55020-7007

GUARD
(Superseded to 55020-7002)

$53.99

$

In Stock, Qty 13

0

59041

Kawasaki 59041-7003

FAN

$22.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7004

HOUSING-FAN

$

$

Not available

92004

Kawasaki 92004-7006

STUD,6X123.5
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7008

BOLT

$

$

Not available

92153B

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92210

Kawasaki 92210-0003

NUT

$0.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0
